8. Click Calibrate.
9. Connect the signal generator to the phone, and set frequency and amplitude as instructed in the

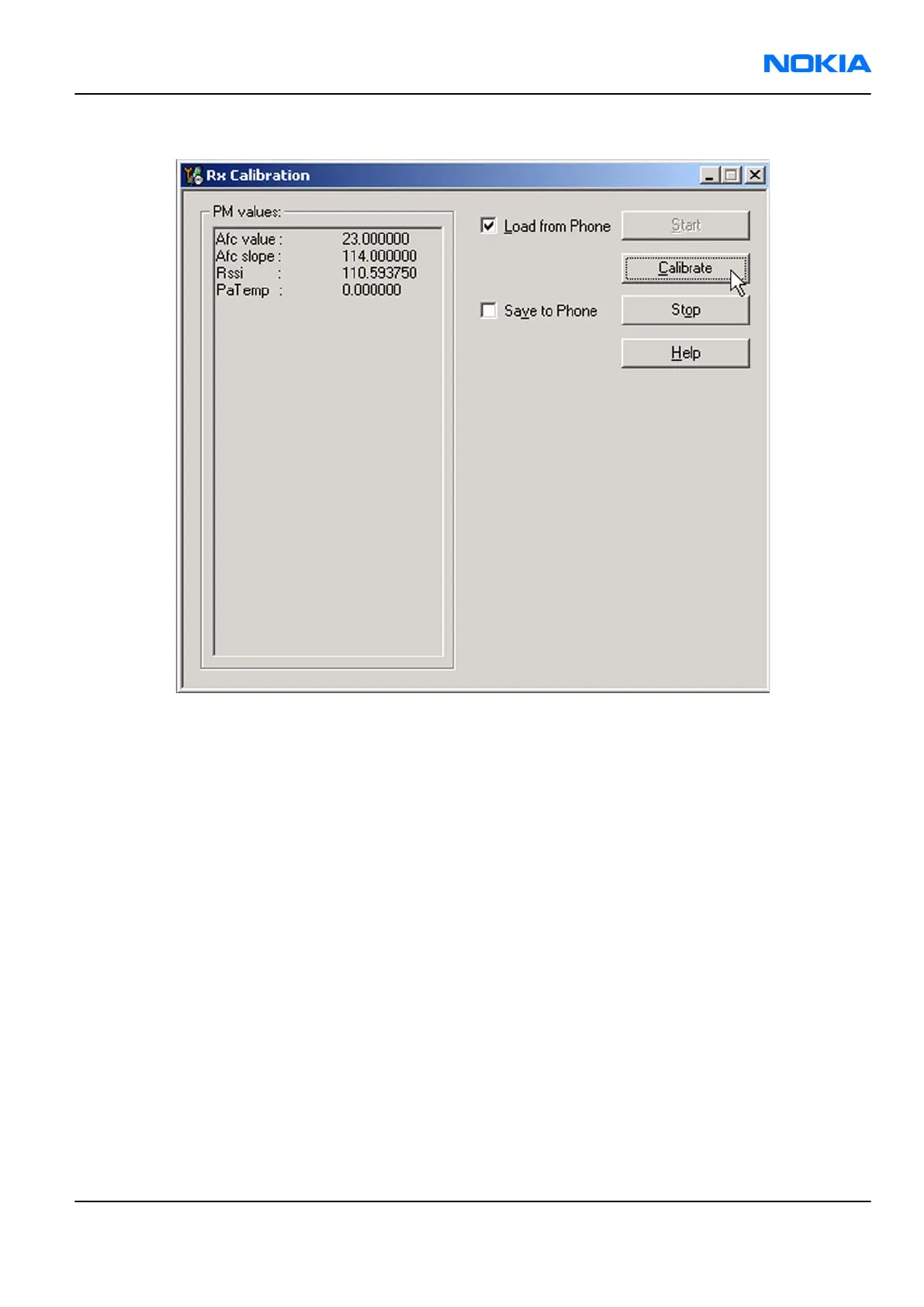

Rx Calibration with band EGSM900 pop-up window.
Important: The calibration uses a non-modulated CW signal. Increase the signal generator level by
cable attenuation and module jig probe attenuation.
RM-88
RF Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –23
Copyright © 2006 Nokia. All rights reserved.
