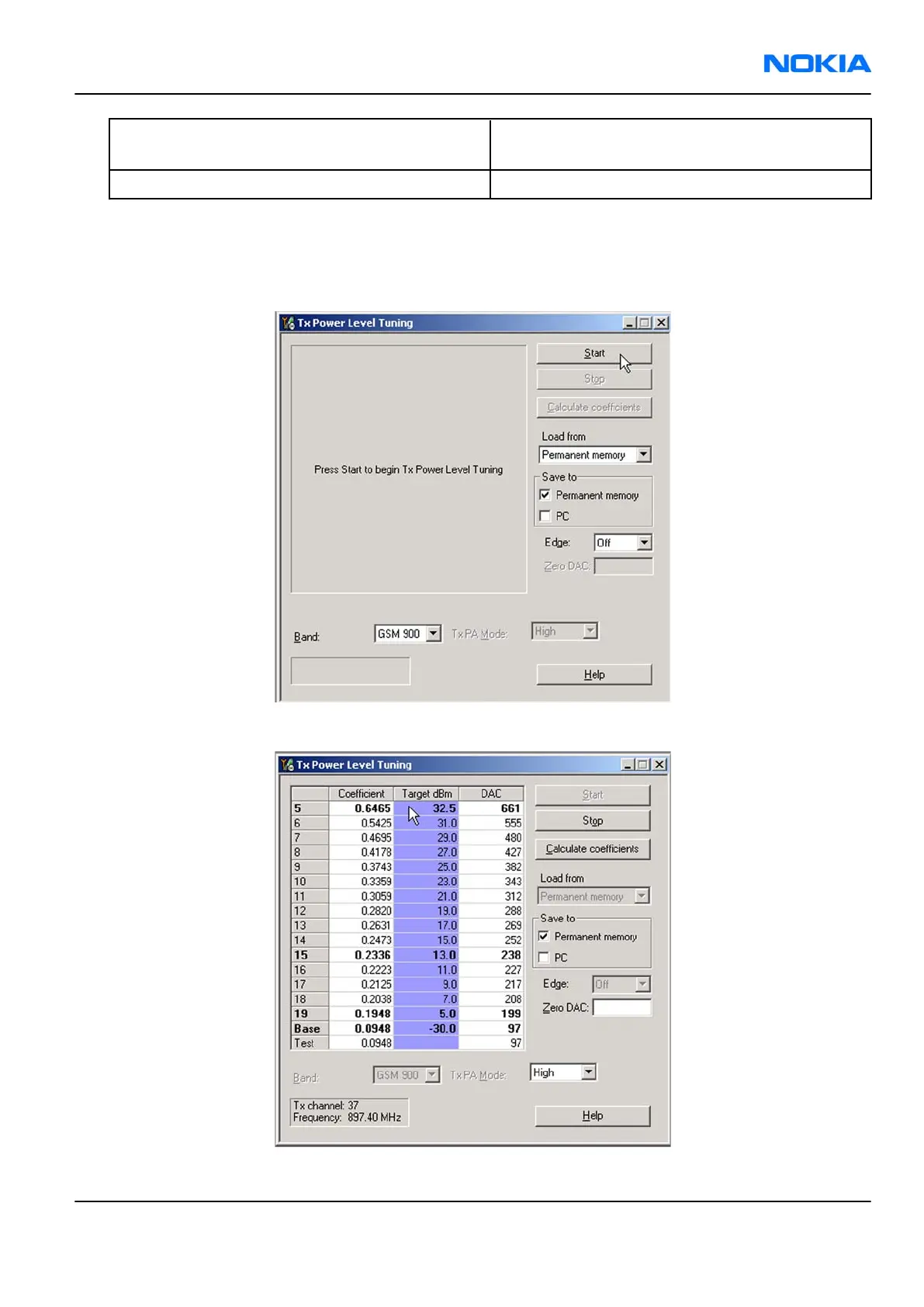

Reference level offset sum cable attenuation with module jig
attenuation
Reference level 33dBm
A power meter with a peak power detector can be also used. Remember to take the attenuations in the
account!
6. Click Start.
7. Adjust power levels 5, 15 and 19 to correspond the "Target dBm" column by pressing + or – keys.
RM-88
RF Troubleshooting and Manual Tuning Guide Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 7 –33
Copyright © 2006 Nokia. All rights reserved.
