Nokia E62 Service Manual

5. Wait until you are notified that update has been successful; the procedure will take a couple of minutes.
Click OK to close the Update Done window.

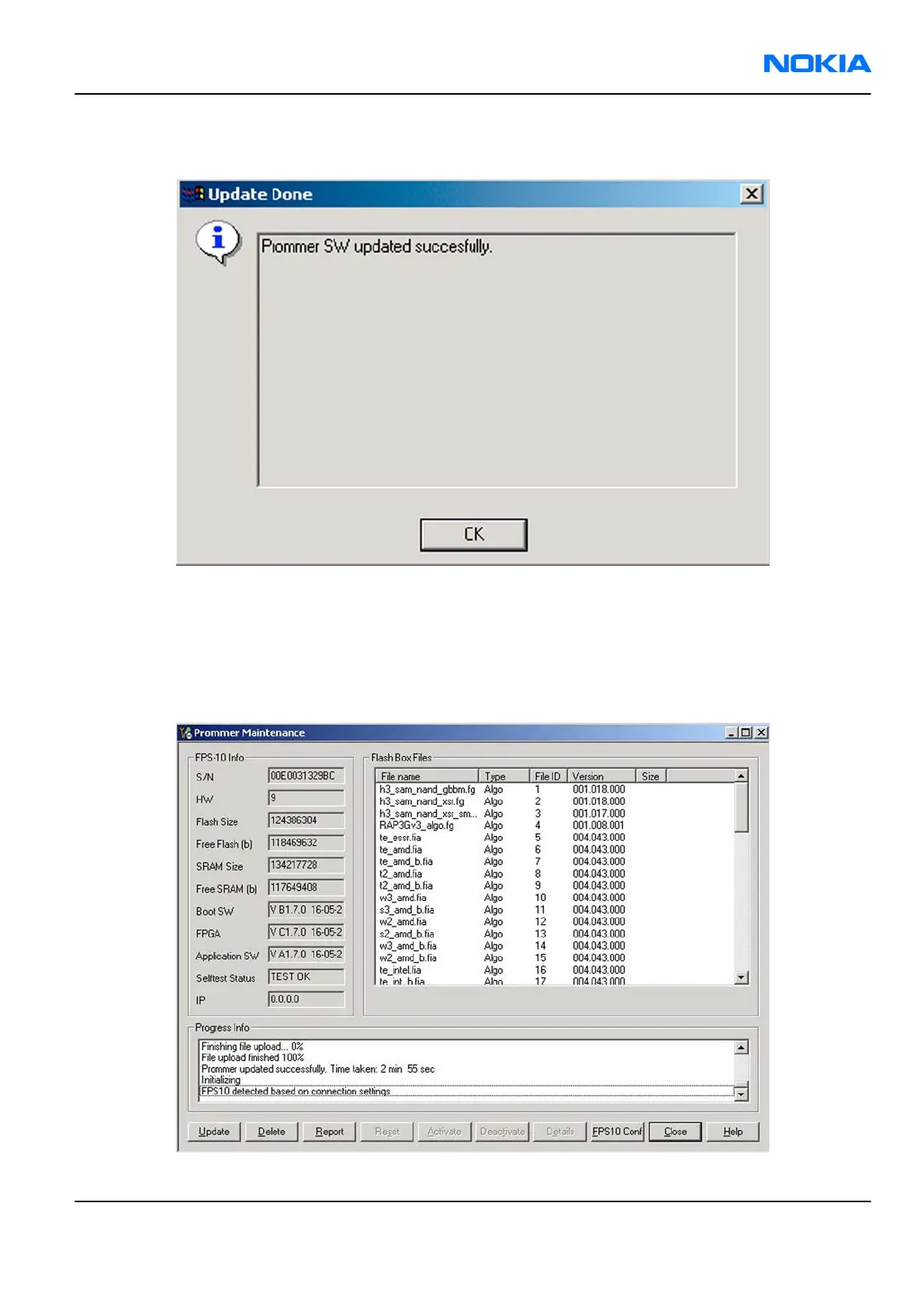

Figure 25 Prommer SW update finished
6. If you are using the FPS-10 flash prommer, check that it is detected from the progress info. Check also the
status leds in the FPS-10. The MODE2 led (green), VBAT and POWER leds (red) should be lit. If you are using
LAN connection, the LAN led (yellow) should be blinking.
7. Check that your FPS-10 flash prommer has enough memory. Flashing the RM-88 with FPS-10 needs at least
128 MB of SRAM memory in the prommer.
Figure 26 Prommer maintenance window
RM-88
Service Software Instructions Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 3 –23
Copyright © 2006 Nokia. All rights reserved.

Nokia E62 Specifications

General

Panel type	LCD
Display resolution	320 x 240 pixels
Display number of colors	16.78 million colors
Ringer type	Polyphonic
Processor frequency	0.235 GHz
Internal memory	80 MB
Compatible memory cards	miniSD
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Bundled software	S 60 UI
Form factor	Bar
Product color	Silver, White
Talk time (2G)	5.5 h
Battery capacity	1500 mAh
Standby time (2G)	330 h
2G standards	EDGE, GPRS
Keyboard layout	QWERTY
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes

Weight and Dimensions

Depth	14 mm
Width	69.7 mm
Height	177 mm
Weight	144 g
