Installation
16 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
Note

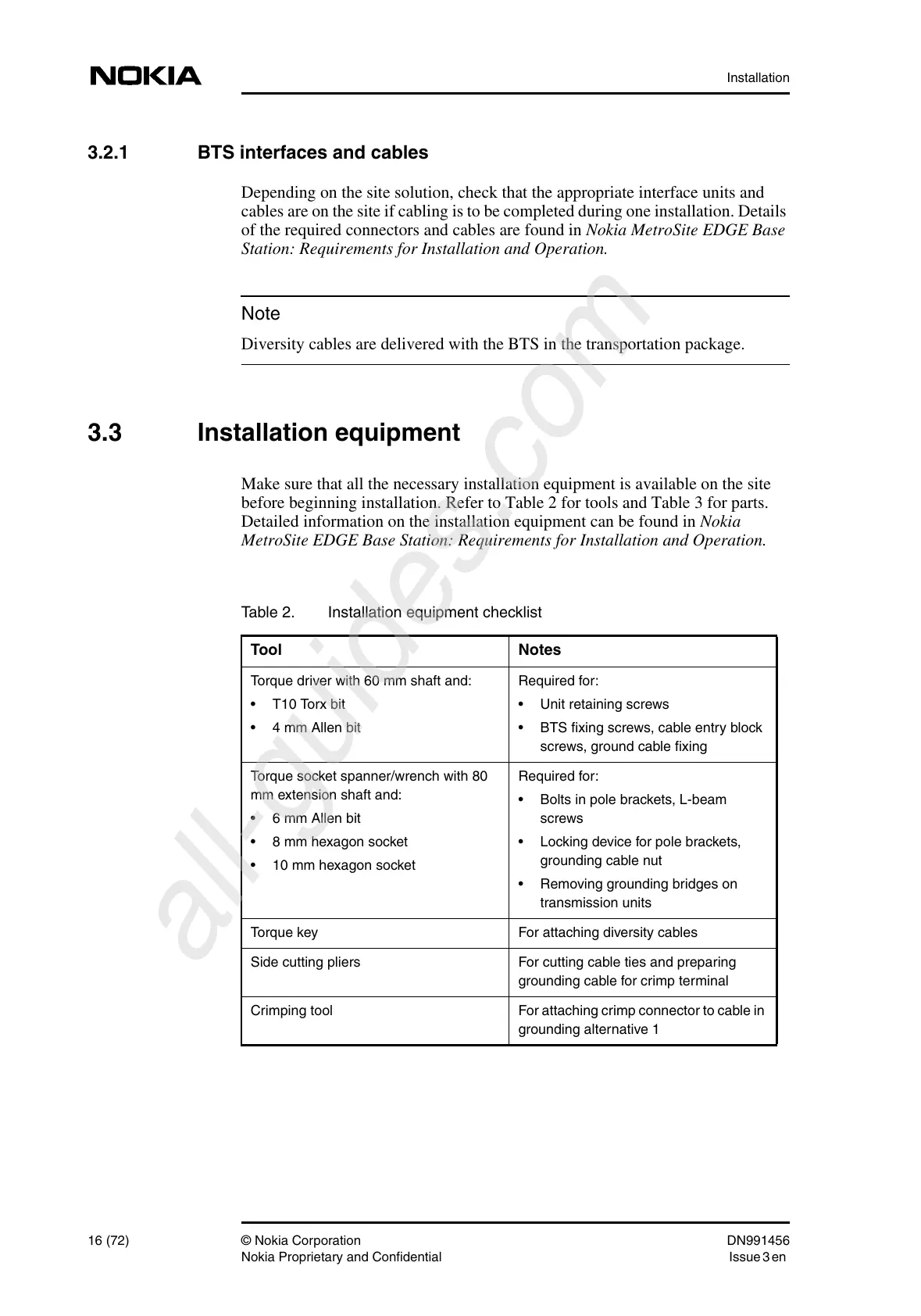

3.2.1 BTS interfaces and cables
Depending on the site solution, check that the appropriate interface units and
cables are on the site if cabling is to be completed during one installation. Details
of the required connectors and cables are found in Nokia MetroSite EDGE Base
Station: Requirements for Installation and Operation.
Diversity cables are delivered with the BTS in the transportation package.
3.3 Installation equipment
Make sure that all the necessary installation equipment is available on the site
before beginning installation. Refer to Table 2 for tools and Table 3 for parts.
Detailed information on the installation equipment can be found in Nokia
MetroSite EDGE Base Station: Requirements for Installation and Operation.
Table 2. Installation equipment checklist
Tool Notes
Torque driver with 60 mm shaft and:
• T10 Torx bit
• 4 mm Allen bit
Required for:
• Unit retaining screws
• BTS fixing screws, cable entry block
screws, ground cable fixing
Torque socket spanner/wrench with 80
mm extension shaft and:
• 6 mm Allen bit
• 8 mm hexagon socket
• 10 mm hexagon socket
Required for:
• Bolts in pole brackets, L-beam
screws
• Locking device for pole brackets,
grounding cable nut
• Removing grounding bridges on
transmission units
Torque key For attaching diversity cables
Side cutting pliers For cutting cable ties and preparing
grounding cable for crimp terminal
Crimping tool For attaching crimp connector to cable in
grounding alternative 1
