Installation
42 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
3. Route the metal band through the holes in the front block, as shown in [4],
Figure 12.
Leave the other end of the metal band free until you have completed the
next procedure (fixing the front bracket blocks to the mounting rack).
Legend:
1 Metal band
2 Locking device
3 Detail of locking device, attached to metal band
4 Detail of entry point for metal band into front bracket block

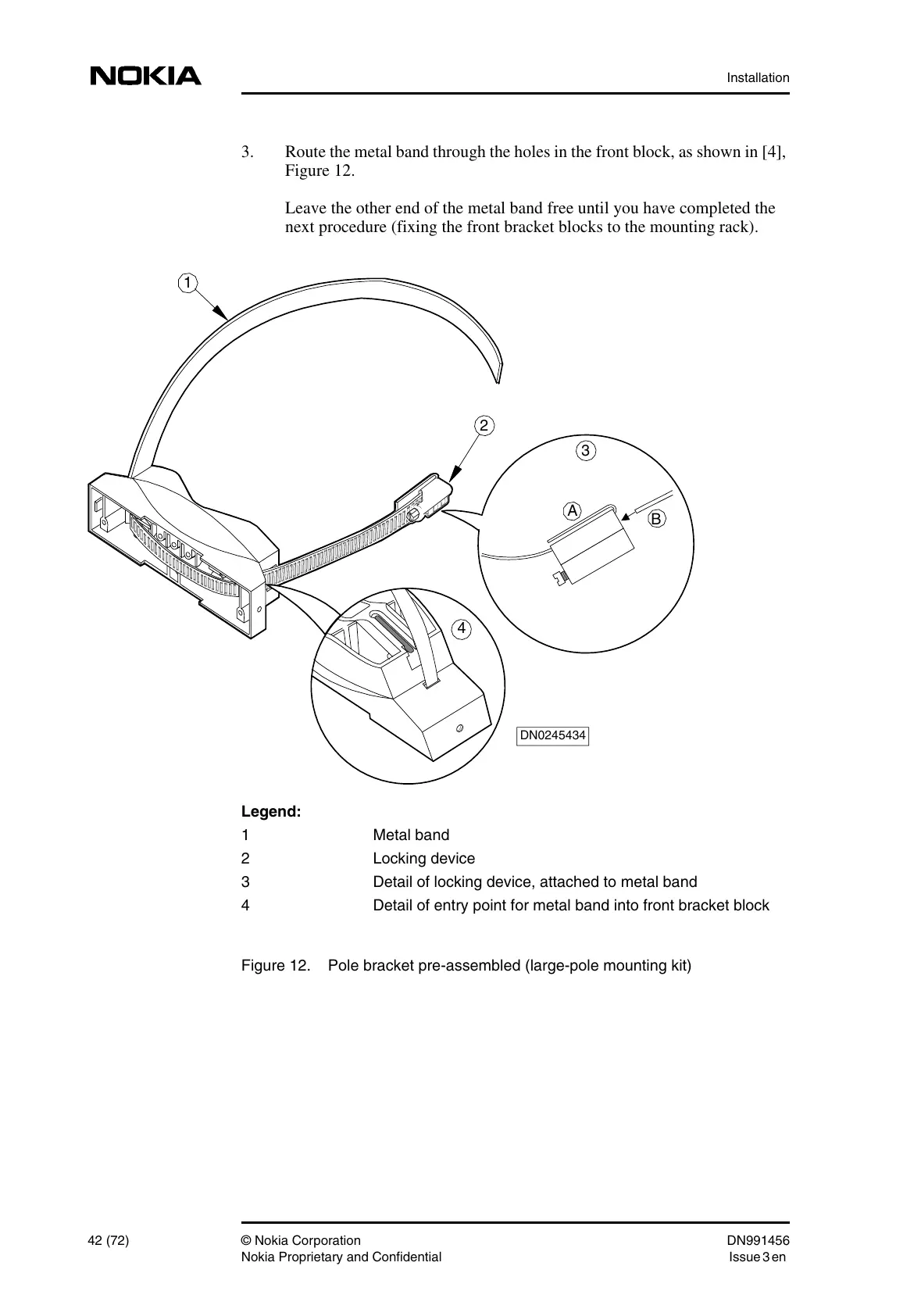

Figure 12. Pole bracket pre-assembled (large-pole mounting kit)
1
DN0245434
2
A
B
3
4
