Mounting the BTS

DN991456 © Nokia Corporation 29 (72)

Issue 3 en Nokia Proprietary and Confidential

6 Mounting the BTS

The mounting rack is used in both wall and pole installations to provide a fixing

base for the Nokia MetroSite EDGE Base Station. The dimensions of the

mounting rack are presented in Figure 5. Screw holes R1, R2, R3, R4, R5, and R6

are for fixing the mounting rack onto the wall or the pole bracket. Screw holes B1

and B2 are used for fixing the BTS to the mounting rack.

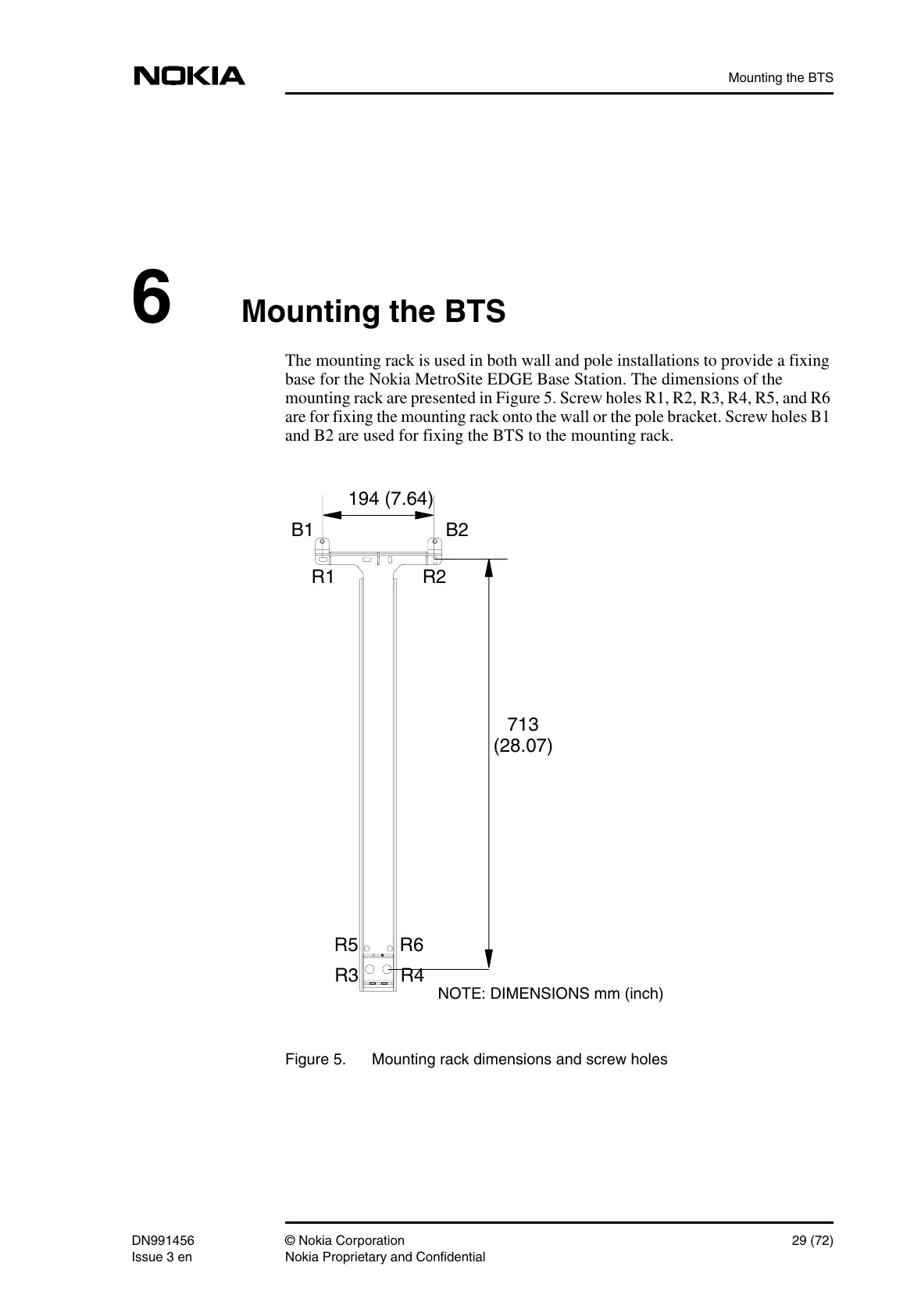

Figure 5. Mounting rack dimensions and screw holes

NOTE: DIMENSIONS mm (inch)

713

(28.07)

194 (7.64)

B1 B2

R1 R2

R3 R4

R5 R6
