Cabinet cabling

DN991456 © Nokia Corporation 63 (72)

Issue 3 en Nokia Proprietary and Confidential

Note

8.5 Interface unit

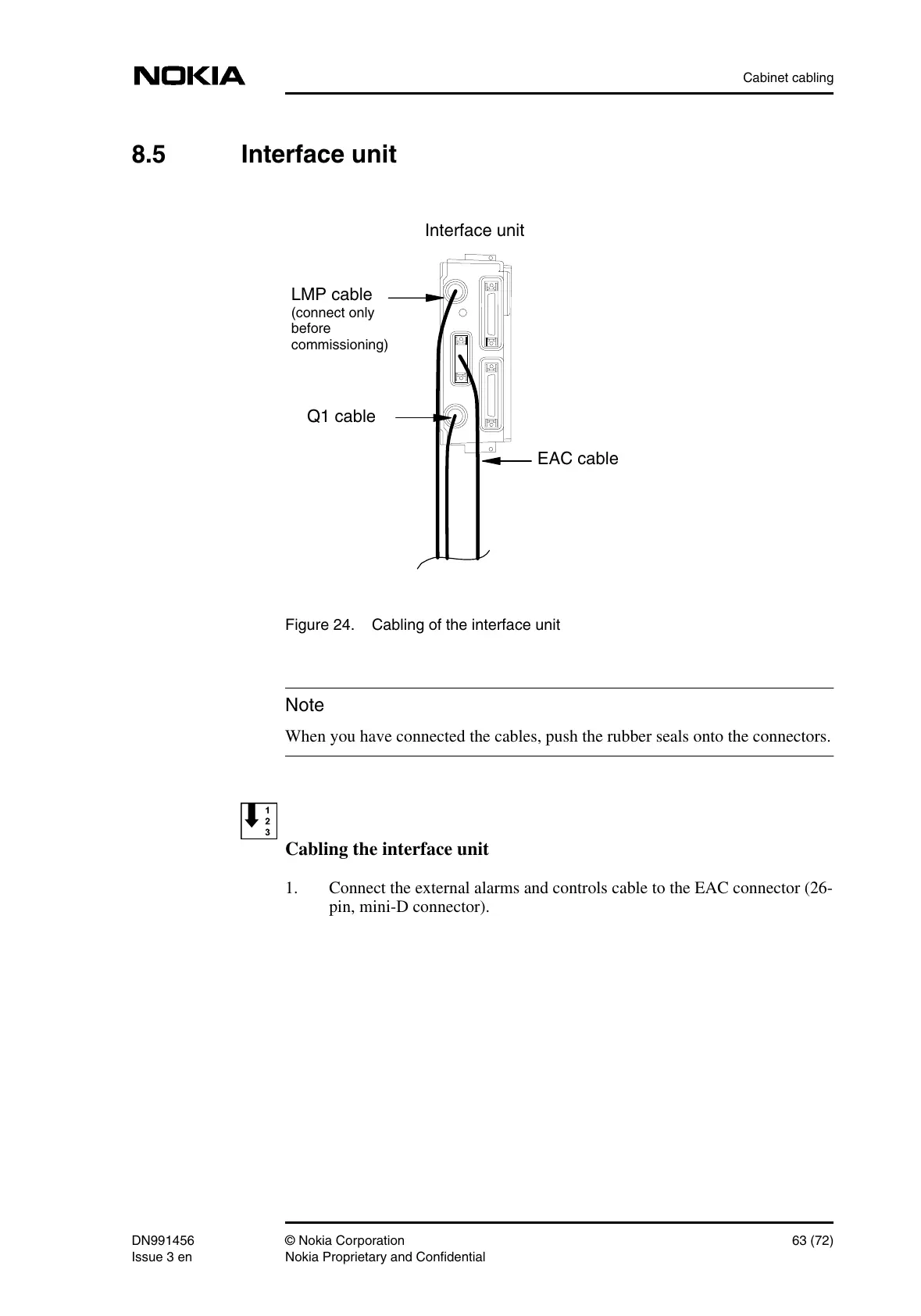

Figure 24. Cabling of the interface unit

When you have connected the cables, push the rubber seals onto the connectors.

Cabling the interface unit

1. Connect the external alarms and controls cable to the EAC connector (26-

pin, mini-D connector).

EAC cable

LMP cable

(connect only

before

commissioning)

Q1 cable

Interface unit
