Removing the units
DN991456 © Nokia Corporation 25 (72)
Issue 3 en Nokia Proprietary and Confidential
Caution
5 Removing the units
Units can be removed from the chassis in order to make the BTS easier to handle
during installation. The TRXs are the heaviest units, weighing approximately 4.5
kg (9.9 lb) each. Do not remove the shield units.
Always use the antistatic wrist strap when removing or installing the units. For
more information on electro-static discharge protection, refer to Nokia MetroSite
EDGE Base Station: Warnings and Cautions. The wrist strap and the connection
point are shown in Figure 3.

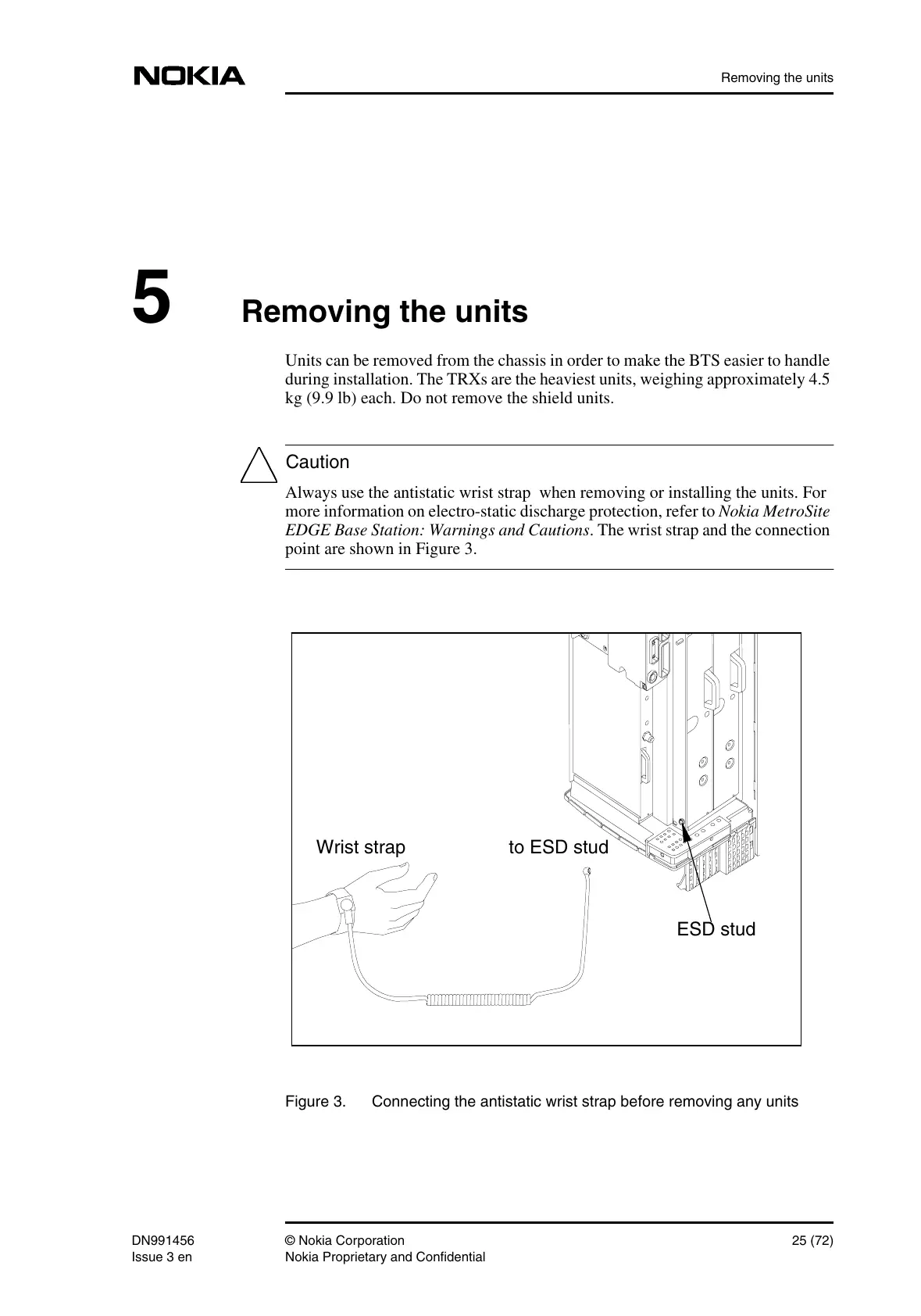

Figure 3. Connecting the antistatic wrist strap before removing any units
ESD stud
to ESD stud
Wrist strap
