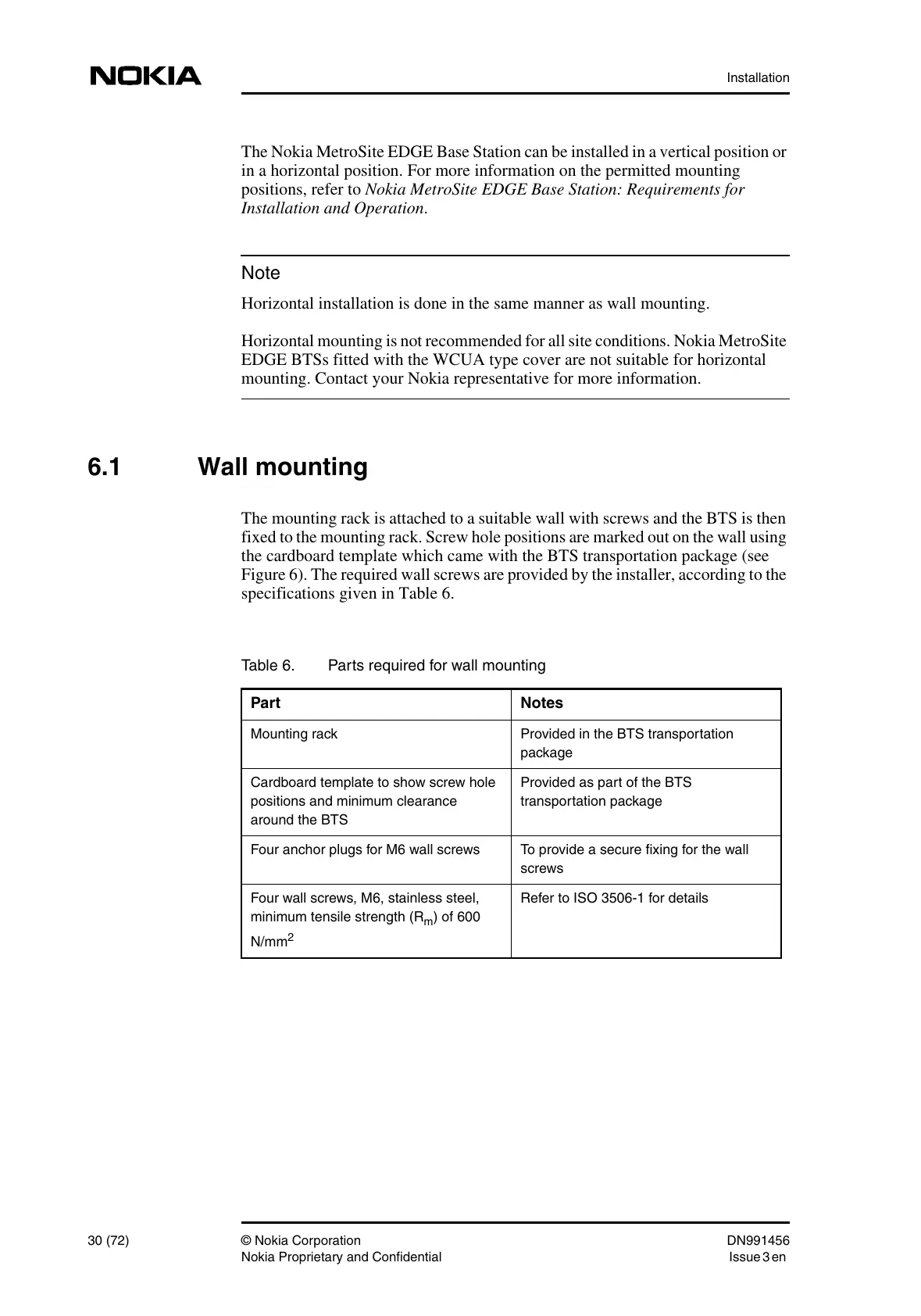

Installation
30 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
Note
The Nokia MetroSite EDGE Base Station can be installed in a vertical position or
in a horizontal position. For more information on the permitted mounting
positions, refer to Nokia MetroSite EDGE Base Station: Requirements for
Installation and Operation.
Horizontal installation is done in the same manner as wall mounting.
Horizontal mounting is not recommended for all site conditions. Nokia MetroSite
EDGE BTSs fitted with the WCUA type cover are not suitable for horizontal
mounting. Contact your Nokia representative for more information.
6.1 Wall mounting
The mounting rack is attached to a suitable wall with screws and the BTS is then
fixed to the mounting rack. Screw hole positions are marked out on the wall using
the cardboard template which came with the BTS transportation package (see
Figure 6). The required wall screws are provided by the installer, according to the
specifications given in Table 6.
Table 6. Parts required for wall mounting
Part Notes
Mounting rack Provided in the BTS transportation
package
Cardboard template to show screw hole
positions and minimum clearance
around the BTS
Provided as part of the BTS
transportation package
Four anchor plugs for M6 wall screws To provide a secure fixing for the wall
screws
Four wall screws, M6, stainless steel,
minimum tensile strength (R
m
) of 600
N/mm
2
Refer to ISO 3506-1 for details
