Cabinet cabling

DN991456 © Nokia Corporation 67 (72)

Issue 3 en Nokia Proprietary and Confidential

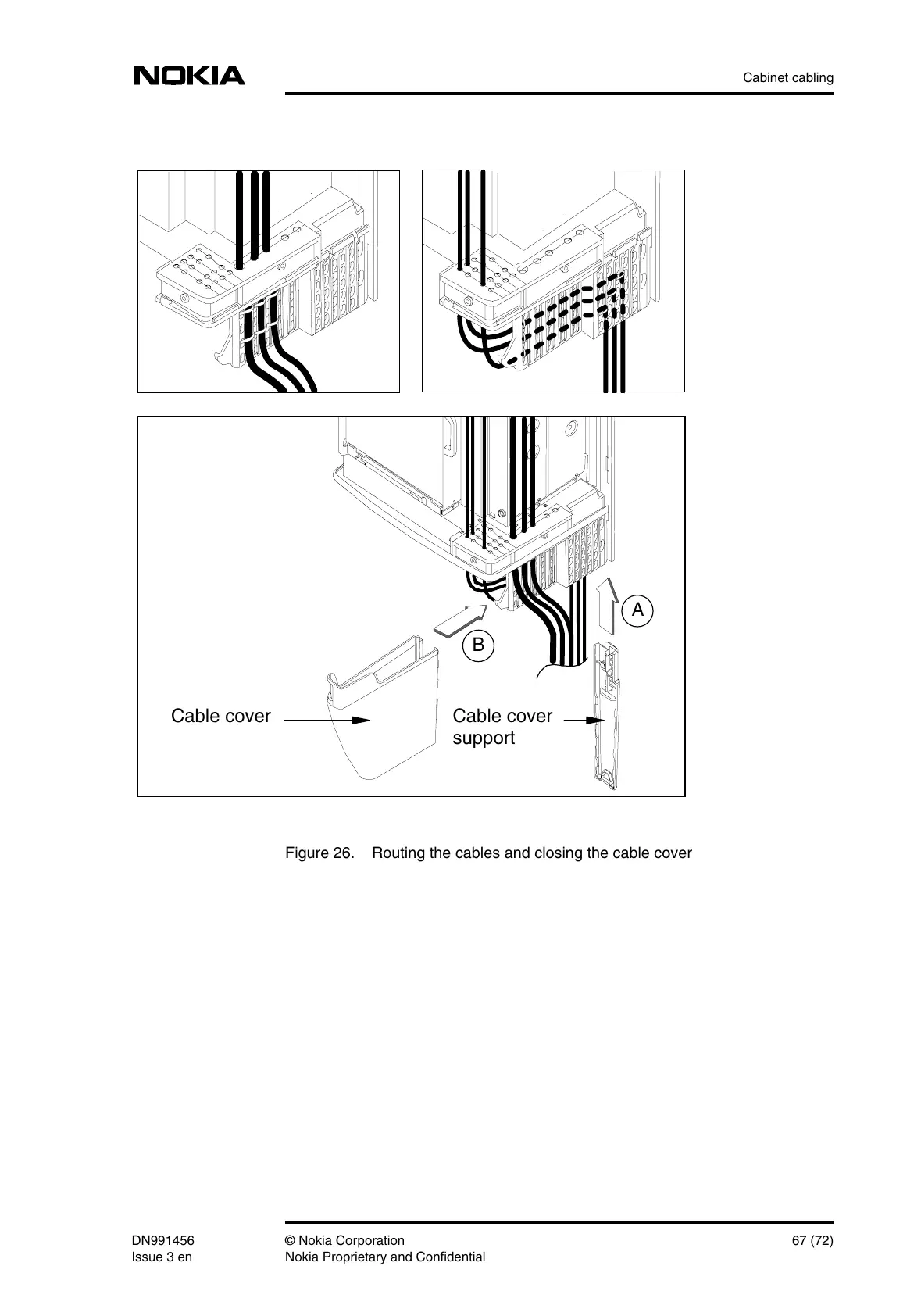

Figure 26. Routing the cables and closing the cable cover

Cable cover Cable cover

support

All manuals and user guides at all-guides.com

Table of Contents5
Contents5
List of Tables6
List of Figures7
About this Document11
Working Order13
Table 1. Working Order for Installing the Nokia Metrosite EDGE Base Station13
Preparations for Installation15
Checking the Delivery15
Checking the Site15
BTS Interfaces and Cables16
Installation Equipment16
Table 3. Pre-Installation Parts Checklist17
Unpacking the Delivery19
Working Order for Unpacking19
Contents of the BTS Transportation Package21
Table 4. Checklist for Contents of the Transportation Package for the Nokia21
Contents of the Pole Mounting Kit22
Table 5. Checklist for Contents of the Optional Pole Mounting Kit22
Figure 1. Contents of the Nokia Metrosite EDGE Base Station Transportation Package When Unpacked22
Figure 2. Contents of the Optional Pole Mounting Kit23
Removing the Units25
Figure 3. Connecting the Antistatic Wrist Strap before Removing any Units25
Figure 4. Removing the Units27
Mounting the BTS29
Figure 5. Mounting Rack Dimensions and Screw Holes29
Wall Mounting30
Table 6. Parts Required for Wall Mounting30
Figure 6. Cardboard Template for Aligning Wall Mounting Screw Holes31
Figure 7. Wall Mounting33
Pole Mounting34
Table 7. Parts and Pole Diameters Required for Pole Installation34
Attaching the Cabinet with the Small-Pole Mounting Kit35
Figure 8. Bracket Blocks for Pole Mounting35
Figure 9. Pre-Assembling the Pole Brackets36
Figure 10. Attaching the Mounting Rack and the Pole Brackets38
Figure 11. Pole Mounting with the Small-Pole Mounting Kit40
Attaching the Cabinet with the Large-Pole Mounting Kit41
Table 8. Band Length for Different Pole Diameters41
Figure 12. Pole Bracket Pre-Assembled (Large-Pole Mounting Kit)42
Figure 13. Pole Bracket Pre-Assembled (Large-Pole Mounting Kit)43
Figure 14. Attaching the Mounting Rack and the Pole Brackets45
Figure 15. Pole Mounting with Large-Pole Mounting Kit47
Reinstalling the Units49
Cabinet Cabling51
Preparations for Cabling51
Figure 16. Displacing the Sealing Strip and Removing the Cable Entry Block52
Grounding53
Figure 17. Cable Routing through the Cable Entry Block53
Figure 18. Grounding Connector Alternatives54
Power Supply55
Figure 19. Power Supply Unit and Power Connector Alternatives57
Transmission Unit58
FC E1/T1 Transmission Unit58
Figure 20. Cabling Alternatives for the FC E1/T1 Transmission Unit59
FXC E1 Transmission Unit60
Figure 21. Cabling of the FXC E1 Transmission Unit60
FXC E1/T1 Transmission Unit61
Figure 22. Cabling of the FXC E1/T1 Transmission Unit61
FXC RRI Transmission Unit62
Figure 23. Cabling of the FXC RRI Transmission Unit62
Interface Unit63
Figure 24. Cabling of the Interface Unit63
Transceiver Units (Trxs)64
Figure 25. Examples of Diversity Cabling Alternatives65
Completing the Cabling66
Figure 26. Routing the Cables and Closing the Cable Cover67
Completing the Installation69
Figure 27. Hanging the BTS Cover70
Index71
