Nokia MetroSite EDGE User Manual

Installation
22 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en

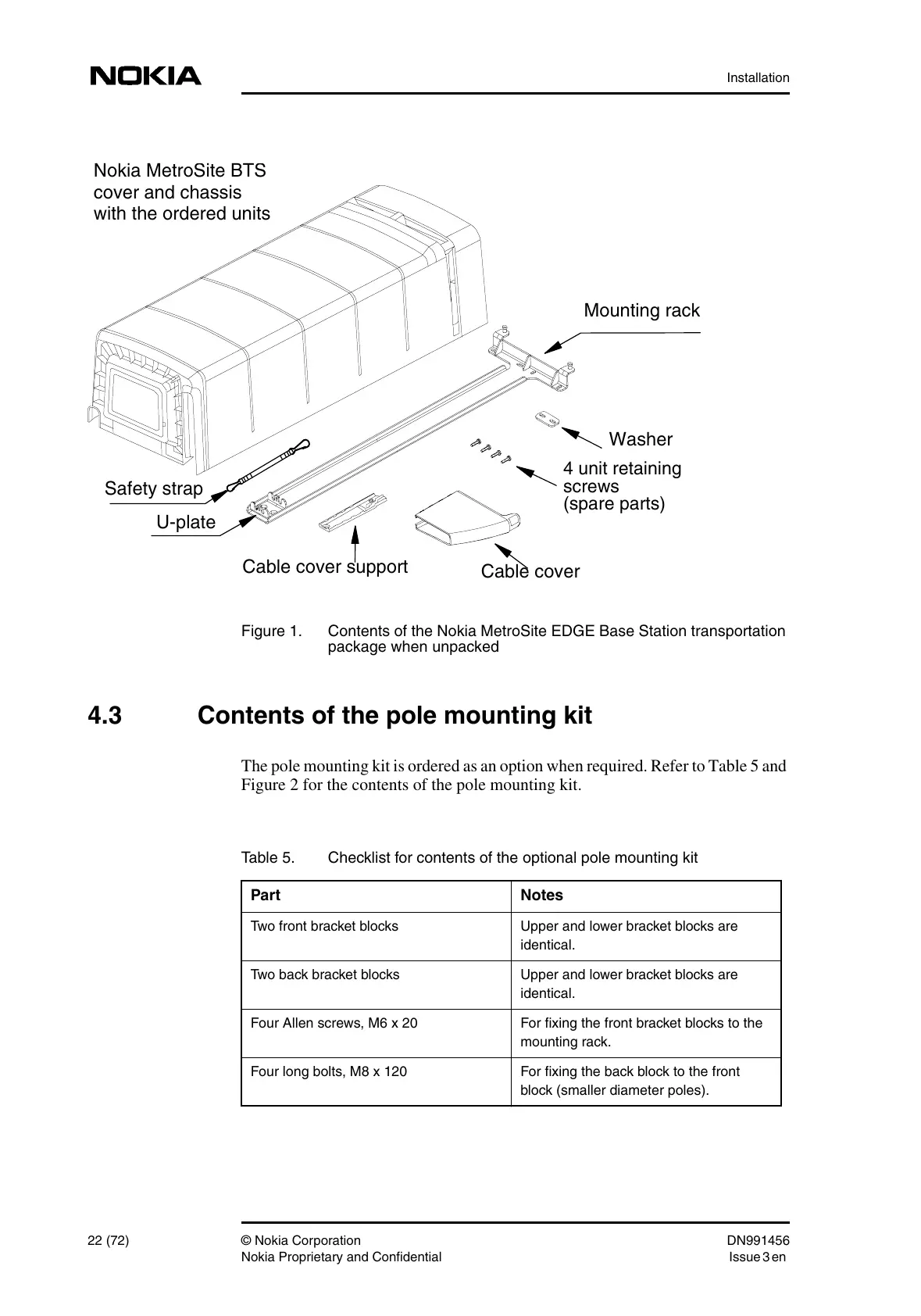

Figure 1. Contents of the Nokia MetroSite EDGE Base Station transportation
package when unpacked
4.3 Contents of the pole mounting kit
The pole mounting kit is ordered as an option when required. Refer to Table 5 and
Figure 2 for the contents of the pole mounting kit.
Nokia Metro
S
ite BT
S
cover and chassis
with the ordered units
Cable cover support
4 unit retaining
screws
(spare parts)
Mounting rack
Cable cover
U-plate
Washer
Safety strap
Table 5. Checklist for contents of the optional pole mounting kit
Part Notes
Two front bracket blocks Upper and lower bracket blocks are
identical.
Two back bracket blocks Upper and lower bracket blocks are
identical.
Four Allen screws, M6 x 20 For fixing the front bracket blocks to the
mounting rack.
Four long bolts, M8 x 120 For fixing the back block to the front
block (smaller diameter poles).
