Mounting the BTS

DN991456 © Nokia Corporation 45 (72)

Issue 3 en Nokia Proprietary and Confidential

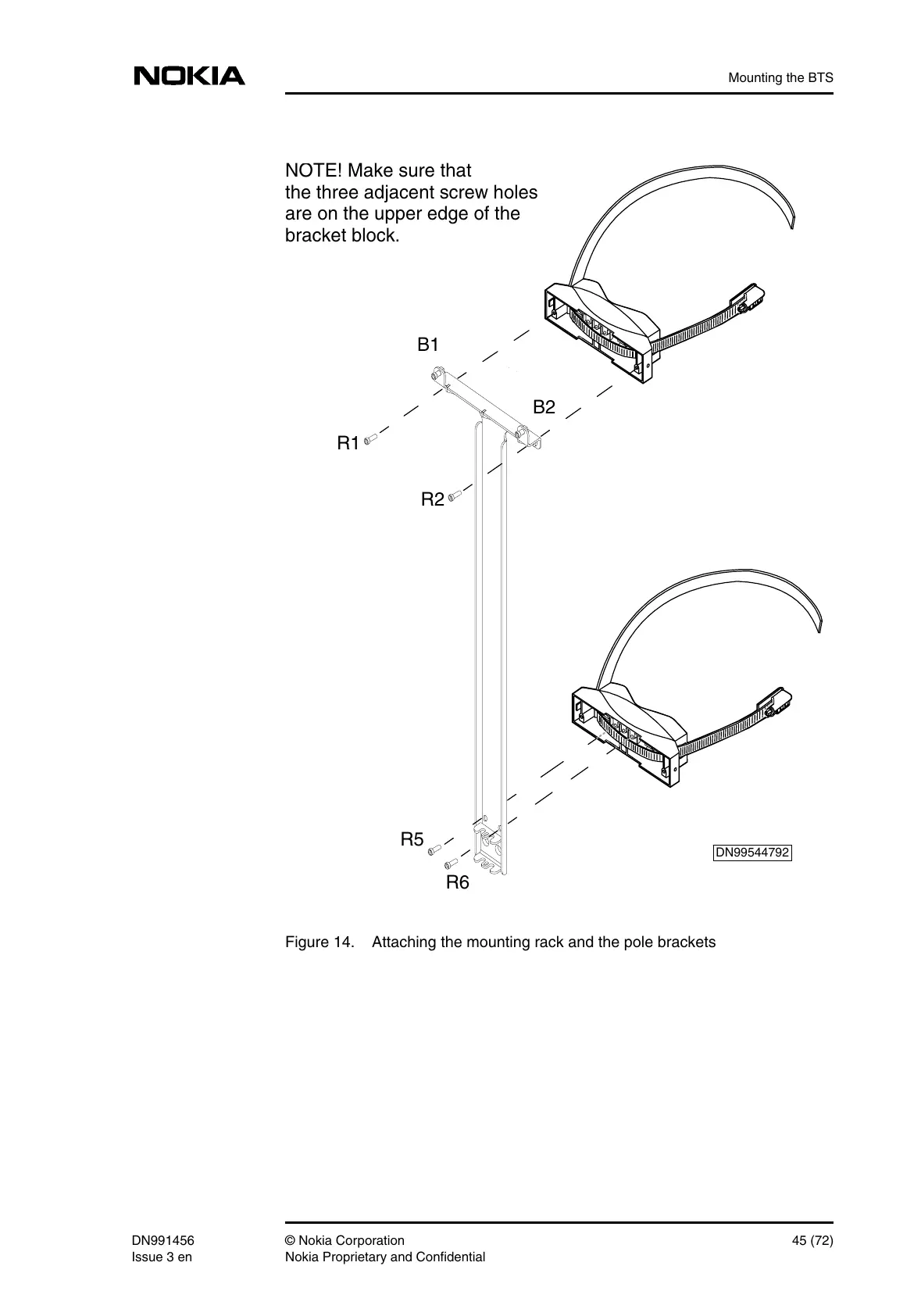

Figure 14. Attaching the mounting rack and the pole brackets

TE! Make sure that

the three adjacent screw holes

are on the upper edge of the

bracket block.

DN99544792
