Installation
46 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en

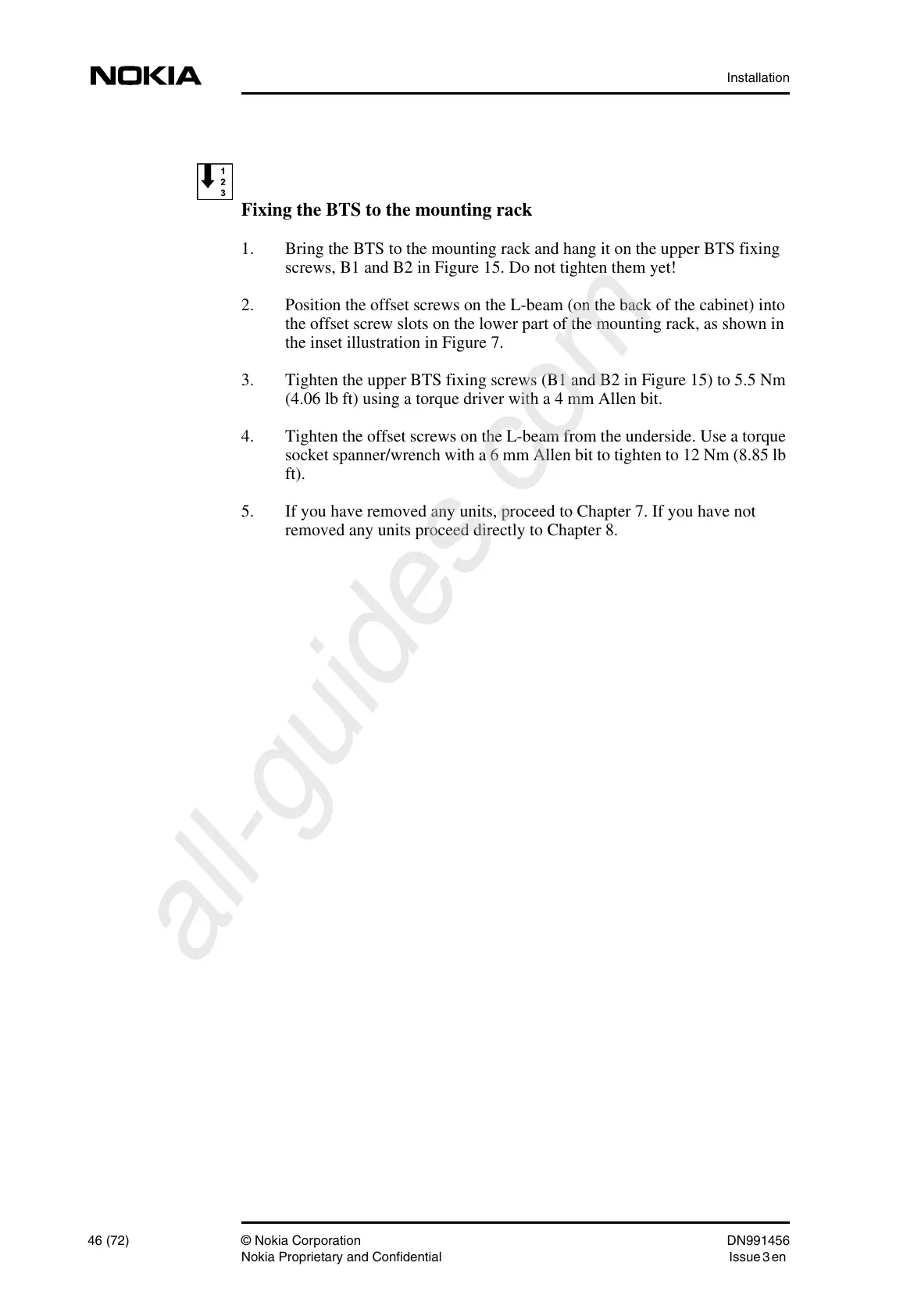

Fixing the BTS to the mounting rack
1. Bring the BTS to the mounting rack and hang it on the upper BTS fixing
screws, B1 and B2 in Figure 15. Do not tighten them yet!
2. Position the offset screws on the L-beam (on the back of the cabinet) into
the offset screw slots on the lower part of the mounting rack, as shown in
the inset illustration in Figure 7.
3. Tighten the upper BTS fixing screws (B1 and B2 in Figure 15) to 5.5 Nm
(4.06 lb ft) using a torque driver with a 4 mm Allen bit.
4. Tighten the offset screws on the L-beam from the underside. Use a torque
socket spanner/wrench with a 6 mm Allen bit to tighten to 12 Nm (8.85 lb
ft).
5. If you have removed any units, proceed to Chapter 7. If you have not
removed any units proceed directly to Chapter 8.
