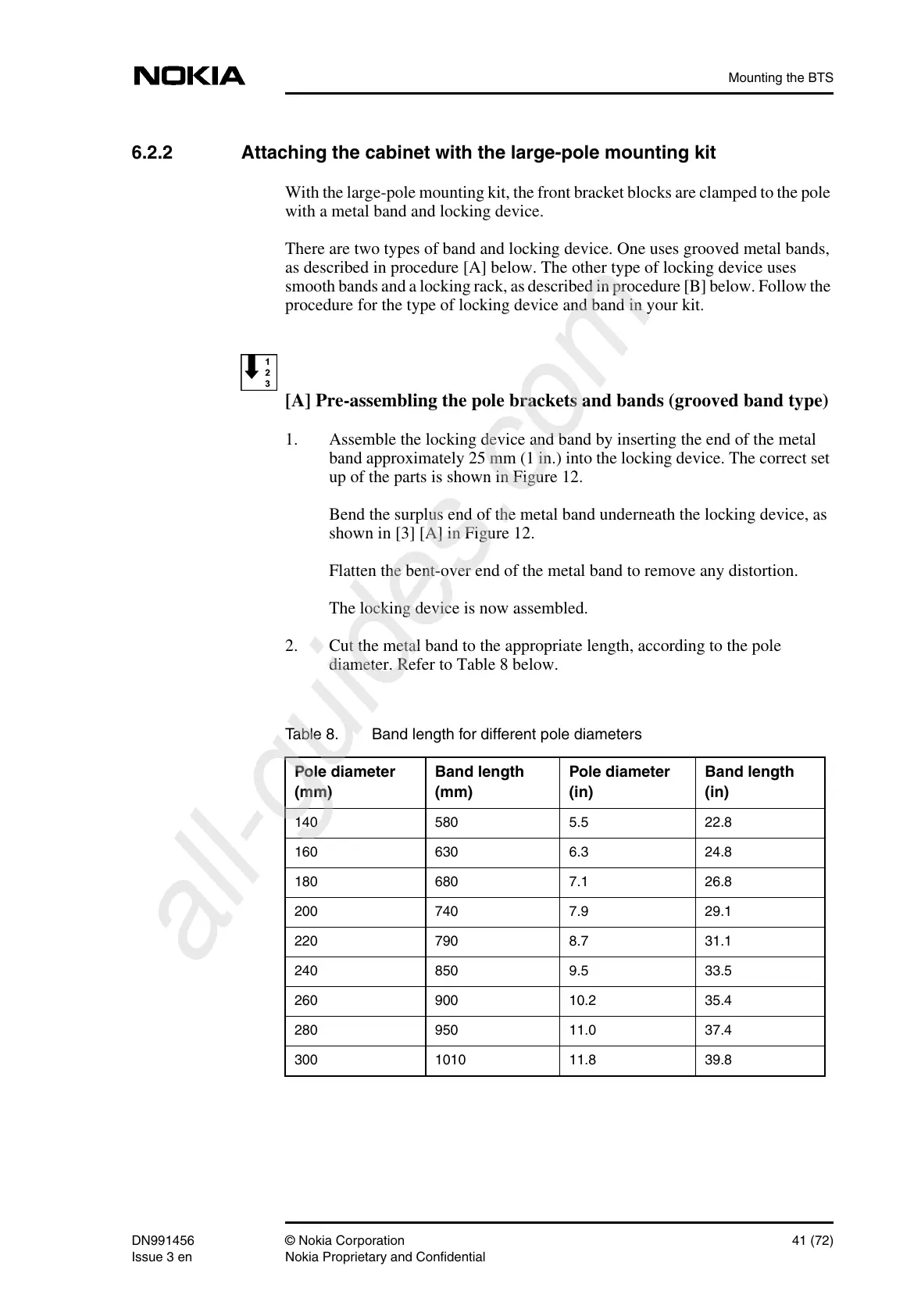

6.2.2 Attaching the cabinet with the large-pole mounting kit
With the large-pole mounting kit, the front bracket blocks are clamped to the pole
with a metal band and locking device.
There are two types of band and locking device. One uses grooved metal bands,
as described in procedure [A] below. The other type of locking device uses
smooth bands and a locking rack, as described in procedure [B] below. Follow the
procedure for the type of locking device and band in your kit.
[A] Pre-assembling the pole brackets and bands (grooved band type)
1. Assemble the locking device and band by inserting the end of the metal
band approximately 25 mm (1 in.) into the locking device. The correct set
up of the parts is shown in Figure 12.
Bend the surplus end of the metal band underneath the locking device, as
shown in [3] [A] in Figure 12.
Flatten the bent-over end of the metal band to remove any distortion.
The locking device is now assembled.
2. Cut the metal band to the appropriate length, according to the pole
diameter. Refer to Table 8 below.
Table 8. Band length for different pole diameters
Pole diameter
(mm)
Band length
(mm)
Pole diameter
(in)
Band length
(in)
140 580 5.5 22.8
160 630 6.3 24.8
180 680 7.1 26.8
200 740 7.9 29.1
220 790 8.7 31.1
240 850 9.5 33.5
260 900 10.2 35.4
280 950 11.0 37.4
300 1010 11.8 39.8
