Installation
36 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
Pre-assembling the pole brackets
1. Insert the M8 assembly bolts and washers into the bolt holes in the back
blocks. See [1] in Figure 9.
2. Attach the square nuts on the ends of the bolts. Screw on the nuts just
enough to secure them on the ends of the bolts. See [2] in Figure 9.
3. Slide one of the bolts with the square nut into the slot at the side of the front
block. See [3] in Figure 9.
4. Screw the bolt in further, enough to prevent the bolt and the square nut
from sliding out from the front block. See [4] in Figure 9.

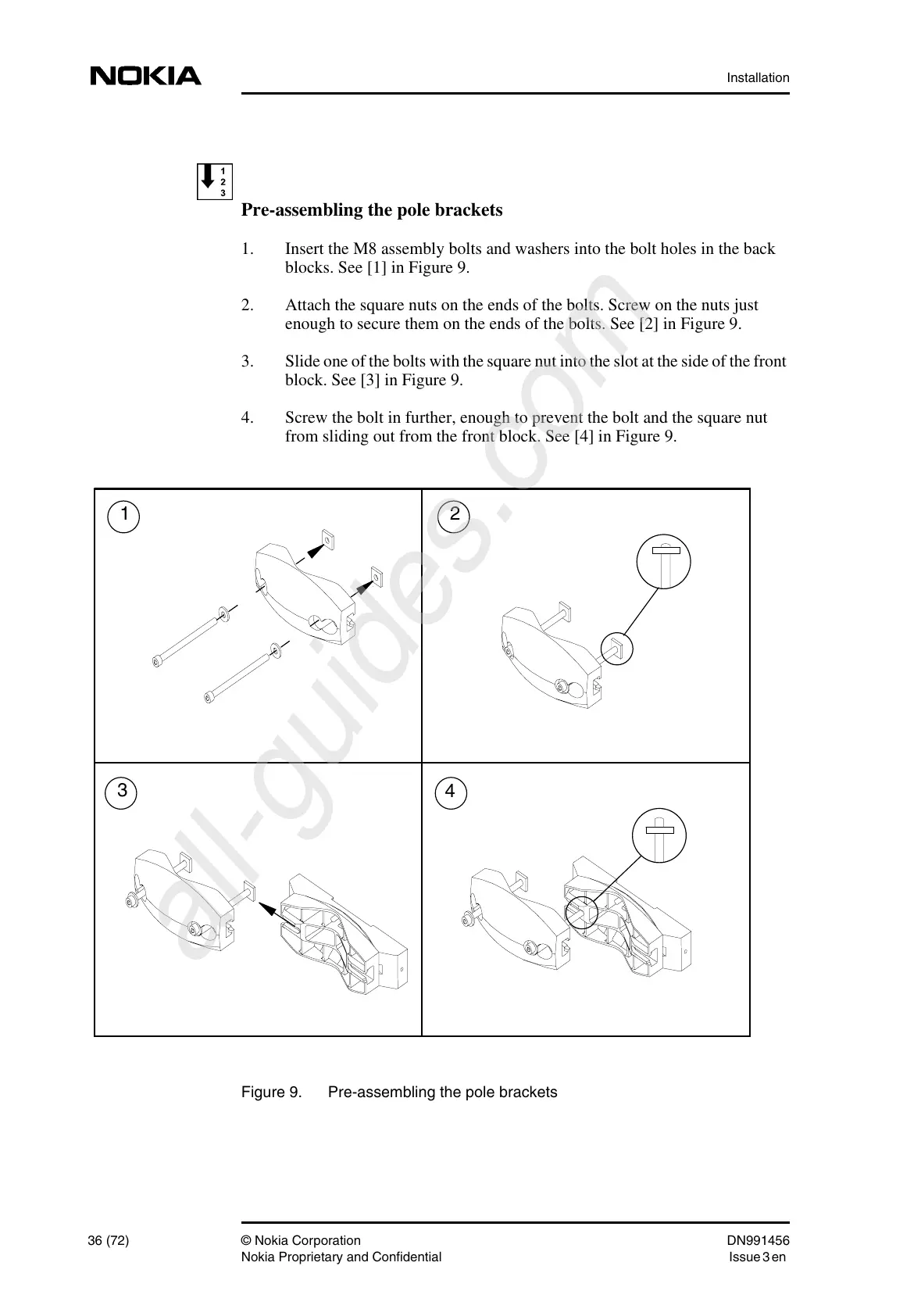

Figure 9. Pre-assembling the pole brackets
1
3
2
4
