Installation
58 (72) © Nokia Corporation DN991456
Nokia Proprietary and Confidential Issue 3 en
Note
Note

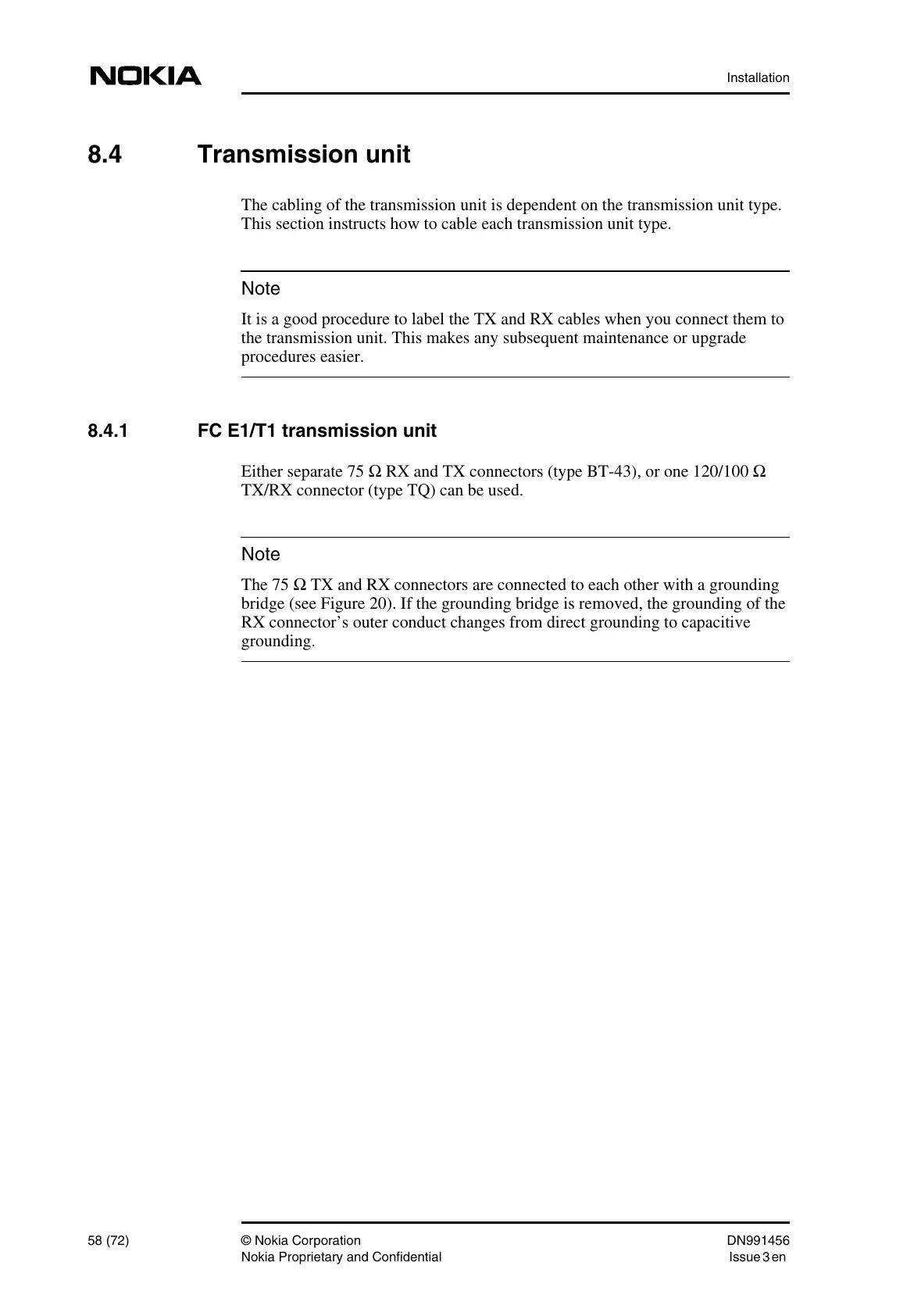

8.4 Transmission unit
The cabling of the transmission unit is dependent on the transmission unit type.
This section instructs how to cable each transmission unit type.
It is a good procedure to label the TX and RX cables when you connect them to
the transmission unit. This makes any subsequent maintenance or upgrade
procedures easier.
8.4.1 FC E1/T1 transmission unit
Either separate 75 Ω RX and TX connectors (type BT-43), or one 120/100 Ω
TX/RX connector (type TQ) can be used.
The 75 Ω TX and RX connectors are connected to each other with a grounding
bridge (see Figure 20). If the grounding bridge is removed, the grounding of the
RX connector’s outer conduct changes from direct grounding to capacitive
grounding.
