Installation

62 (72) © Nokia Corporation DN991456

Nokia Proprietary and Confidential Issue 3 en

Cabling an FXC E1/T1 transmission unit

• Connect the connectors of the TX/RX signal lines to the 100/120 Ω TX/RX

connectors on the FXC E1/T1 front panel (see Figure 22). Tighten the

connector nut properly.

8.4.4 FXC RRI transmission unit

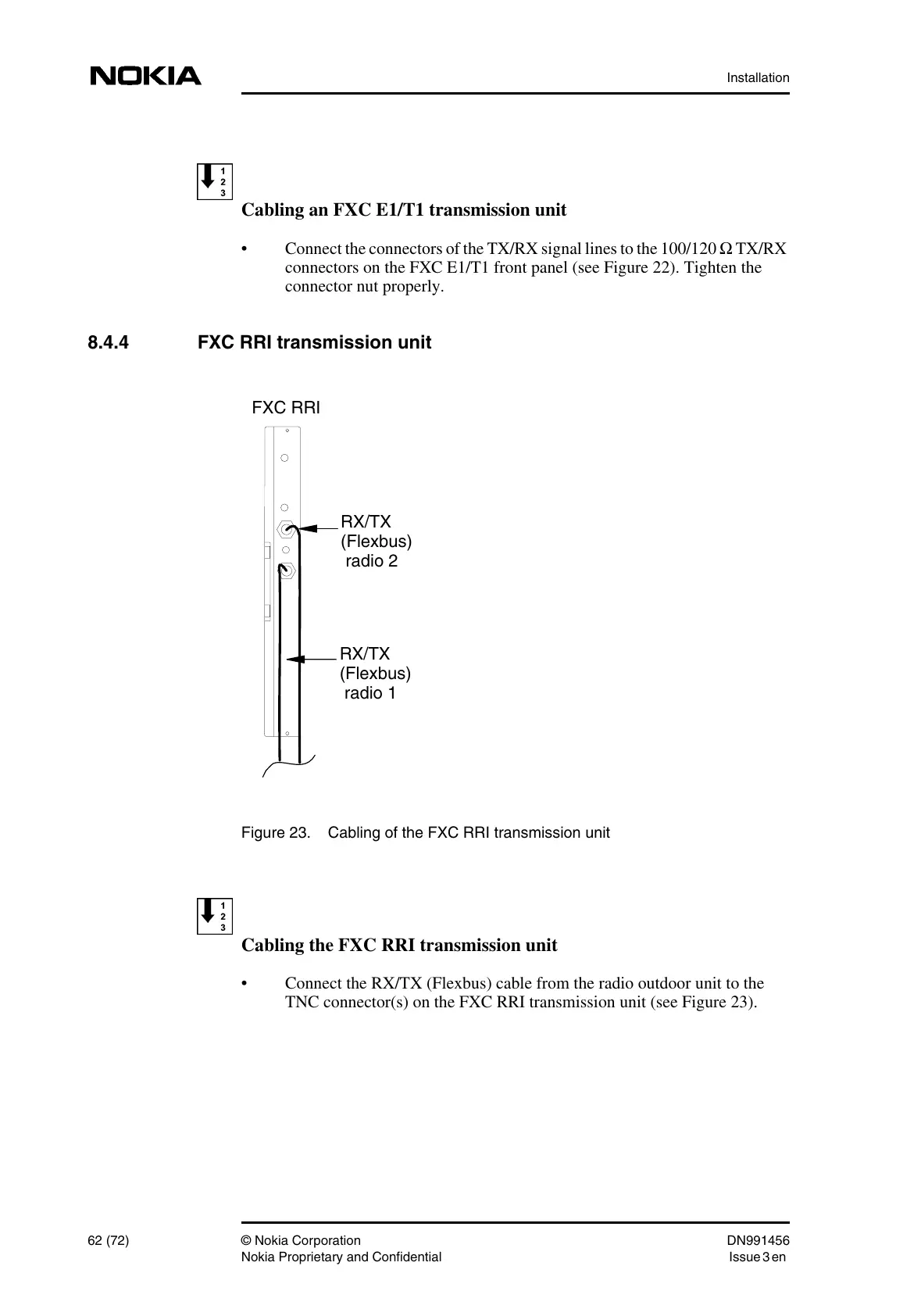

Figure 23. Cabling of the FXC RRI transmission unit

Cabling the FXC RRI transmission unit

• Connect the RX/TX (Flexbus) cable from the radio outdoor unit to the

TNC connector(s) on the FXC RRI transmission unit (see Figure 23).

RX/TX

(Flexbus)

radio 2

RX/TX

(Flexbus)

radio 1

FXC RRI
