Cabinet cabling
DN991456 © Nokia Corporation 51 (72)
Issue 3 en Nokia Proprietary and Confidential
Note

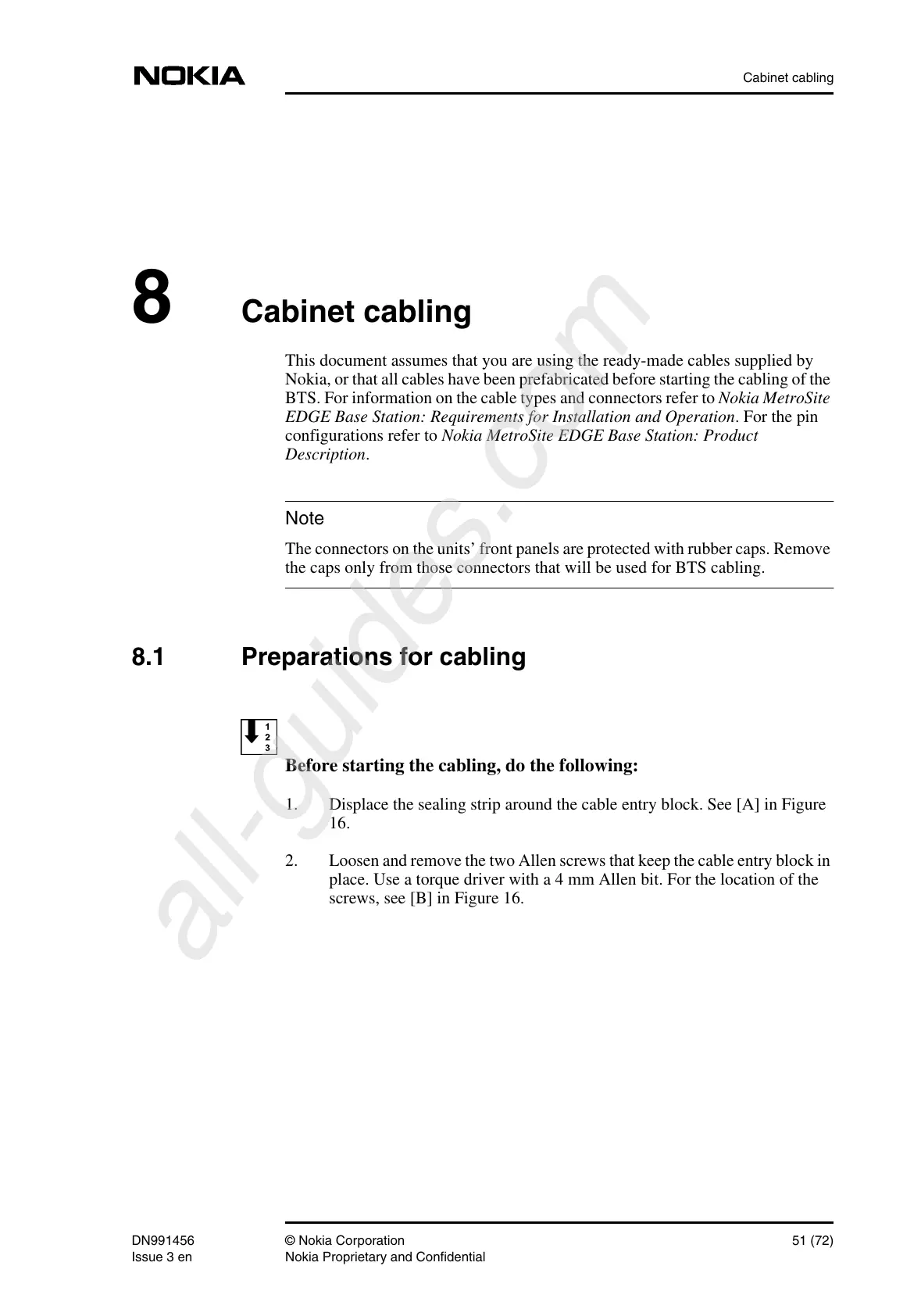

8 Cabinet cabling
This document assumes that you are using the ready-made cables supplied by
Nokia, or that all cables have been prefabricated before starting the cabling of the
BTS. For information on the cable types and connectors refer to Nokia MetroSite
EDGE Base Station: Requirements for Installation and Operation. For the pin
configurations refer to Nokia MetroSite EDGE Base Station: Product
Description.
The connectors on the units’ front panels are protected with rubber caps. Remove
the caps only from those connectors that will be used for BTS cabling.
8.1 Preparations for cabling
Before starting the cabling, do the following:
1. Displace the sealing strip around the cable entry block. See [A] in Figure
16.
2. Loosen and remove the two Allen screws that keep the cable entry block in
place. Use a torque driver with a 4 mm Allen bit. For the location of the
screws, see [B] in Figure 16.
