228 Chapter 39 Hardware procedures

NN10600-175 6.1S2

Procedure job aid

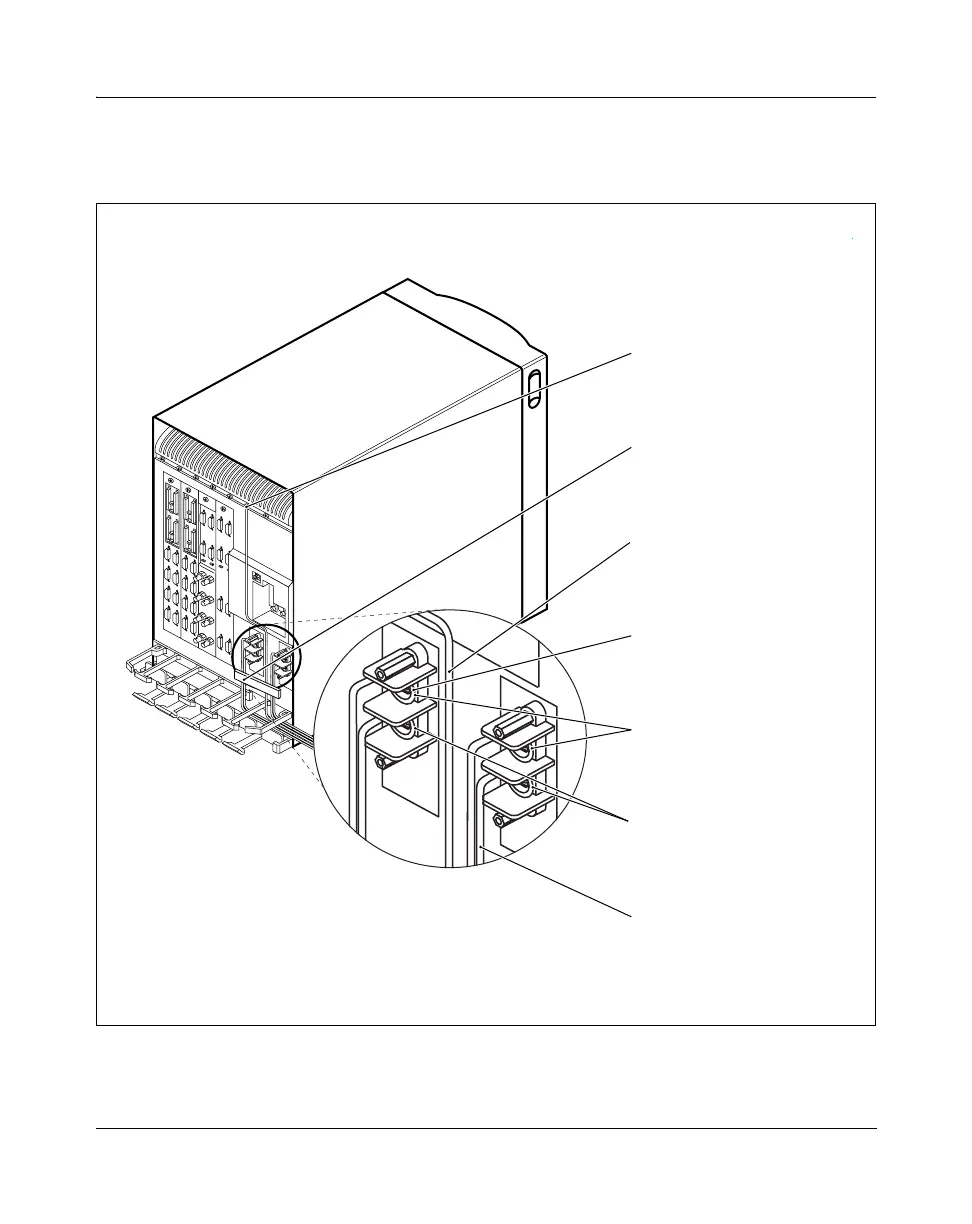

Figure 66

Grounding a dc power supply for a Multiservice Switch 7440

PPT DCP50012

Battery return

Battery – 48V/60V

10 AWG wiring

Ground wire

#8 screw size,

10 AWG

90° ringlugs

Secure

cables here

Nut securing

ground wire
