Chapter 39 Hardware procedures 239
Multiservice Switch 7400 Hardware Installation, Maintenance, and Upgrade 6.1S2
Procedure job aid

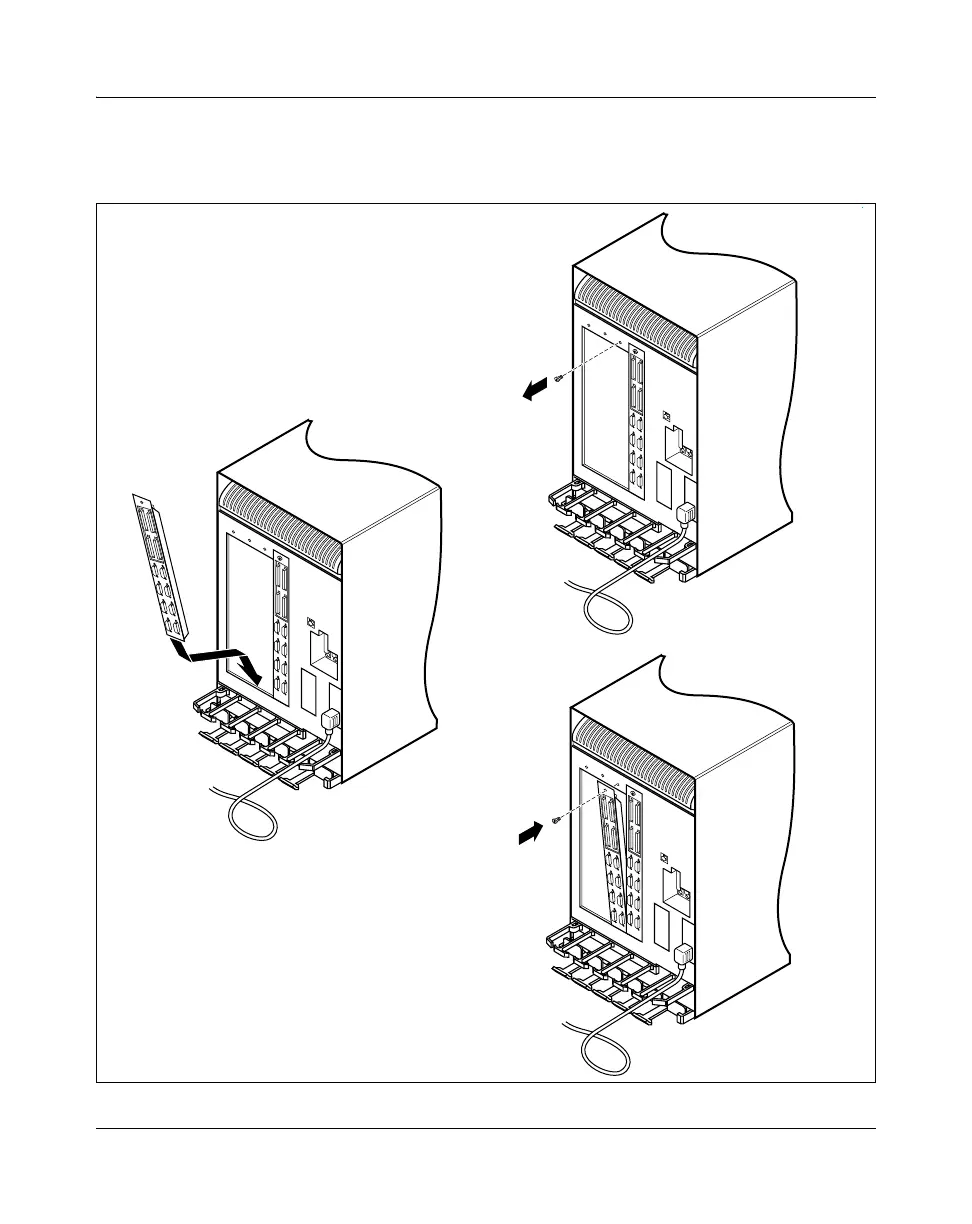

Figure 72
Installing a 13” termination panel
Note: Tip the top of the termination
panel away from the cabinet only a
minimum amount to clear the housing.
Forcing the bottom of the termination
panel against the cable manager can
damage the cable manager.
2
3
1
