Procedure job aid

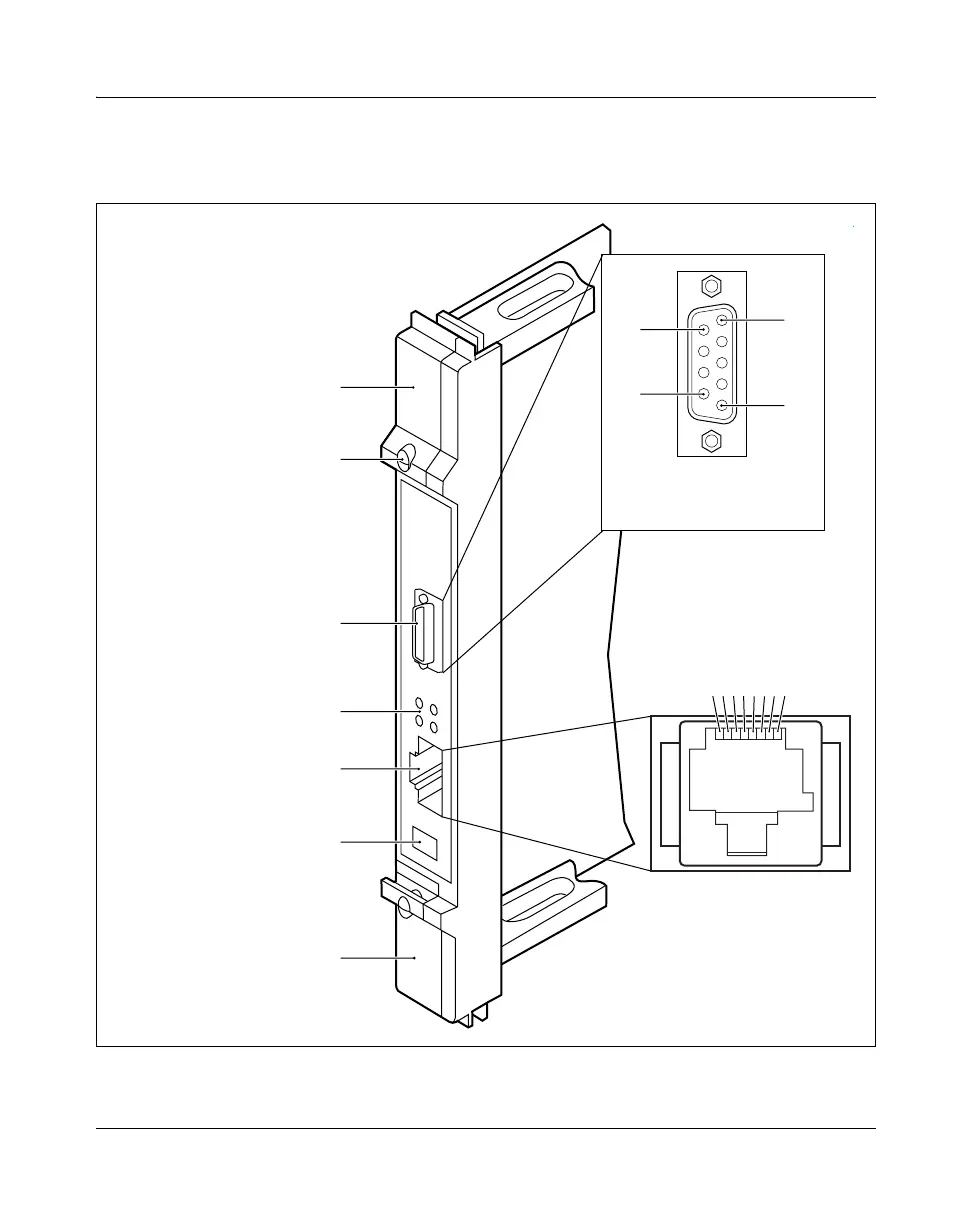

Figure 85
Example of a control processor faceplate
PPT 0982 002 AB
Ejector latch
Ejector latch
LED status
indicator
Locking latch
V.24 DCE port
10Base-T Ethernet port
RJ45 connector
V.24 DCE 9-pin
D-type connector
9
5
6
1
LED status indicator
for Ethernet port
Pin Numbering
Scheme
12345678
