Chapter 39 Hardware procedures 265
Multiservice Switch 7400 Hardware Installation, Maintenance, and Upgrade 6.1S2

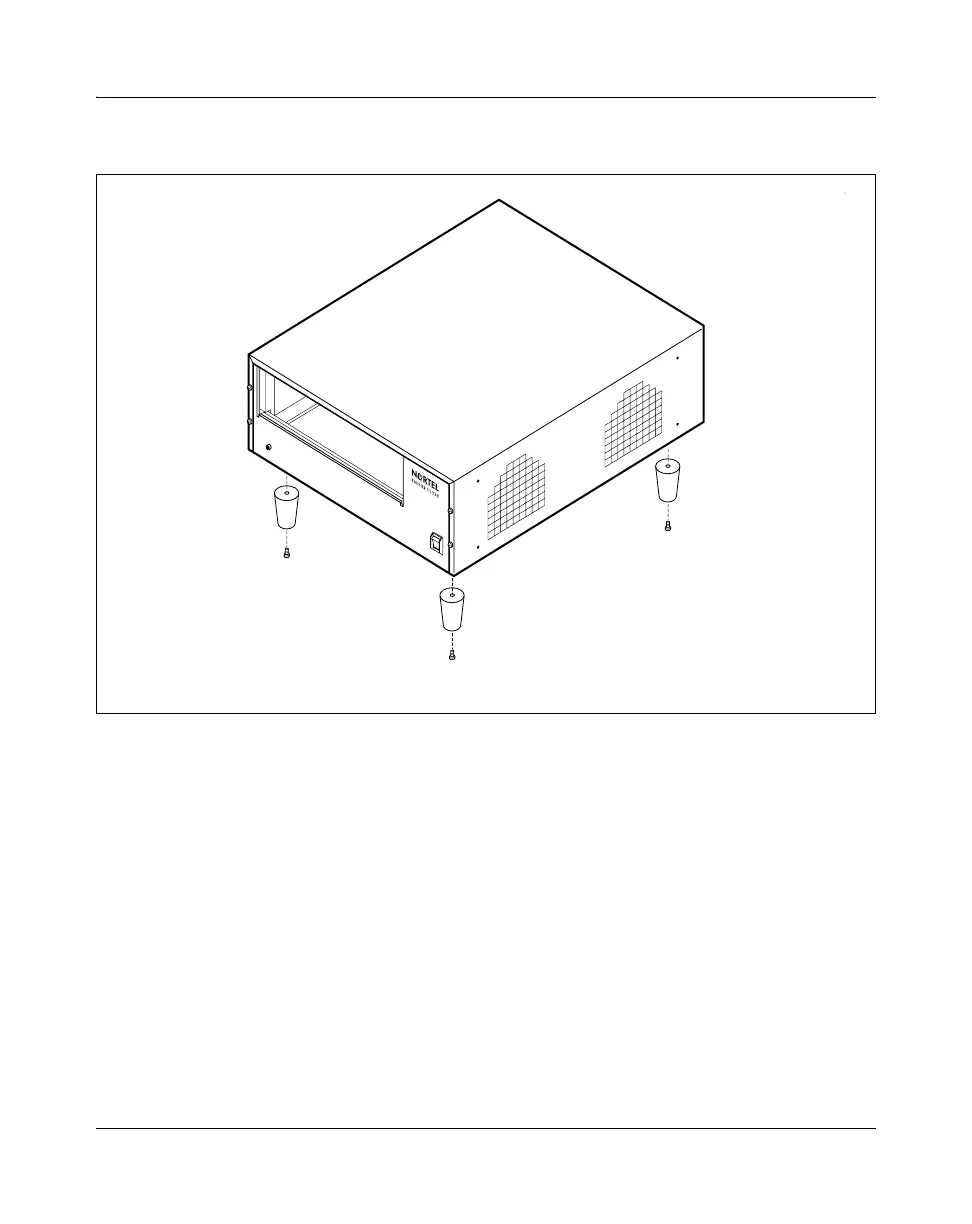

Figure 86
Securing the feet to a desk-top mounted Multiservice Switch 7420
2 Position the chassis according to the site plan.
3 Attach the cable guide to the fan-less side of the chassis using the
hardware provided. See “Cable guide on desk-top mounted Multiservice
Switch 7420” (page 266).
PPT 3221 013 AA
