Chapter 39 Hardware procedures 403
Multiservice Switch 7400 Hardware Installation, Maintenance, and Upgrade 6.1S2

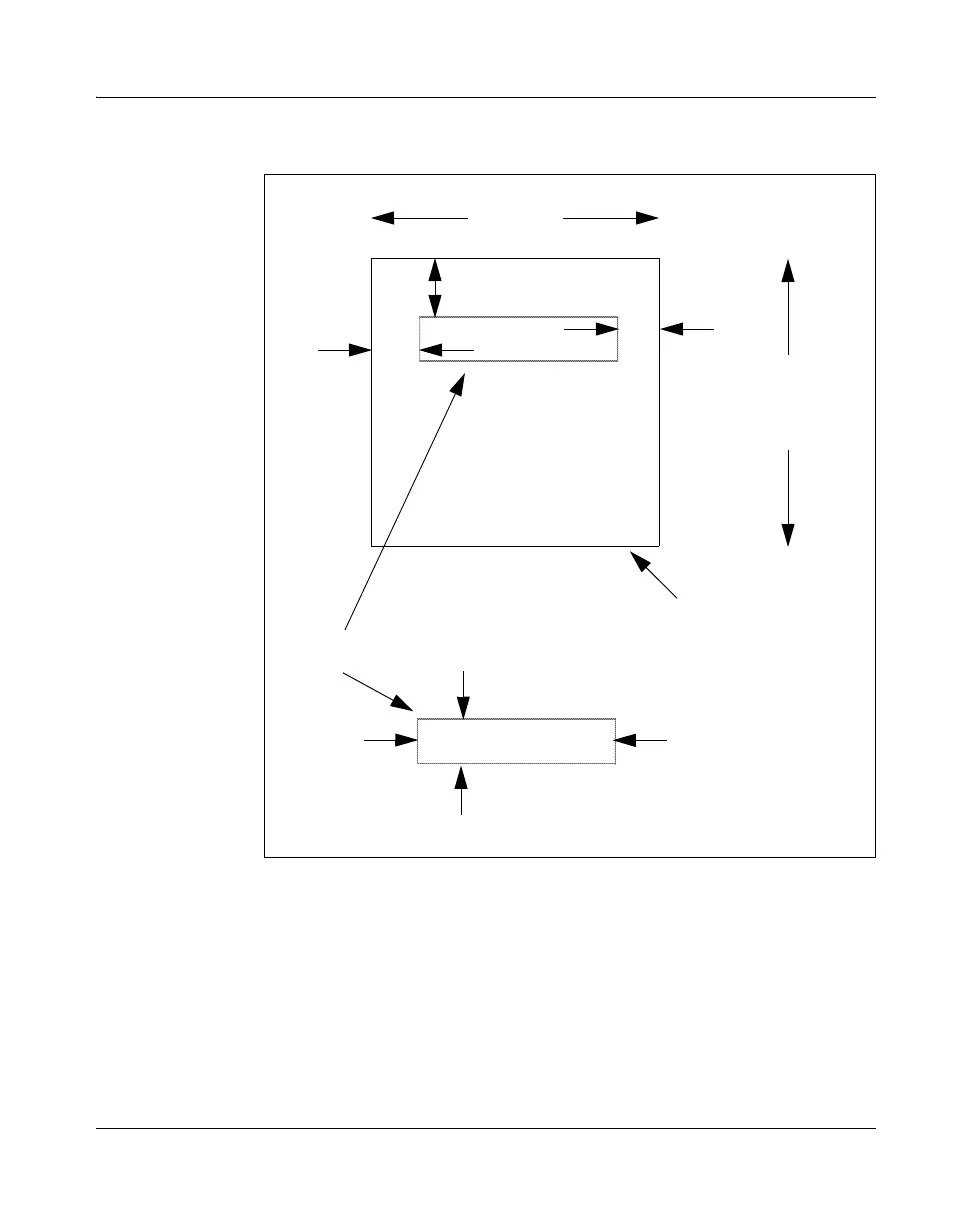

Figure 148
Floor cutout position and size for under floor cable routing
5 Make the cutouts. A cutout 6.4 cm (2.5 in.) by 42 cm (16.6 in.) can
accommodate all cables from a cabinet that contains two fully configured
devices.
6 Smooth any sharp edges on the cutouts that can damage cables.
60 cm
(23.6 in.)
60 cm
(23.6 in.)
8.9 cm
(3.5 in.)
Floor cutout
Front
8.9 cm
(3.5 in.)
9.5 cm
(3.75 in.)
6.4 cm
(2.5 in.)
42 cm
(16.6 in.)
Cabinet footprint
