LCD-160 P/N 51850:A 09/26/2003 15
Additional Hardware Hardware
4.2 Additional Hardware
DP-DISP Dress Panel Display provides for the cabinet mounting of an LCD-160. The DP-DISP
hinge-mounts to the top bay of a CAB-4 series backbox and the LCD-160 mounts directly to
threaded studs on the dress panel. An LCD-160 mounted on an DP-DISP fits in front of most
CAB-4 series chassis as long as the top layer of the chassis is displayless or unoccupied.

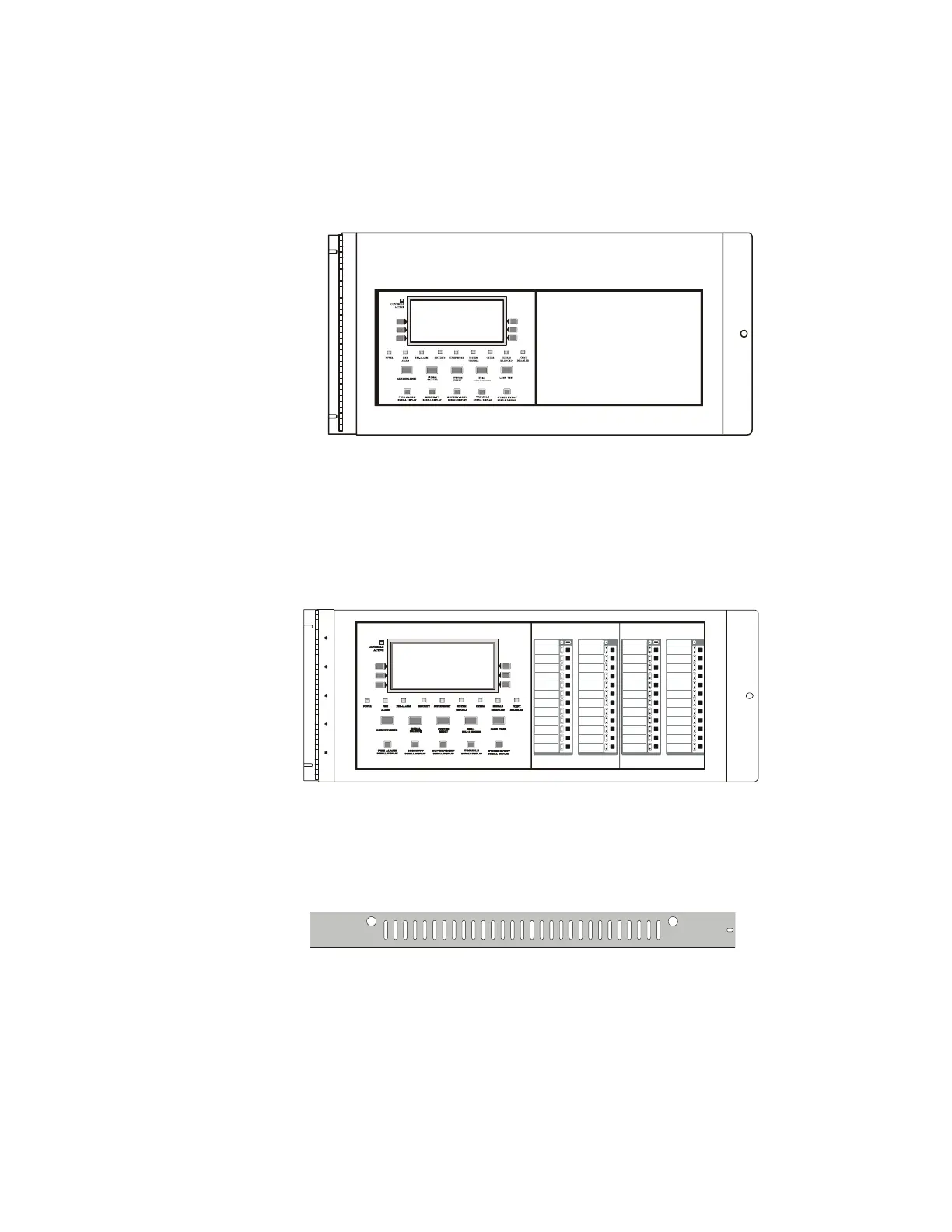

Figure 2 DP-DISP shown with an LCD-160
ADP-4B The Annunciator Dress Panel-4B provides for the cabinet mounting of an LCD-160. The
black ADP-4B hinge-mounts on a CAB-4 series backbox and the LCD-160 mounts directly to
threaded studs on the dress panel. An LCD-160 mounted on an ADP-4B fits in front of most
CAB-4 series chassis as long as the top layer of the chassis is displayless or unoccupied.
Figure 3 ADP-4B shown with LCD-160
VP-2B, VP-2
Use the VP-2B Vented Dress Panel when annunciators are to be installed in the top
row of a Notifier cabinet with the ADP-4B. It covers the gap between the ADP-4B and the top of
the cabinet. It secures to the cabinet with two screws.
AKS-1B, AKS-1 The Annunciator Key Switch provides access security for the control switches on
the LCD-160. The key switch kit includes a key and hardware for mounting to the trim plate of a
flush-mount type annunciator enclosure. An adhesive-backed Annunciator Label for use with the
key switch/dress plate assembly is also included. The “B” version is black.
