20 LCD-160 P/N 51850:A 09/26/2003
Wiring Earth Ground
6.3 Earth Ground
During mounting (see Section 5.1),
the backbox or cabinet should have
been connected to a solid earth
ground such as a cold water pipe.
Connect the LCD-160’s Earth
Ground, located on the RDP
interface, to a mounting screw on
the backbox or cabinet.
(See Figures 8 and 10.)

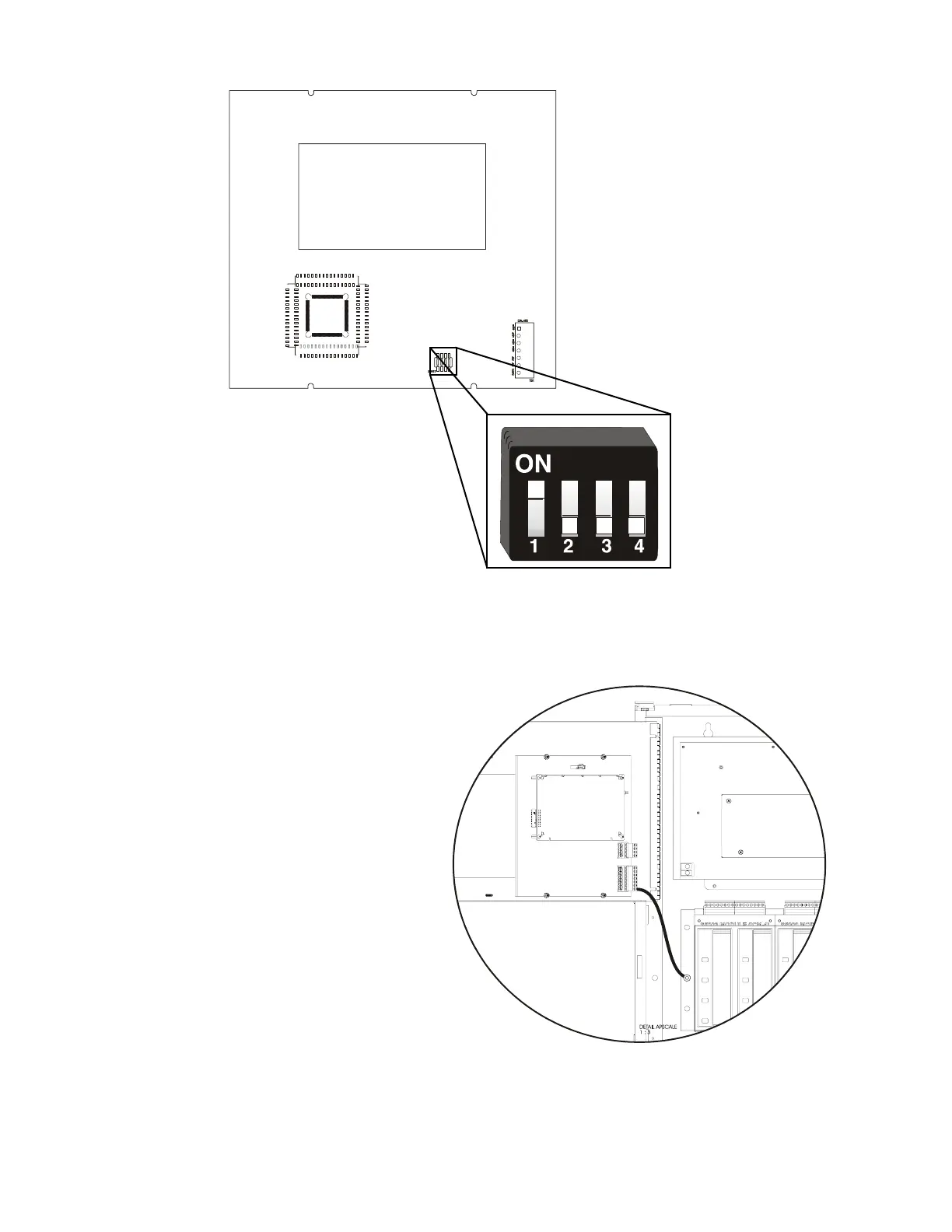

Figure 9 SW17 (ELR Disabled)
LCD160SW17.wmf
LDC160SW17location.wmf
The End-of-Line
Resistor is disabled.
Switch 2 is OFF. The
slider is away from the
display screen.
Figure 10 Grounding the LCD-160
