Product Description Optional Modules
24 XPIQ PN 51013:C 7/01/03
1.7.3 XPIQ-CA Class A Converter Board
An optional Class A Converter Board can be plugged into connector J10 of the XPIQ-MB. This
module allows the conversion of the four Style Y (Class B) speaker circuits to four Style Z (Class
A) speaker circuits.
XPIQ-CA Features
• Removable terminal blocks
• Connector to XPIQ-MB
P1
TB1
TB2
TB3
TB4
SPEAKER 1
SPEAKER 2
SPEAKER 3
SPEAKER 4
XPIQ-CAPCA
REV
.

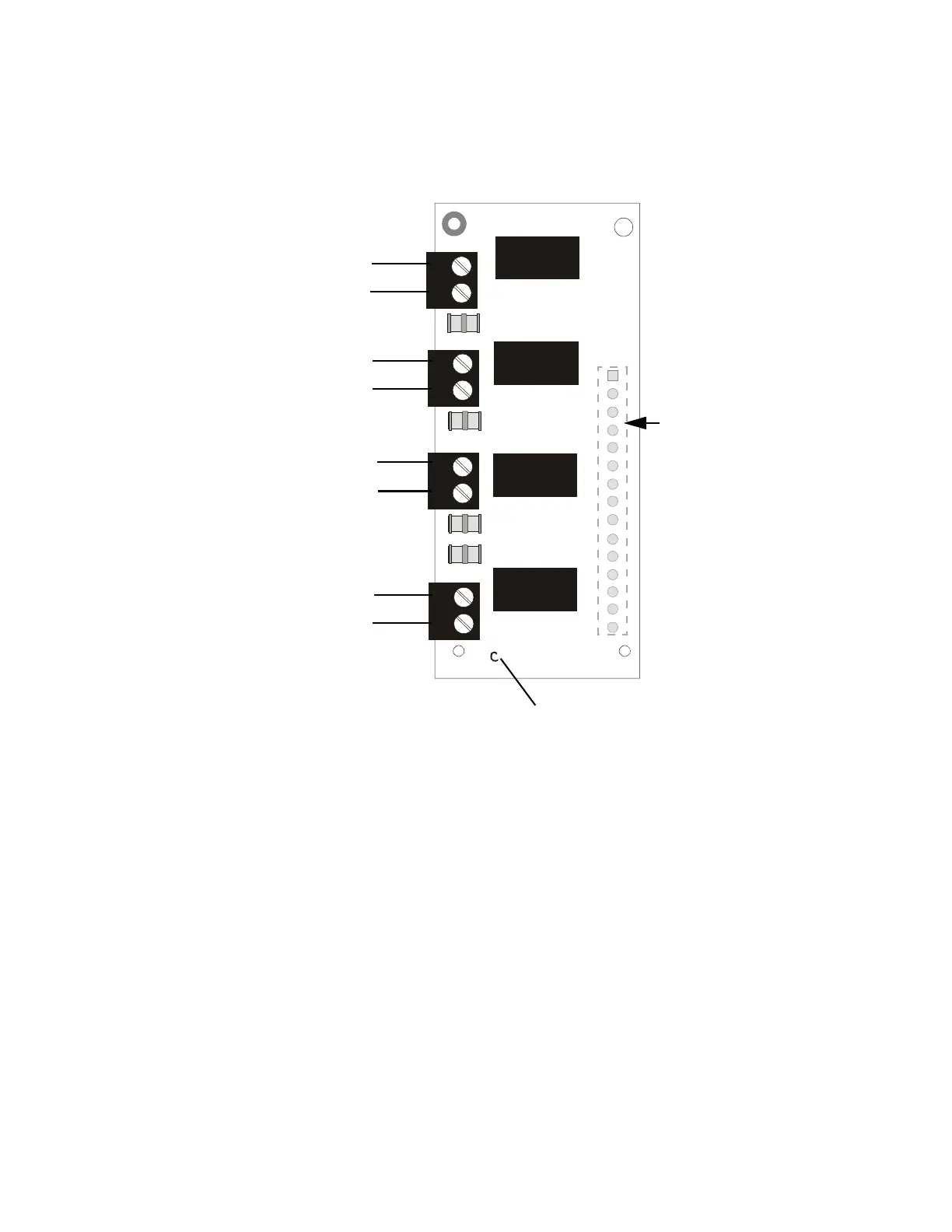

Figure 1.11 XPIQ-CA Class A Converter Module
P1 connects to J10 on XPIQ-MB
+ Return for Class A
+ Return for Class A
+ Return for Class A
+ Return for Class A
- Return for Class A
- Return for Class A
- Return for Class A
- Return for Class A
XPIAclsa1.CDR
XPIQ-CA Revision, handwritten on the board.
Table 1.1 on page 8 defines revision/software
compatibilities.
