Notifier XPIQ User Manual

Product Description
8 XPIQ PN 51013:C 7/01/03
SECTION 1 Product Description
The Notifier
®
XPIQ Quad Intelligent Audio Transponder is a simple solution for distributed multi-
channel voice evacuation systems. It is an integrated, multiple channel audio amplification and
distribution subsystem remotely controlled by an FACP via the SLC (Signaling Line Circuit). It
can direct up to four low level audio signals from the risers to four audio amplifiers. The amplified
audio signals are then directed to up to four integrated, continuously supervised speaker circuits.
The XPIQ is compatible with the following control panels:
NFS-3030 AFP-400 AFP1010 NFS-640
AFC-600 AM2020 AFP-300
Refer to the following table for XPIQ-MB and XPIQ-CA compatibility with XPIQ Audio Amplifiers.
Table 1.1 Board Compatibility with Audio Amplifiers
XPIQ-AA25 XPIQ-AA2270
XPIQ-MB all revisions are compatible XPIQ-MB revision H and higher
XPIQ-CA all revisions are compatible XPIQ-CA revision C and higher
Refer to Figure 1.3 on page 14 for the revision location on the XPIQ-MB, and to Figure 1.11
on page 24 for the XPIQ-CA. The revisions are handwritten on the boards.

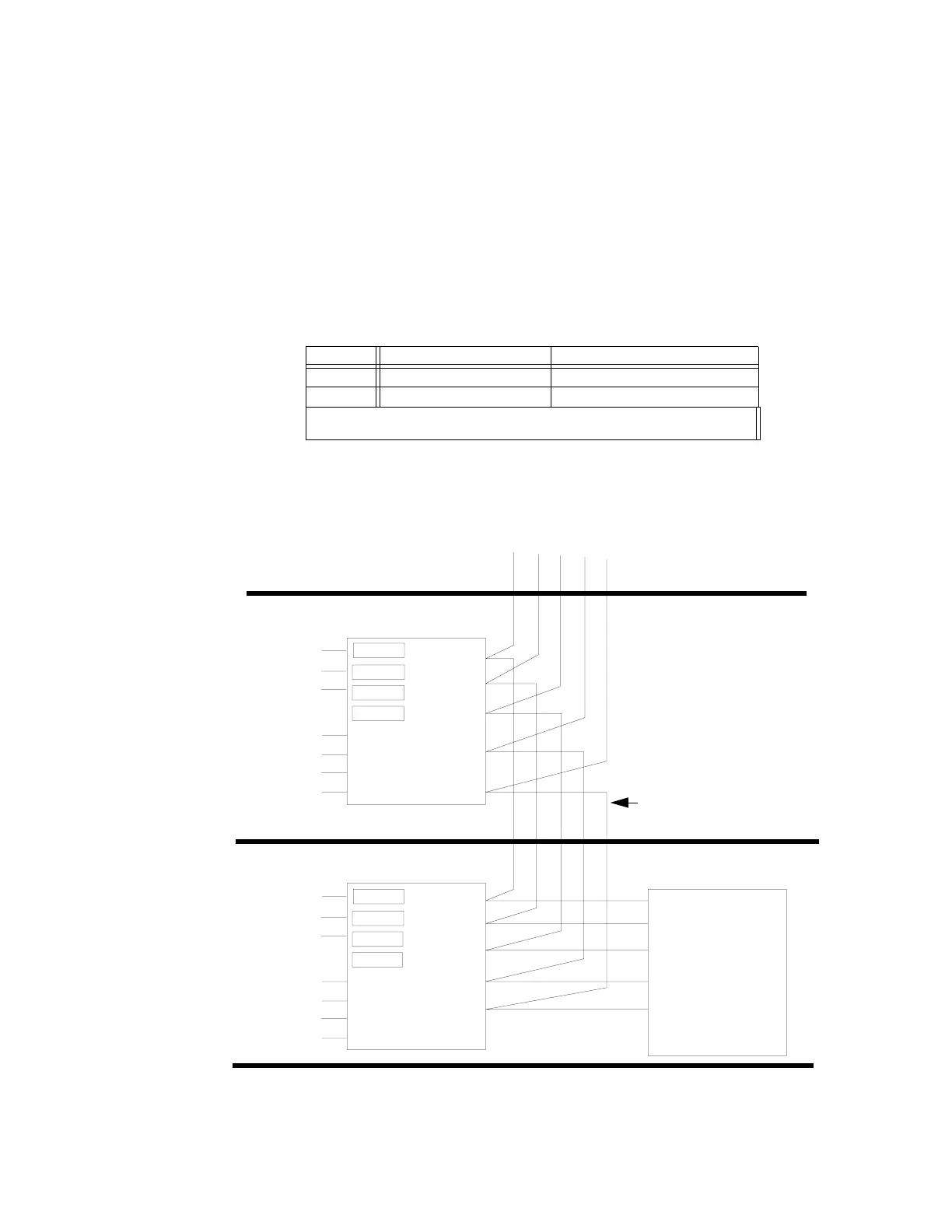

Figure 1.1 XPIQ Distributed Audio Block Diagram
FACP
XPIQ
XPIQ
XPIQ-AA
XPIQ-AA (Backup)
SLC
Page
Evacuate
Alert
Firefighter Telephone
Risers
Speaker Zone 1
Speaker Zone 2
Speaker Zone 3
Speaker Zone 1
Speaker Zone 2
Speaker Zone 3
FFT Zone 1
FFT Zone 2
FFT Zone 3
FFT Zone 4
FFT Zone 1
FFT Zone 2
FFT Zone 3
FFT Zone 4
First Floor
Second Floor
Third Floor
SLC Page
Evacuate Alert
Firefighter Telephone
XPIQ-AA
XPIQ-AA
XPIQ-AA
XPIQ-AA
XPIQ-AA
XPIQ-AA (Backup)
XPIQblok.CDR
