Notifier XPIQ User Manual

Backbox Installation Installation
XPIQ PN 51013:C 7/01/03 27
The CAB-A3 is the cabinet required for a minimum system configuration. The CAB-A3B is the
same cabinet with a blank metal door. For information on other CAB-3/CAB-4 or CAB-3B/
CAB-4B Series cabinets, refer to the appropriate Notifier documentation.
Draw wires through the respective knockout locations.
2.250 in
57.15 mm
0.3125 in
7.9375 m m
dia
0.3125 in
7.9375 mm
dia
19.50 in
495.3 mm
24.00 in
609.6 mm
16.00 in
406.4 mm
4.0 in
101.6 mm
1.625 in
41.275 m m
11.281 in
286.537 mm
20.00 in
508 mm
5.218 in
132.537 mm
2.060 in
52.324 m m
8.625 in
219.075 mm
2.562 in
65.0748 mm

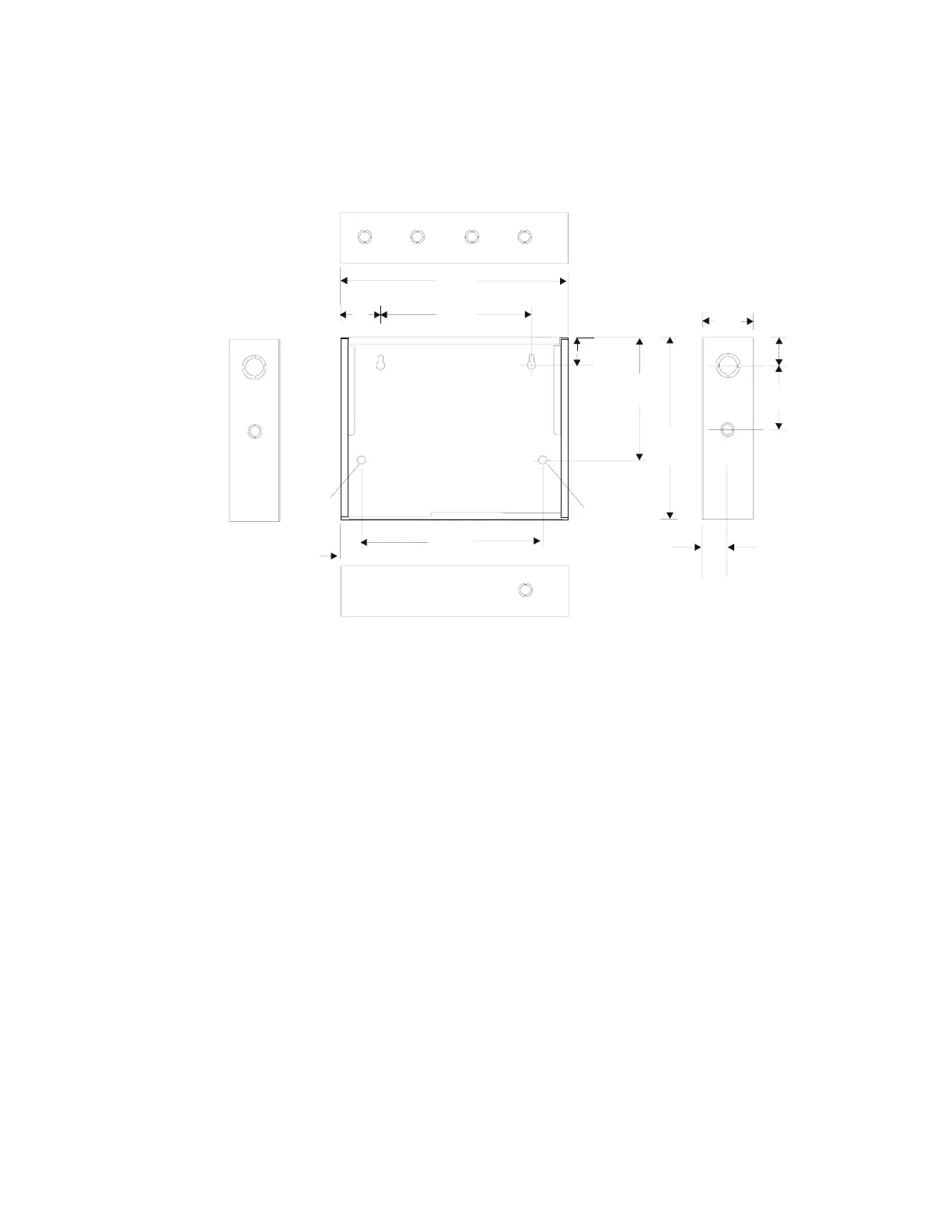

Figure 2.1 CAB-A3/CAB-A3B Dimensions & Knockout Locations
