NovaStar MCTRL300 - MCTRL600 Rear Panel; MCTRL660 Rear Panel

MCTRL660 Independent Controller
Specifications
3 Appearance
www.novastar.tech
4

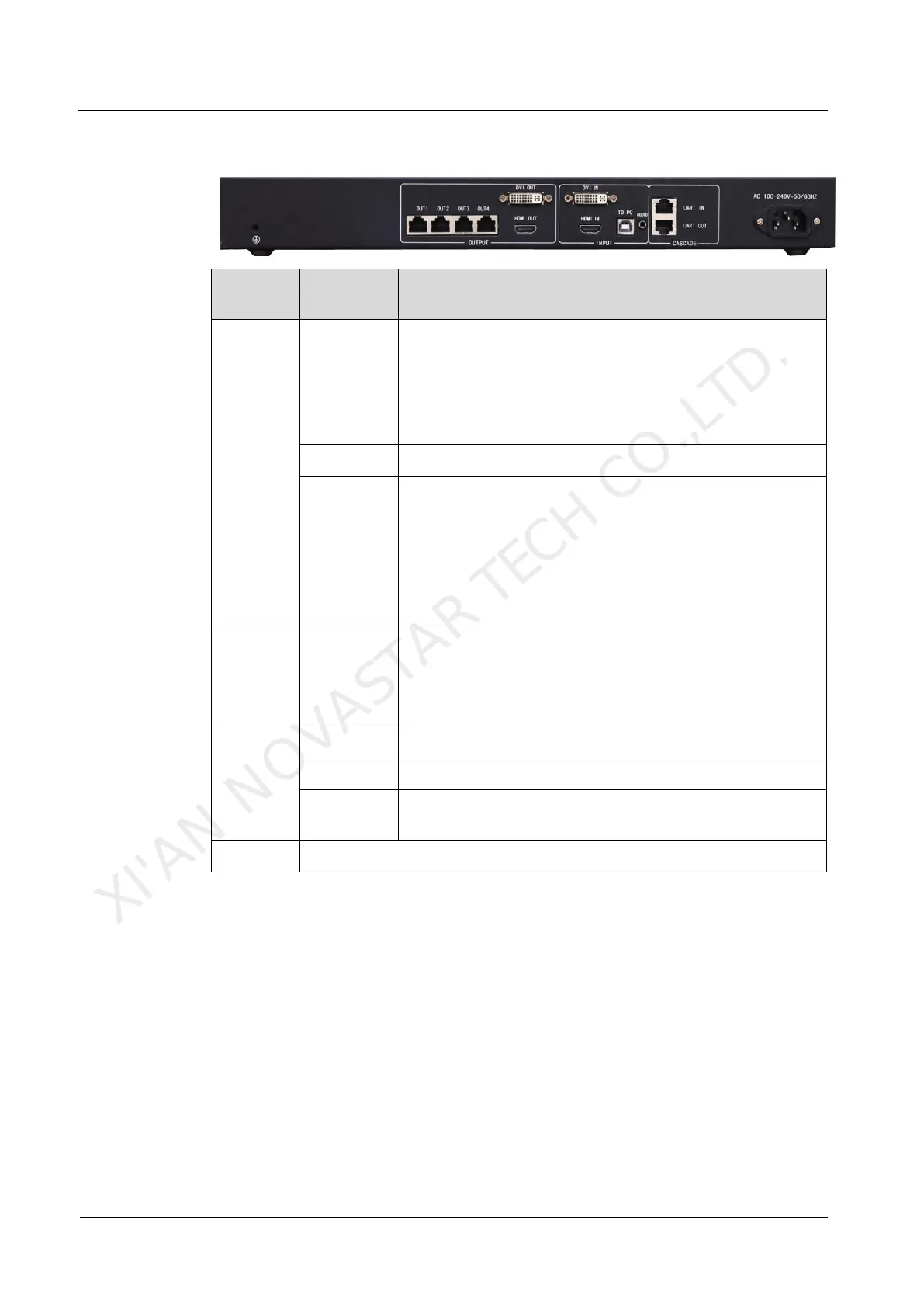

3.2 Rear Panel
Connector
Connector
Name
Description
Input
DVI IN

Single-link DVI input, with a maximum resolution of
1920×1200@60Hz.

Custom resolution supported
Resolution limit with maximum width: 3840×600@60Hz
Resolution limit with maximum height: 800×3840@60Hz
AUDIO
Audio input connector
HDMI IN

HDMI 1.3 input, with a maximum resolution of
1920×1200@60Hz.

HDCP 1.4 compliant

Custom resolution supported
Resolution limit with maximum width: 3840×600@60Hz
Resolution limit with maximum height: 800×2560@60Hz
Output
RJ45 × 4

4 × Gigabit Ethernet outputs

Maximum loading capacity of each Ethernet port: 650,000
pixels

Support redundancy between Ethernet ports.
Control
TO PC
Type-B USB port for connecting to PC
UART IN
Input port for cascading devices
UART OUT
Output port for cascading devices. Up to 20 controllers can
be cascaded.
Power
AC 100V~240V-50/60Hz
