NovaPro HD User's Manual
www.novastar.tech -5-

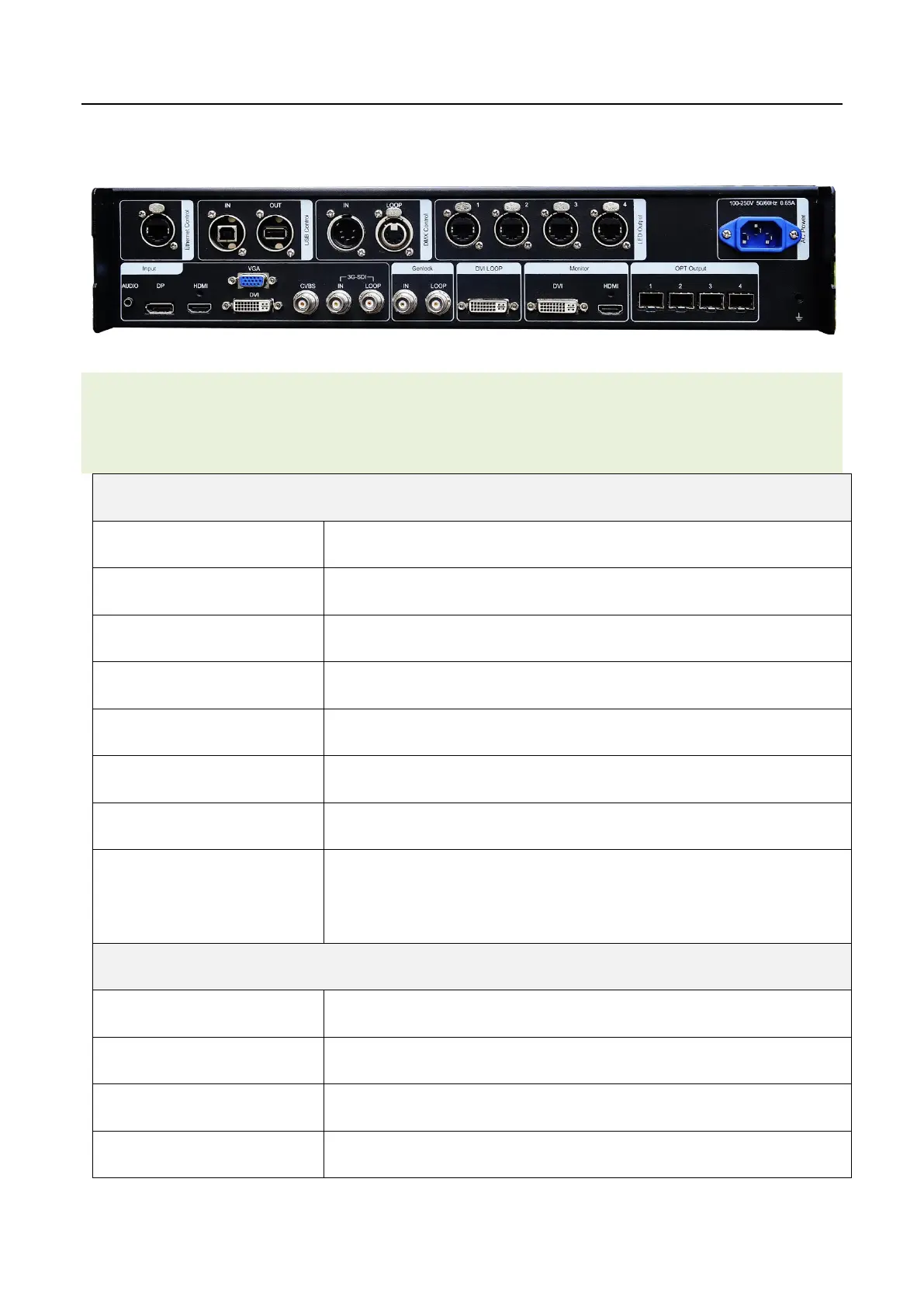

3.2 Rear Panel
Note: In order to improve user’s experience, layout of the interfaces may be adjusted
a little. The picture is only for reference.
Inputs
Audio
Audio Input
DP
DP Input
HDMI
HDMI Input
DVI
DVI Input
VGA
VGA Input
CVBS
PAL/NTSC TV Composite Video Inputs
3G-SDI IN
3G-SDI Input
Genlock IN
Synchronizing signal to guarantee the images on display
is synchronous with external Genlock source.
Outputs
3G-SDI LOOP
3G-SDI loop output
GenLock LOOP
Genlock loop output
DVI LOOP
DVI loop output
Monitor -DVI
Monitoring connector
