synchronous with it.
Main source/PIP source: Input source switching of main screen and PIP is the same
as the function of input source switching button on front panel.
Width (H): Horizontal width of PIP
Height (V): Vertical height of PIP
Start X: Horizontal coordinates of PIP
Start Y: Vertical coordinates of PIP
Transparency: Transparency of PIP

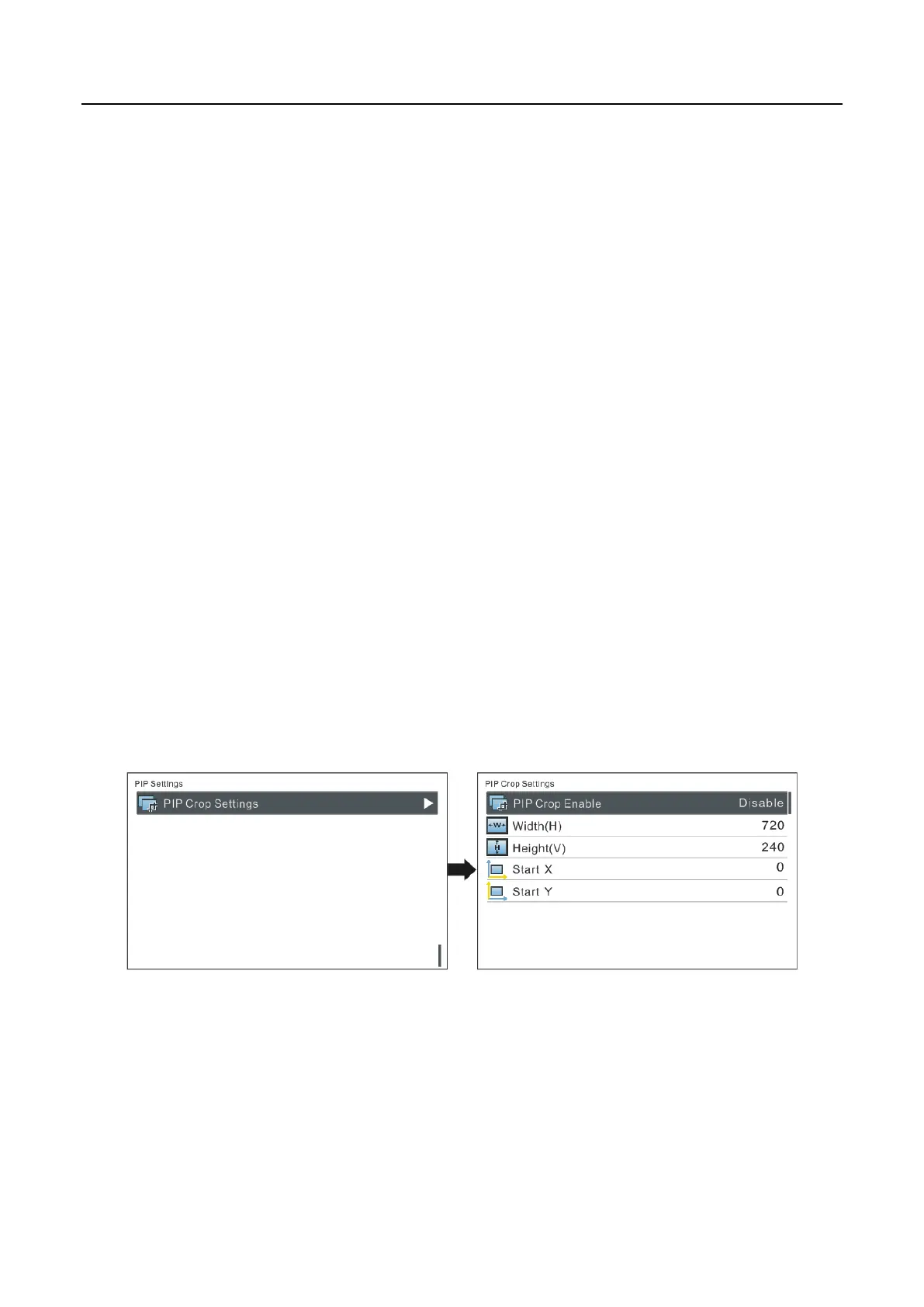

PIP Crop Settings:
Image cropped from the set starting position will be displayed on PIP and its size is
the set horizontal width and vertical height.
Please enable this function before setting horizontal width, vertical height, start X and
start Y.
6.8.2 Advanced Configuration
If the number of cabinets loaded by each Ethernet port is different and the
preconditions of screen settings are not met, advanced configuration can be used now.
