MCTRL600 Independent Controller
Specifications
3 Appearance
www.novastar.tech
3

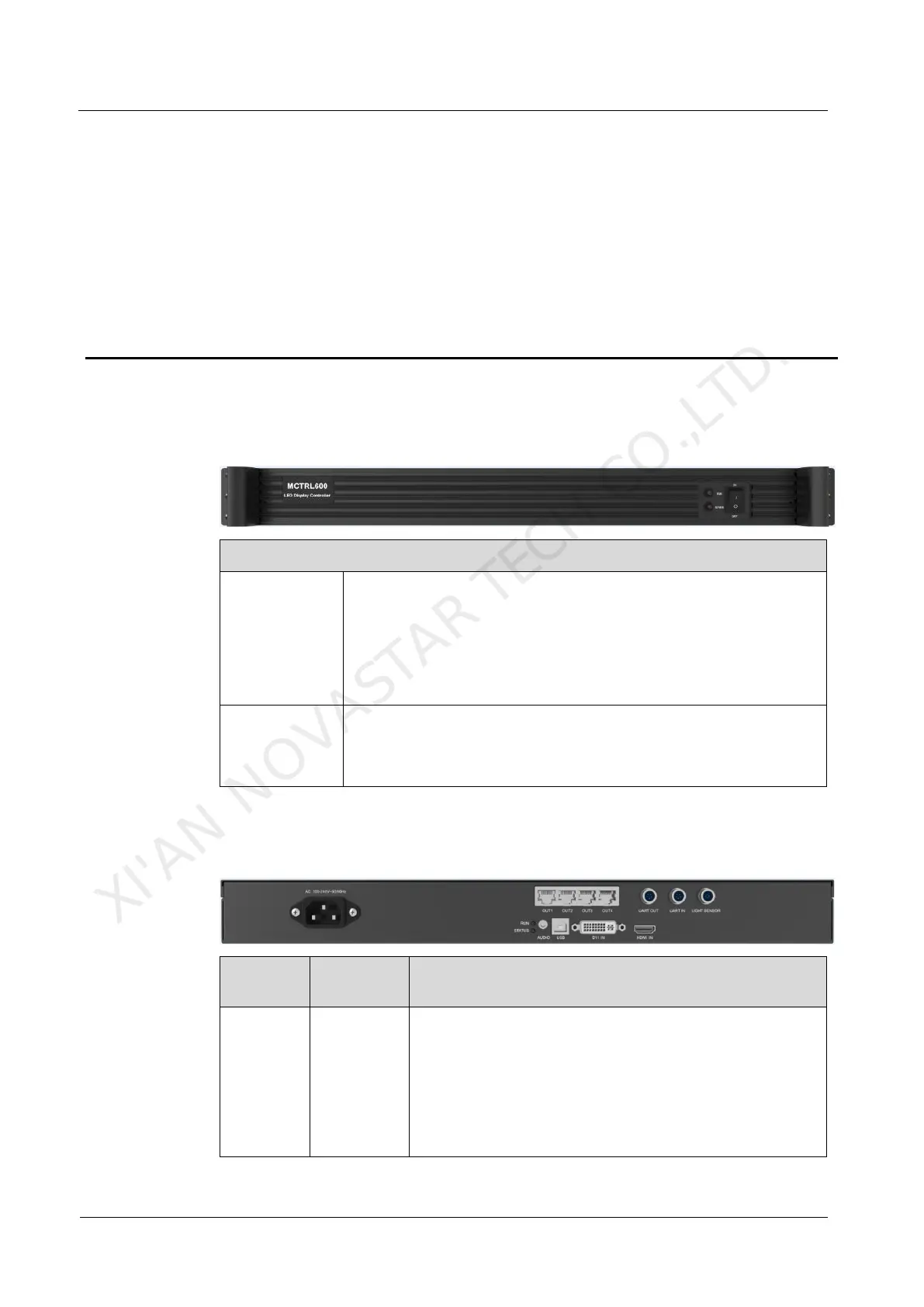

3 Appearance
3.1 Front Panel
Indicators
RUN
Device operating indicator. Working status:

Flashing slowly: Video input unavailable

Flashing normally: Video input available

Flashing rapidly: The screen is displaying startup image.

Breathing: Ethernet port redundancy has taken effect.
STATUS
Device power indicator. Working status:

On: The power supply is normal.

Off: The power is not supplied, or the power supply is abnormal.
3.2 Rear Panel
Connector
Connector
Name
Description
Input
DVI IN

Single-link DVI connector

Resolution up to 1920×1200@60Hz and downward
compatible

Custom resolutions supported:
Resolution with maximum width: 3840×600@60Hz
Resolution with maximum height: 800×2560@60Hz
