NovaPro HD User's Manual
www.novastar.tech -7-
Connect the required hardware devices referring to the interface descriptions in
previous chapters.
Note: Please turn OFF POWER before signal connection.

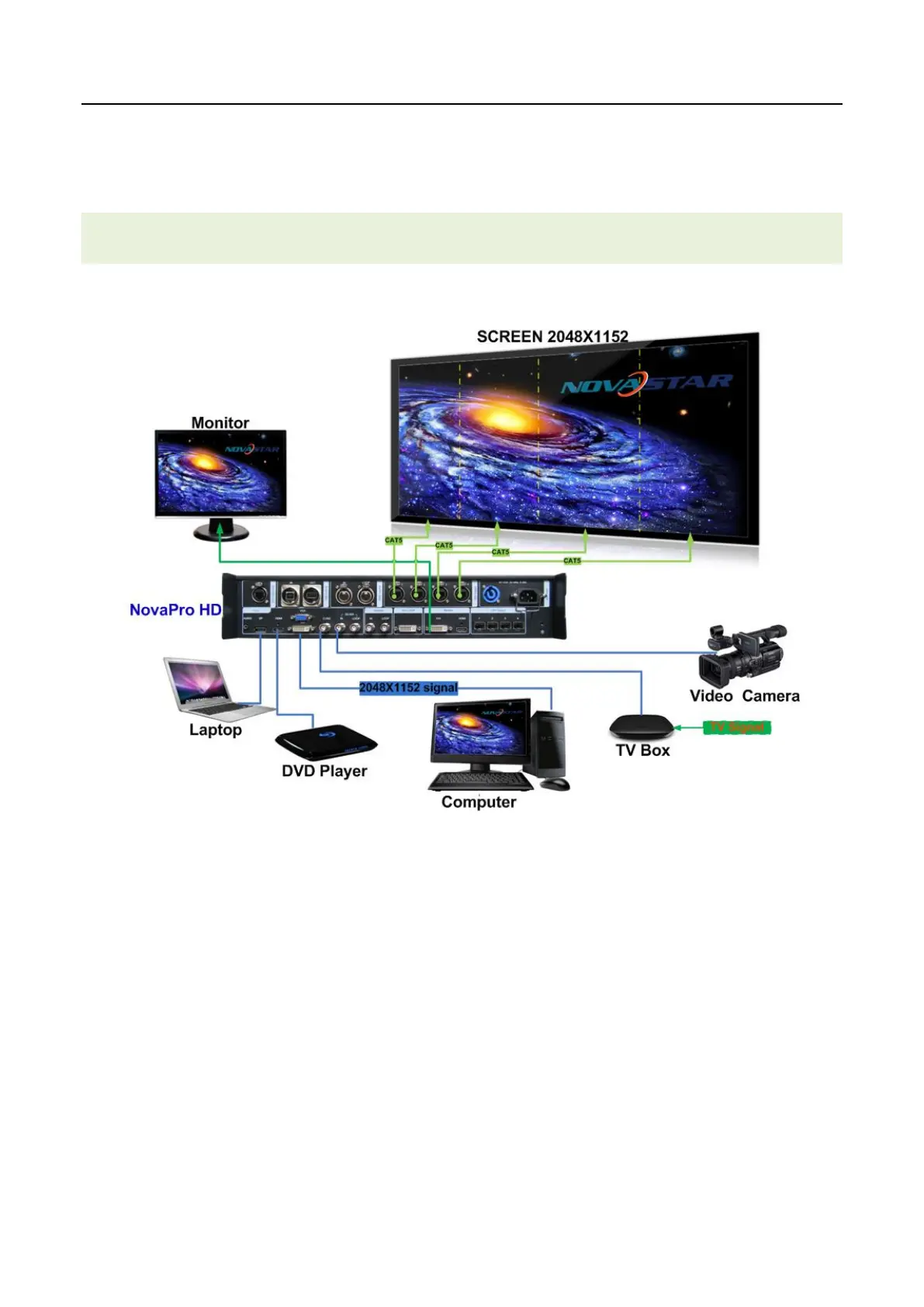

Fig. 4-1 Signal Connection
Multiple Units Connection Sketch
Video Source Connection
