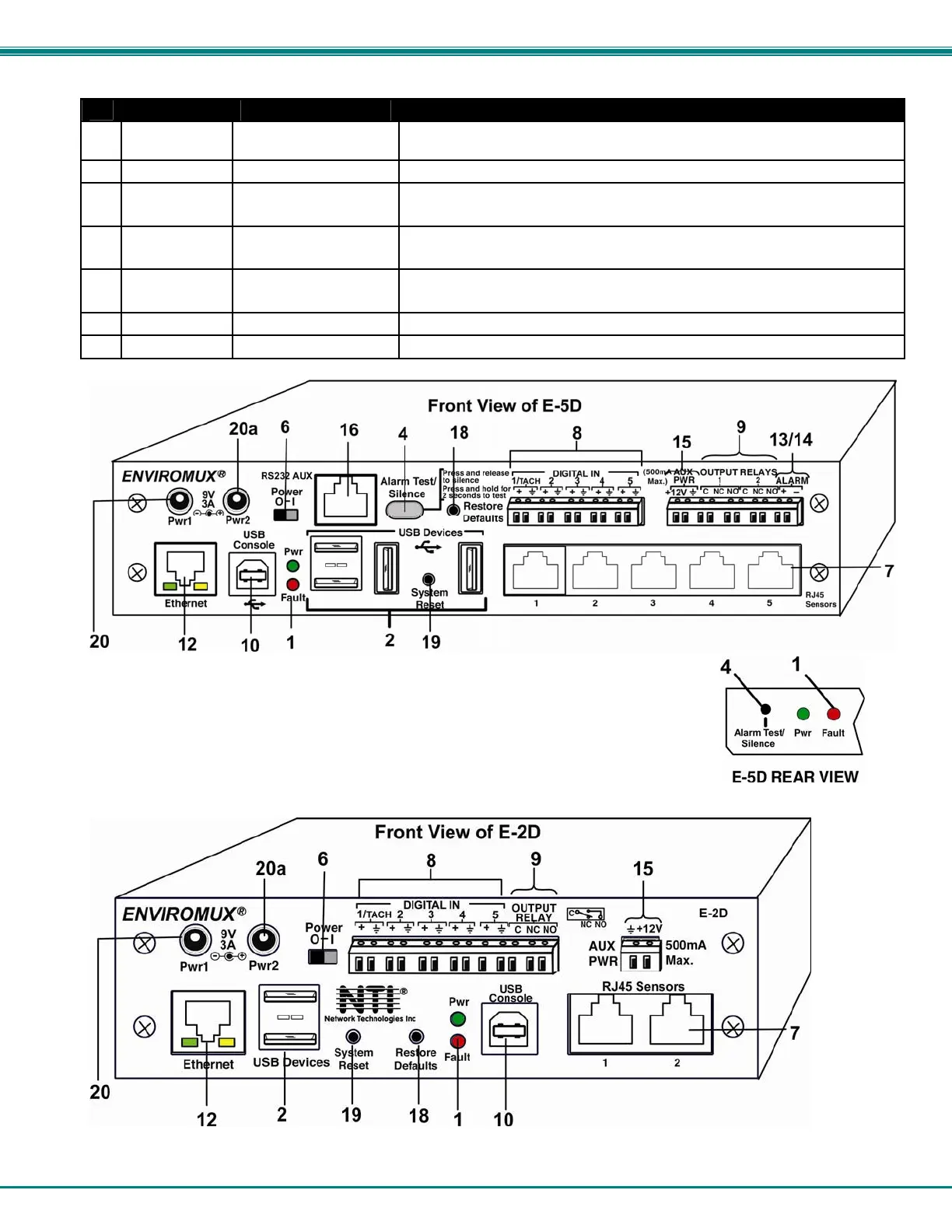

NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
6
#
LABEL CONNECTOR DESCRIPTION
15
Aux Pwr Terminal block for powering an auxiliary device with 12VDC power at 150mA maximum (fuse
protected)
16
RS232 AUX RJ45 female for connection of a serial modem or remote RS232 device to be controlled
17
Cascade
In / Out
RJ45 female
connectors
used for RS485 method of cascading multiple E-16D units
18
Restore
Defaults
Reset Button for manually restoring the ENVIROMUX back to factory settings
(see page 119 for details)
19
System Reset Reset Button for manually resetting the system (rebooting) the ENVIROMUX
(see page 119 for details)
20
9V 3A- PWR1 2.1x5.5mm Power Jack for connection of primary power supply
20a
9V 3A- PWR2 2.1x5.5mm Power Jack for connection of backup power supply
