NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
13
Alarm(Beacon/Siren) Connections
Terminals have been provided for connection of the E-BCN-R Beacon and E-SRN-M Siren to use for visual alerts and audible
alerts when configured. Devices such as this can be installed in locations best suited to get attention. The terminals for
these connections will accept 16-26 AWG wire.
Note: The maximum combined load that can be
connected to the “AUX PWR” terminals on the
E-5D / -2D is 500mA. (For the
E-16D the maximum is 150mA.)

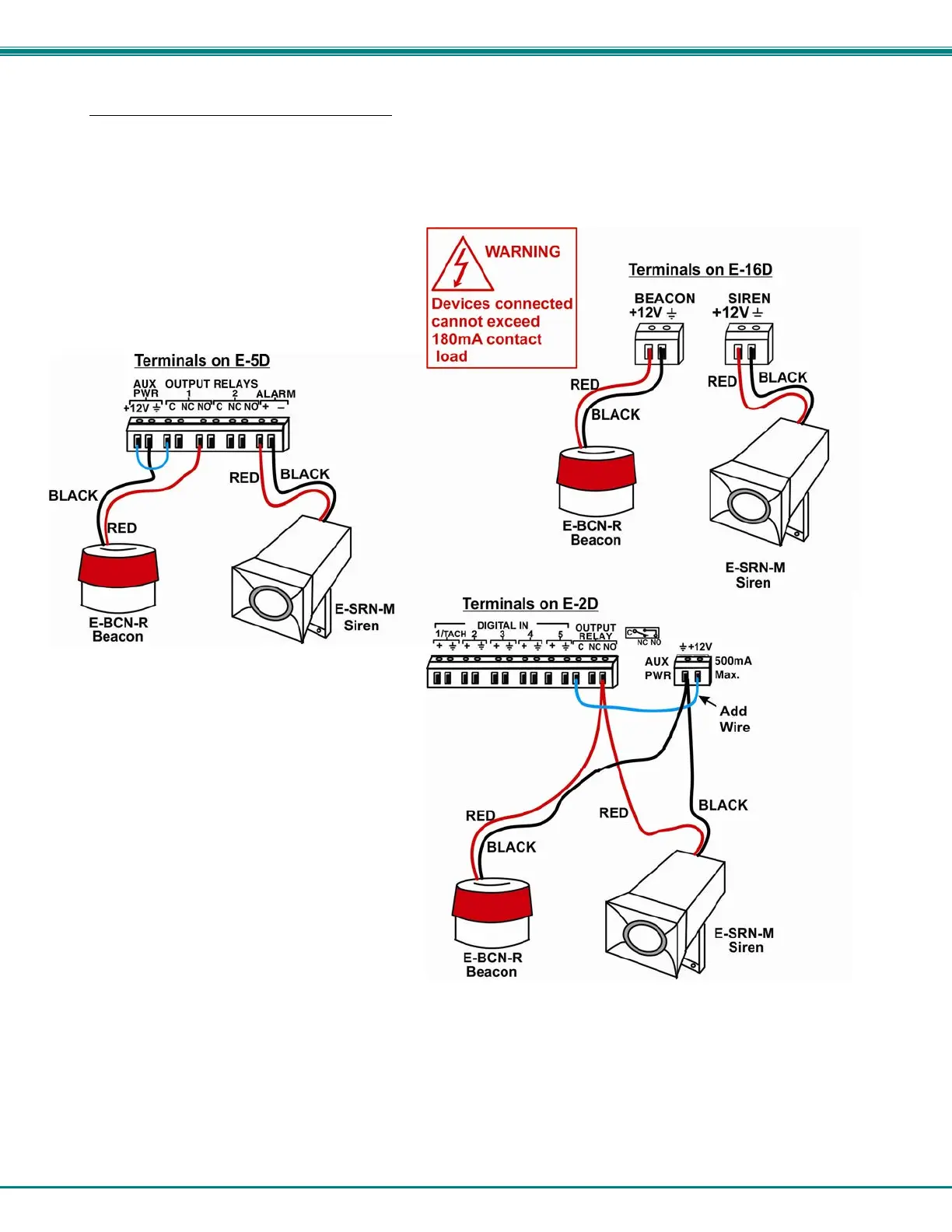

Figure 12- Connect visual and audible external indicators
