NTI ENVIROMUX E-2D User Manual

NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
54
Monitor Output Relay
Output relays are provided to control external devices with a rating of up to 1A, 30VDC or 0.5A, 125VAC. Each relay state is
monitored to be either inactive (relay is at rest; contacts as indicated by product markings) or active (relay is energized; contacts
are opposite that of product markings). The status of the relay can be changed either manually through the web interface, or as
a result of an alert (page 43).
Remote Output Relays are those located on E-DI16DO(R)16 Digital Input/Output Expanders and are configured in the same way
as Output Relays on the E-xD. See the manual for the E-DI16DO(R)16 for more.

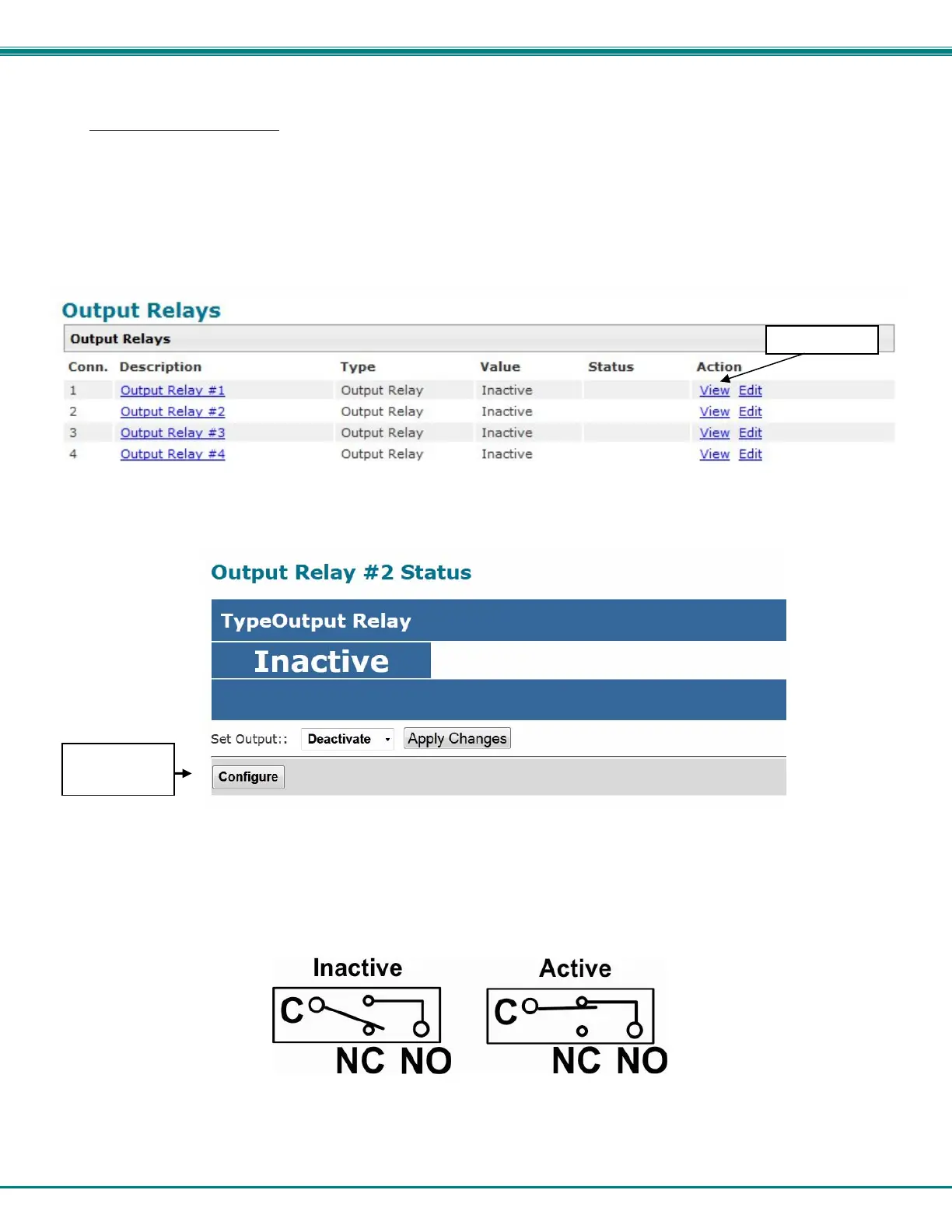

Figure 54- Monitoring Output Relays
Figure 55- Output Relay Status
To test your connections and set the state of the relay manually, from the relay status page (Figure 55), select the arrow next to
Set Output to drop down the w
indow and select either “Deactivate” or “Activate”. Then click the “Apply Changes” button.
The relay state can also be changed using SNMP. See page 77 for details.
Figure 56- Output Relay Contact State
Click “View”
Click
“Configure”
