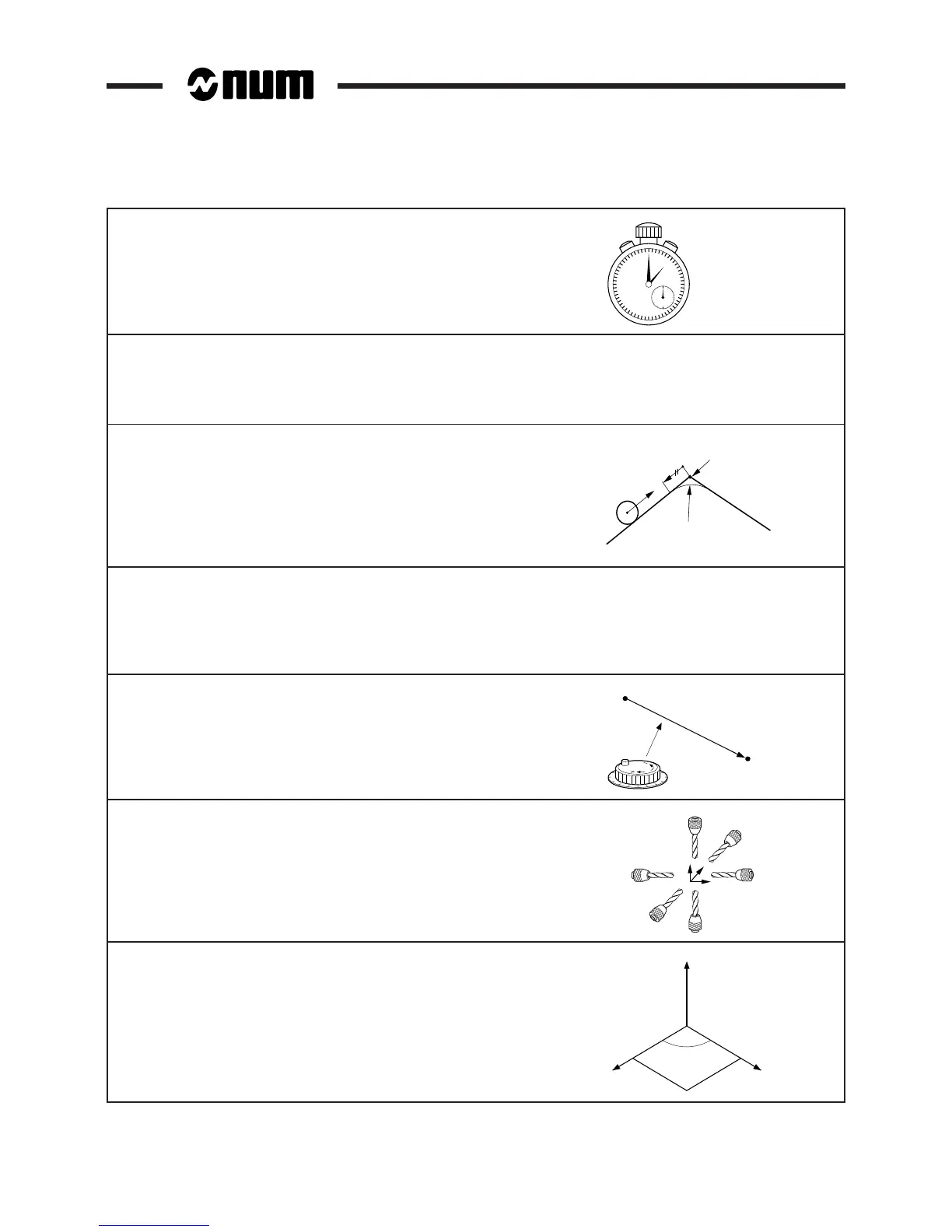

G04: Programmable dwell
60
30
1545
Syntax: N.. G04 F..
Cancellation: end of block
G06: Spline curve execution order
Syntax: N.. G06 NC..
Cancellation: end of block
G09: Accurate stop at end of block before sequencing to next block
ε p
Without G09
Programme point
reached with G09
Syntax: N.. G09 [G00/G01/G02/G03] X.. Y.. Z.. [F..]
Cancellation: end of block
G10: Interruptible block
Syntax:
N.. [G40] [G04] [G00/G01/G02/G03] X.. Y.. Z.. G10 [:n] [+X.. or F..] [@n < > Value] N.. [+ Number] [EF..]
Cancellation: end of block
G12: Rapid feed by handwheel
Feed rate
Syntax: N.. [G01/G02/G03] G12 X.. Y.. Z.. [F..] [$0...]
Cancellation: end of block
G16*: Definition of the tool axis orientation with addresses P, Q, R
Z
Y
X
R+
Q+
P+
R-
Q-
P-
Syntax: N.. G16 P±/Q±/R±
Cancellation: G16 P±/Q±/R±
G17*: XY plane selection
G 17
XY
X
Y
Z
Syntax: N.. G17
Cancellation: G18/G19
