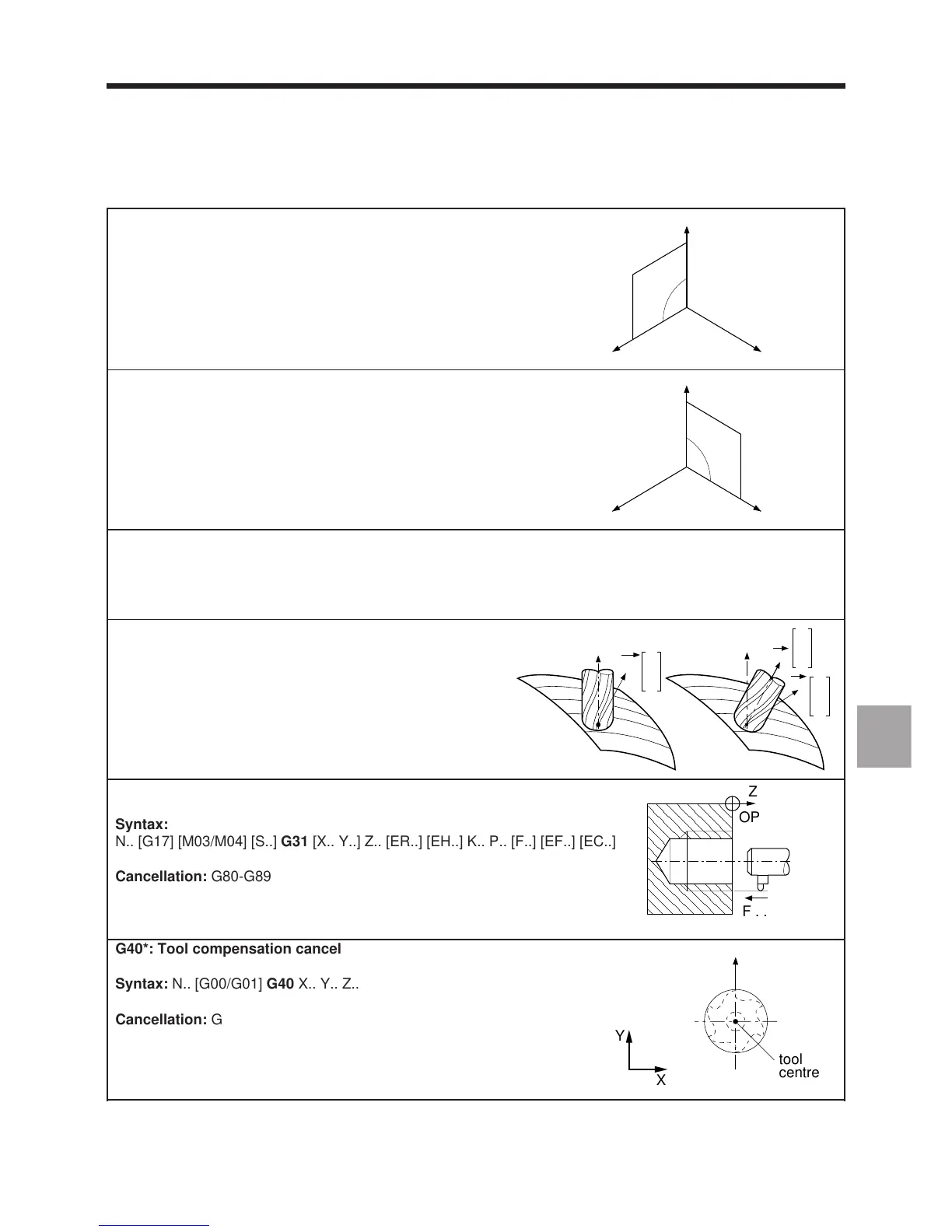

Function Summary Tables
en-938821/2 A - 5
A
G18: ZX plane selection
G 18
ZX
X
Y
Z
Syntax: N.. G18
Cancellation: G17/G19
G19: YZ plane selection
G 19
YZ
X
Y
Z
Syntax: N.. G19
Cancellation: G17/G18
G23: Circular interpolation defined by three points
Syntax (XY plane): N.. [G17] [G90/G91] G23 X.. Y.. I.. J.. [F..]
Cancellation: end of block
G29: 3D tool correction with toroidal or spherical tool
n
P
Q
R
Z
o
I
J
K
Z
n
P
Q
R
Syntax:
N.. [D..] [G01] G29 X.. Y.. Z.. P.. Q.. R.. [I.. J.. K..] [A.. /B.. /C..]
Cancellation: G40/G41/G42
G31: Thread chasing cycle
,,,
,,
,
,,
,,
,,,
,,
,,
,,,,,
,,
,,
,,,,,,,
,,
,,
,,,,,,,,,
,,
,,
,,,,,,,,,,,
,,
,,
,,,,,,,,,,,,,
,,
,,
,,,,,,,,,,,,,,
,,
,,
,,,,,,,,,,,,,,
,,
,,
,,,,,,,,,,,,,,
,,
,,
,,,,,,,,,,,,,
,,
,,
,,,,,,,,,,,
,,
,,
,,,,,,,,,
,,
,,
,,,,,,,
,,
,,
,,,,,
,,
,,
,,,
,,
,,
,
,,
,,, ,
Z
OP
F . .
Syntax:
N.. [G17] [M03/M04] [S..] G31 [X.. Y..] Z.. [ER..] [EH..] K.. P.. [F..] [EF..] [EC..]
Cancellation: G80-G89
G40*: Tool compensation cancel
Y
X
tool
centre
Syntax: N.. [G00/G01] G40 X.. Y.. Z..
Cancellation: G29/G41/G42
