2.1.2 NUM 1020, 1040 and 1050
2.1.2.1 NUM 1020, 1040 and 1050 with CNC Panel or Compact Panel

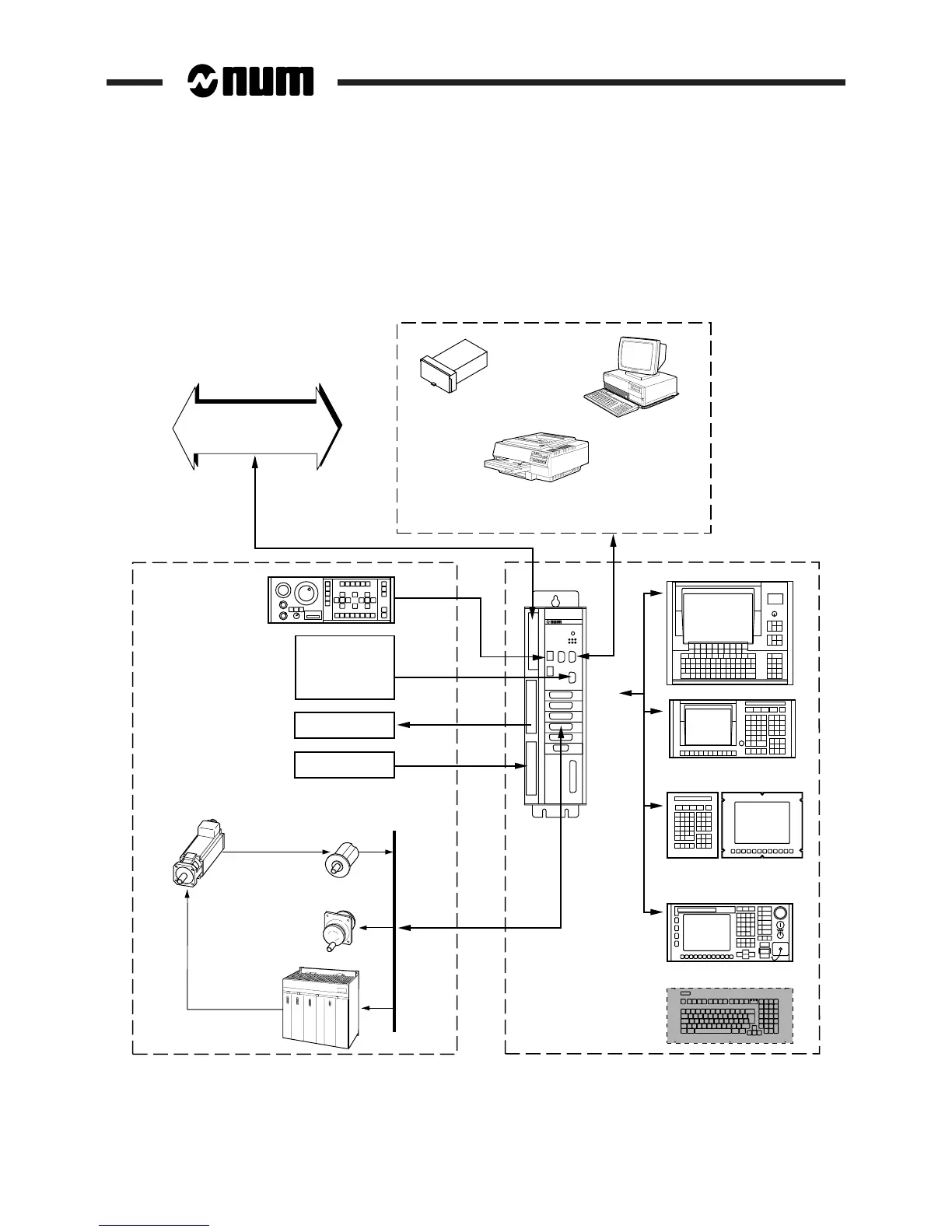

The following diagram illustrates the links between the CNC, the machine and the peripherals for a NUM 1020, 1040
or 1050 system with CNC panel or LCD panel or compact panel.
External
interrupts
(measurement
probes)
Actuators
Sensors
Serial line
NUM 1020, 1040
or 1050 CNC
Servo-drive
Motor
Movement
sensor
Additional
handwheels
Axes
MACHINE
PC or PS
PERIPHERALS
Diskette
drive
Printer
Compact panel
Optional keyboard
Panel
50-key LCD panel
or
INDUSTRIAL NETWORKS
• UNI-TELWAY
• FIPWAY
∗
∗ The compact panel is incompatible with the machine panel. An optional keyboard can be connected to the compact
panel.
