NUUO NVRmini 2 - Modify the FTP Protocol Settings

42

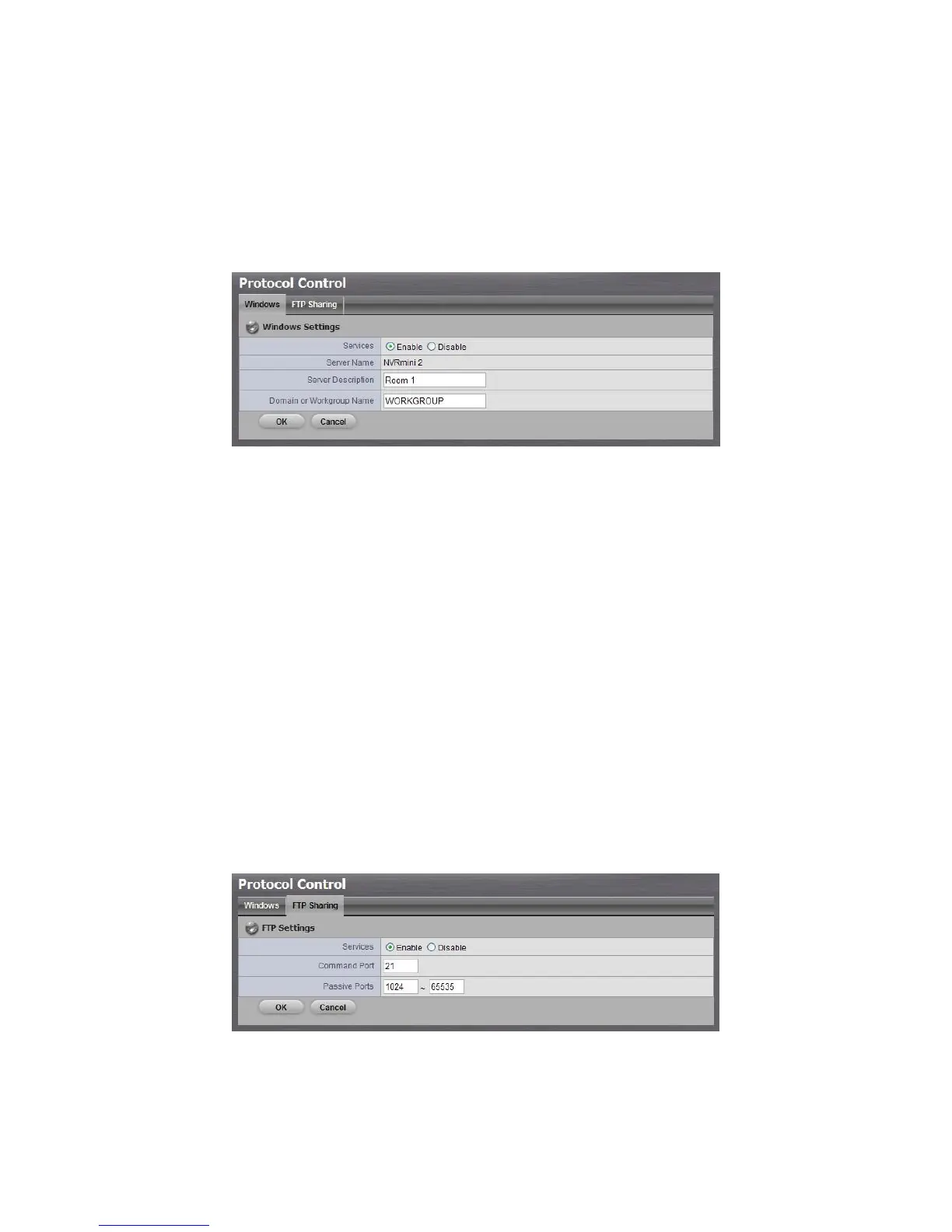

1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / Protocol Control.
3. Click the Windows tab.
4. Check and enter the unit’s information.
5. Click the OK button.
 Services: Enable to let users access this unit through Windows Explorer.
 Server Name: The name of this unit, which is set in the Setup tab of the
Network Setup function.
 Server Description: The name which will be displayed in Windows
Explorer.
 Domain or Workgroup Name: The name of this unit’s workgroup.
2.3.8 Modify the FTP Protocol Settings
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / Protocol Control.
3. Click the FTP Sharing tab.
4. Check and enter the settings of this unit.
5. Click the OK button.
 Services: Whether users can access this unit through FTP or not.
 Command Port: The port for commands between a server and a client.
 Passive Ports: The data transmission port of passive mode.
