Connections, Controls, and Indicators
DGX Station DU-08255-001 _v4.6|84

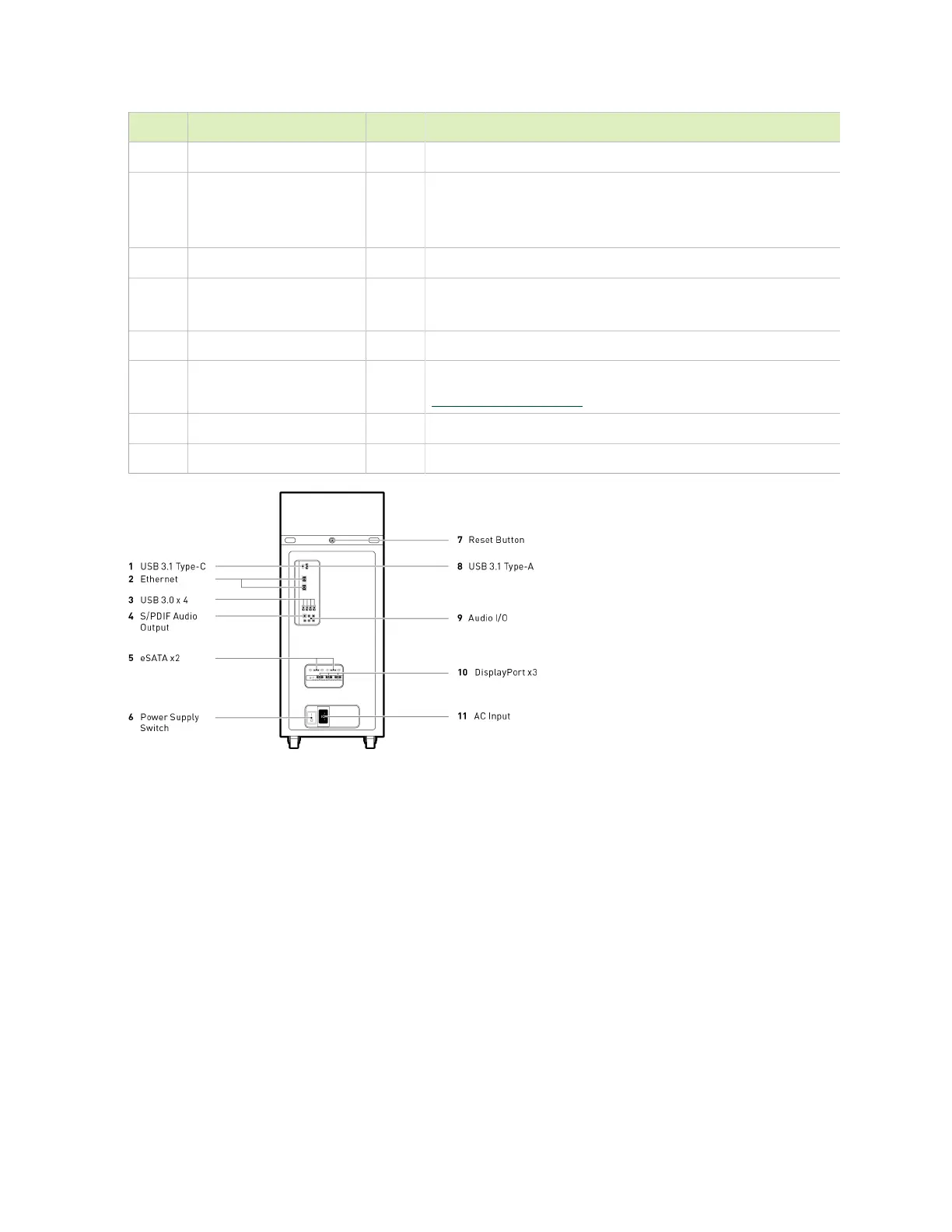

ID Type Qty Description
4 S/PDIF Audio Output 1 Optical S/PDIF out port
5 eSATA 2 eSATA ports for connecting external storage devices, such
as hard drives or optical drives, with an external power
supply
6 Power Supply Switch 1 Turn the power supply on and off
7 Reset Button 1 Press to reboot the system without turning off the system
power
8 USB 3.1 Type-A 1 USB 3.1 Type-A port
9 Audio I/O 5 3.5 mm I/O ports for 2-, 4-, 6-, or 8-channel audio (see
Audio I/O Connections)
10 DisplayPort 3 Ports for connecting up to 3 displays
11 AC Input 1 Power supply input
B.3. LAN Port Indicators
LEDs on each Ethernet LAN port indicate the connection status as illustrated in the following
figure and described in the following tables.
