Connections, Controls, and Indicators
DGX Station DU-08255-001 _v4.6|85

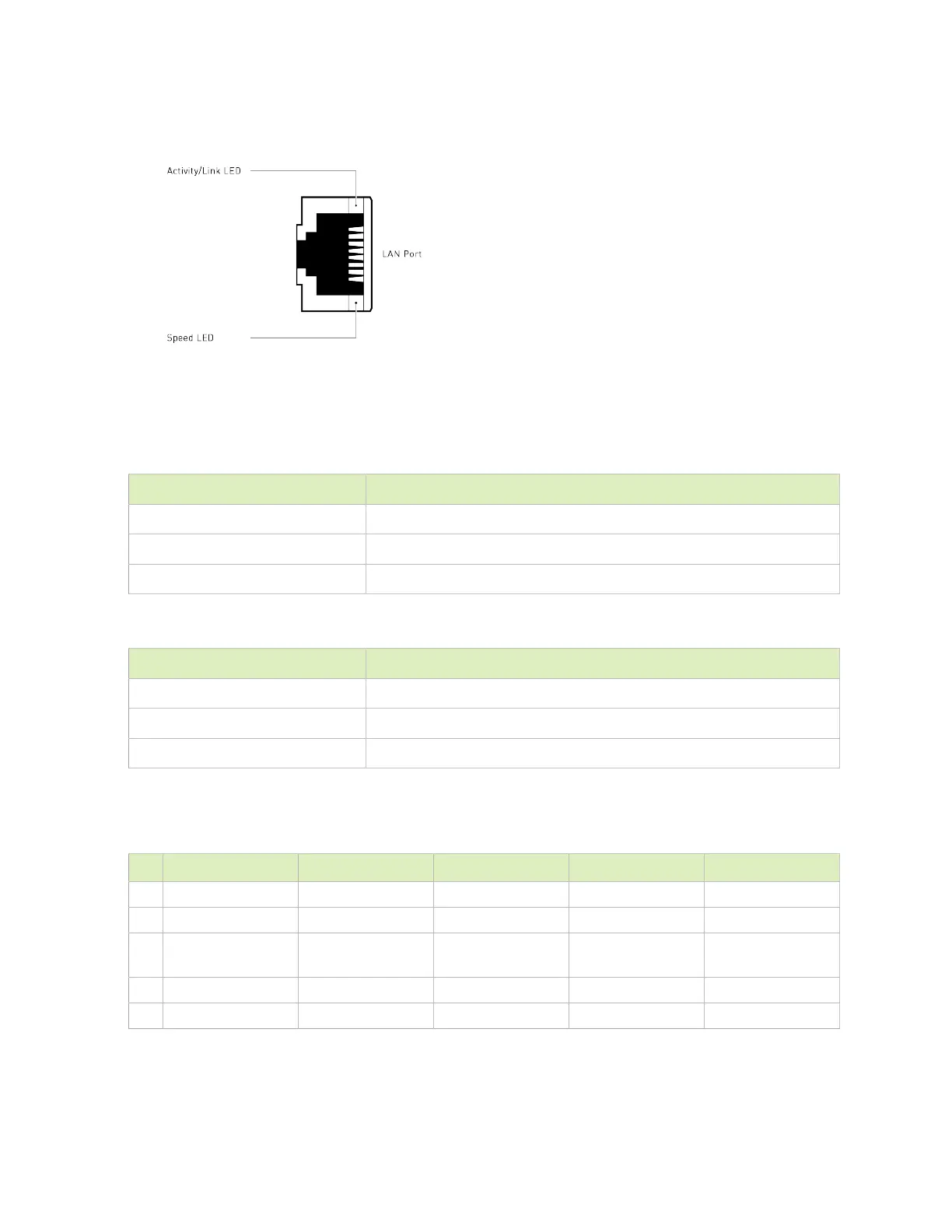

Speed LED
Status Description
Off 100 Mbps connection
Orange 1 Gbps connection
Green 10 Gbps connection
Activity/Link LED
Status Description
Off No link
Green Linked
Green (blinking) Data activity
B.4. Audio I/O Connections
ID Port Color 2-Channel 4-Channel 6-Channel 8-Channel
1 Pink Mic In Mic In Mic In Mic In
2 Black N/A Rear Speaker Rear Speaker Rear Speaker
3 Orange N/A N/A Center/
Subwoofer
Center/
Subwoofer
4 Light Blue Line In Line In Line In Side Speaker
5 Lime Green Line Out Front Speaker Front Speaker Front Speaker
