Fan

Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 115

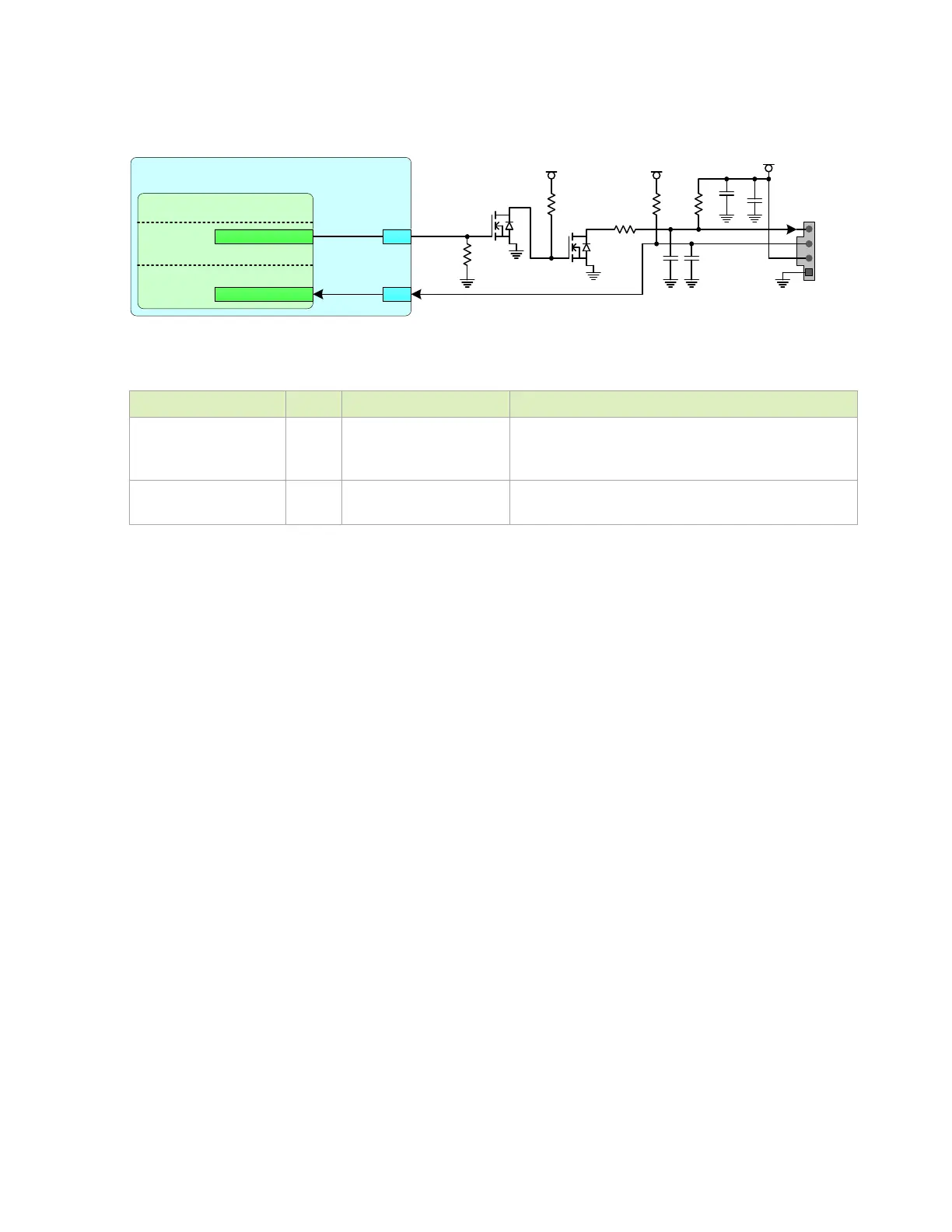

Figure 14-1. Jetson AGX Xavier Fan Connection Example

Jetson AGX Xavier

SoC – Fan

TOUCH_CLK

FAN_PWM

FAN_TACH

SOC_GPIO22

K62

E54

CAM

VDD_5V

VDD_1V8

10pF

10nF

10 0k Ω

10 kΩ

10uF

0.1uF

Fan

Header

10 0

5V_AO

4. 7kΩ

Table 14-2. Fan Signal Connections

Module Pin Name Type Termination Description

FAN_PWM O 100kΩ pulldown to GND. Fan Pulse Width Modulation: Connect through FET as

shown in the Jetson AGX Xavier Fan Connections

figure.

FAN_TACH I 100kohm pullup to

VDD_1V8

Fan Tachometer: Connect to TACH pin on fan

connector.
