Nvidia Jetson AGX Xavier Series

To Next Page

To Previous Page

Power

Jetson AGX Xavier Series Product DG-09840-001_v2.5 | 21

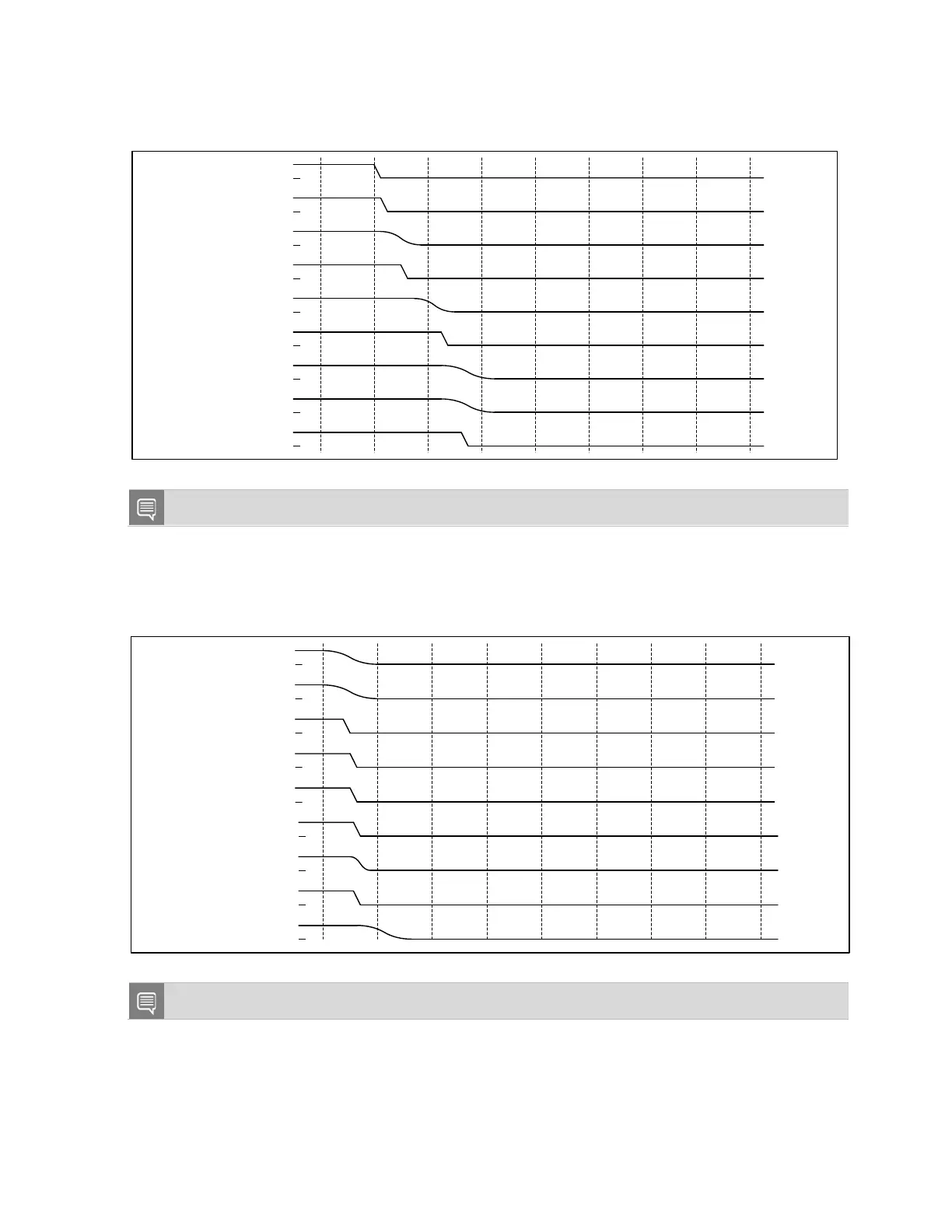

Figure 5-3. Power Down Sequence Controlled Case

CARRIER_POWER_ON

VDDIN_PWR_BAD_N

SYS_VIN_HV ( VCC_SRC)

Car ri er Board P ower

(VDD_1V8, VDD_3V3)

Module P ower

SYS_RESET_N

MODULE_POWER_ON

SYS_VIN_MV

VIN_PWR_ON

Note: SYS_VIN_MV must go below 100 mV before system can be powered on again.

Figure 5-4. Power Down Sequence Uncontrolled Case

CARRIER_POWER_ON

VDDIN_PWR_BAD_N

SYS_VIN_HV ( VCC_SRC)

Carrier Board System Power

Module Power

SYS_RESET_N

SYS_VIN_MV

MODULE_POWER_ON

VIN_PWR_ON

Note: SYS_VIN_MV must go below 100 mV before system can be powered on again.
