Clock tool example use case: Configure eMIOS to 60 MHz PLL1 with MPC5777C_264MHz
MPC5777C Clock Calculator Guide, Rev. 1, 12/2018
NXP Semiconductors 21

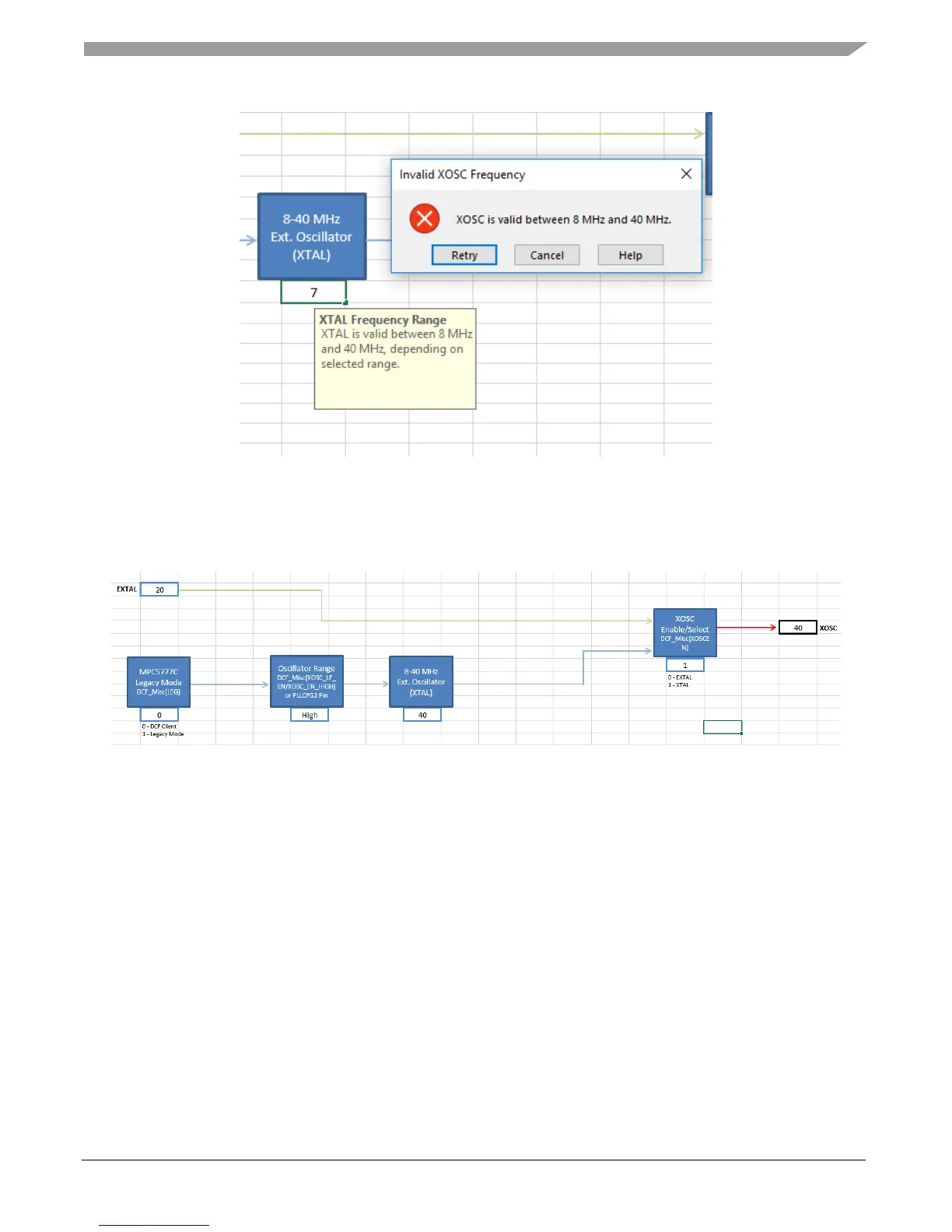

Figure 25. Invalid frequency input
Set MPC5777C to DCF Client mode, oscillator range to High, and XOSC frequency to 40 MHz. Next,
set the value of the XOSC Enable/Select block to 1 to select XTAL, the external oscillator, as shown in
the following figure.
Figure 26. Oscillator configuration
3.2.2.
Configure PLL0
Follow the XOSC path to PLL0 Clock Selector. Change the PLL0 Clock Selector value to 0, so that
PLL0 sources from XOSC, as shown in the figure below.
