PF 33 MT - PF 46 MT
Installation and connections
EN - 10
FIG. 3
1
1
4
1
2
3
5
1
5

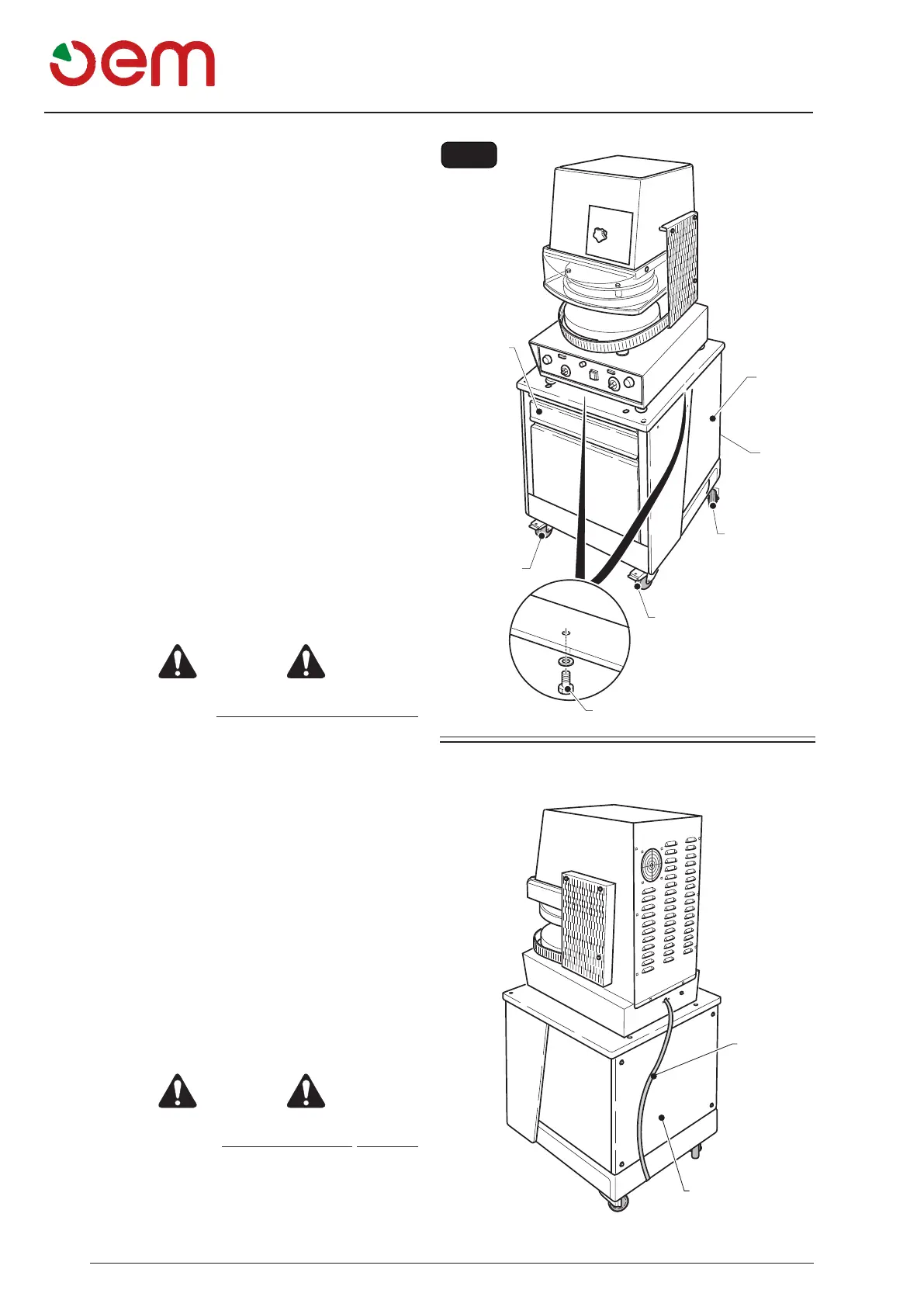

3.2.b - POSITIONING ON TRAILER-MOUNTED
SUPPORT (Fig. 3)
It is possible to place the machine on an appropriate
trailer – mounted support available on option, to position
the machine proceed as follows:
• Lock the wheels (1) of the trailer – mounted support
(2).
• Hoist the machine as shown in paragraph 3.1. and
locate it on the support (2).
• Remove the drawer (3) and the back (5) to easily reach
the lower supporting surface part.
• Fasten the machine to the support with the screws (4)
provided.
3.3 - ELECTRICAL CONNECTION
DANGER
• Thepowerfeedlineshouldbeprovidedwitha
suitable omnipolar DISCONNECTING SWITCH
(magnetothermic circuit-breaker and residual current
device) placed before the control unit main switch,
with a minimum contact opening of 3 mm.
• THELINEDISCONNECTING SWITCH must be
located near the machine so the operator can see
it at any moment while working on the machine or
performing maintenance or cleaning operations.
• Theearthingsystemshouldcomplywiththelocal
electric regulations in force.
• The electricpowercablesshouldcomply with
the maximum current required by the machine,
so that the total voltage drop at full charge will
be less than 2%.
• Thespecificationsoftheelectricpowerline
shouldcorrespondtothespecicationsofthe
identicationplateand to those mentionedin
thetechnicalspecicationstablethatcan be
consultedintherstpartofthisbooklet.
DANGER
Before connecting the machine with the electric
line, make sure that the DISCONNECTING SWITCH
is disconnected (line not energized), therefore:
• Connect the power cable (1) of the machine with the
disconnecting switch placed above.
