Photocell Rod Removal (AL9 Only)
(See Changing Shutter Motor Brushes)
Shrouding The Lamp
!
C YOU MUST SHROUD THE LAMP WHENEVER YOU
OPERATE THE AL 9 / AL 13 WITHOUT THE COVER
INSTALLED. Shrouding the lamp will keep you from being
exposed to the harmful unfiltered UV, and will also make
sure the cooling of the lamp is not effected. Shrouding is
done as follows:
• Remove the safety glass and the cover (see COVER REMOVAL).
• Place the AL 9 / AL 13 on a non-flammable surface.
!
C DO NOT PLACE ON WOOD, CARPET, OR ANY
SURFACE AFFECTED BY HEAT.
• Bypass the glass switches by wedging a small screwdriver between the
switches and the internal dividing wall.

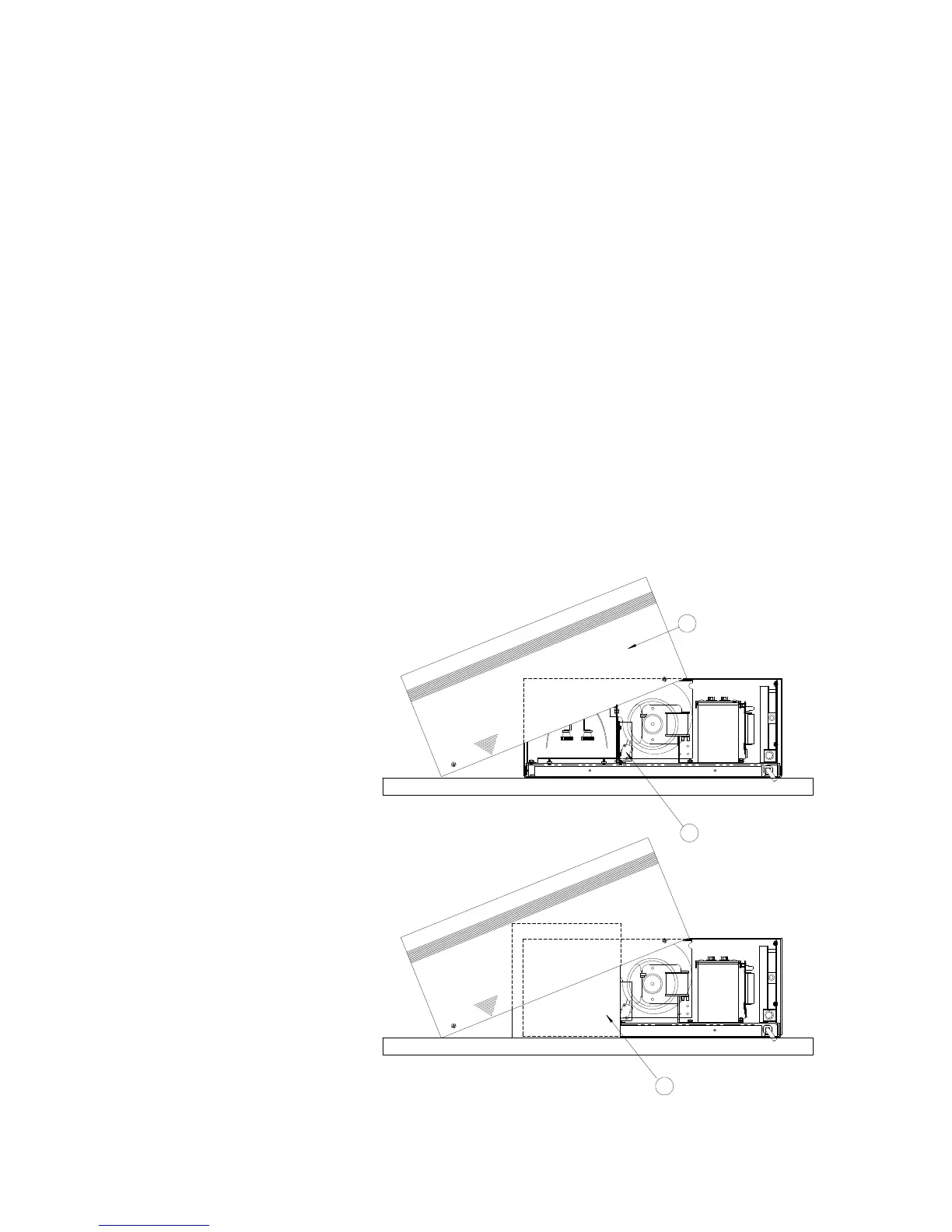

• Place the cover over the AL 9 / AL 13 about half way from end to end.
• Place a small piece of non-flammable material (a piece of plate material
works well) at each end of the lamp.
NON-FLAMMABLE SURFACE
5
NON-FLAMMABLE SURFACE
3
4
OLITE
AL13
OLITE
AL13
