Olec OLITE - 9. AL 13; AL 9 Product Information

94MS20 Rev. B4 9-1
9. AL 13 / AL 9

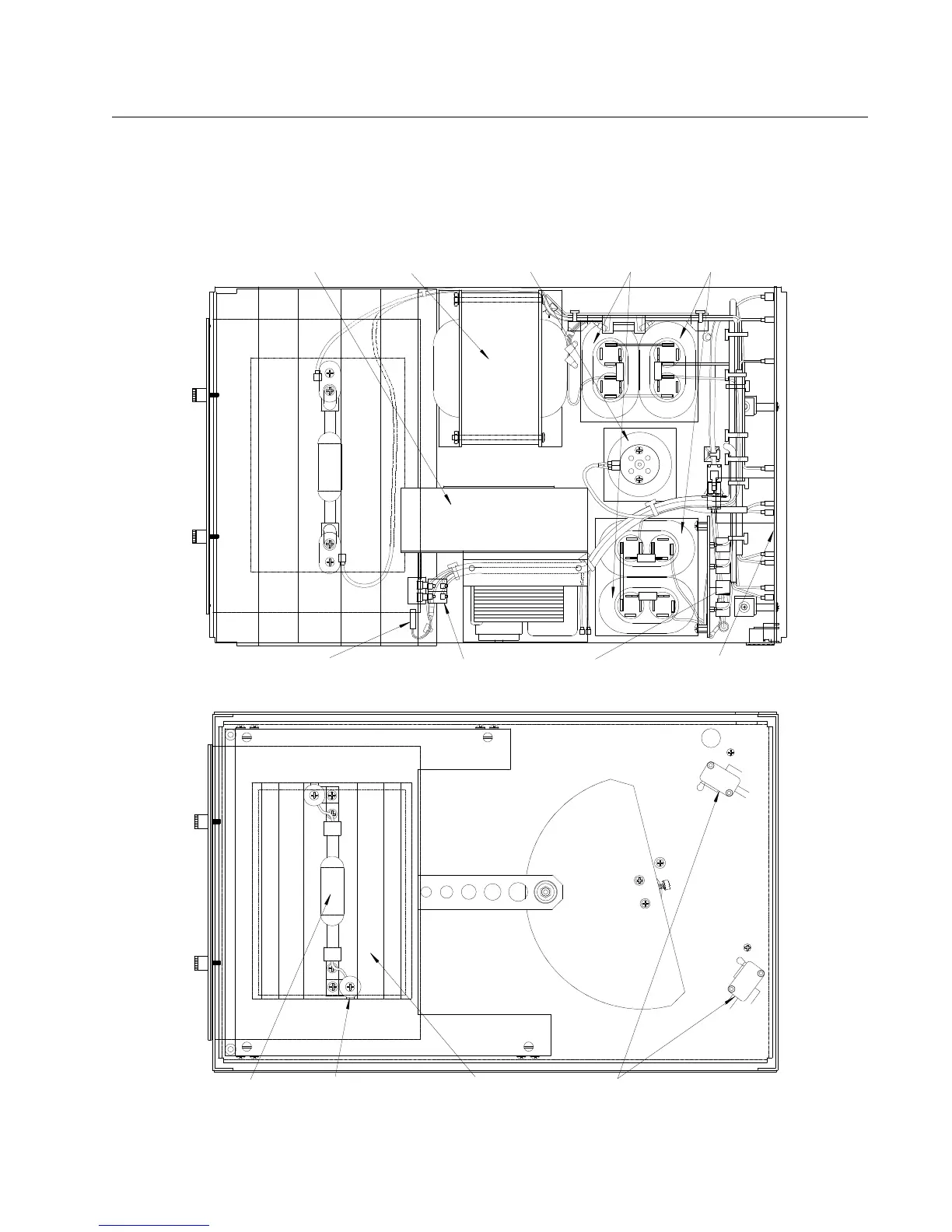

AL 13 Component Layout
*34CAP15-S
Capacitor
31MOT11
Shutter Motor
32BAL09
Ballast
39BLO03
Blower
56THM03
Thermostat
55SW02
Safety Interlock
Switches
64MV461V00
Resistor Board
93MV427C2
Control Board
63D0142B02
Lamp Support
Assembly
L900 / L902
Lamp
90RF13
Reflector
55SW02-1
Safety Interlock
Switches
*34CAP18-S
Capacitor
*Capacitors for 220~ units are different values see AL 13 (220~) Wiring Diagram for values.
