Olec OLITE - AL 9, al 9-PLUS Component Layout

94MS20 Rev. B4 9-5

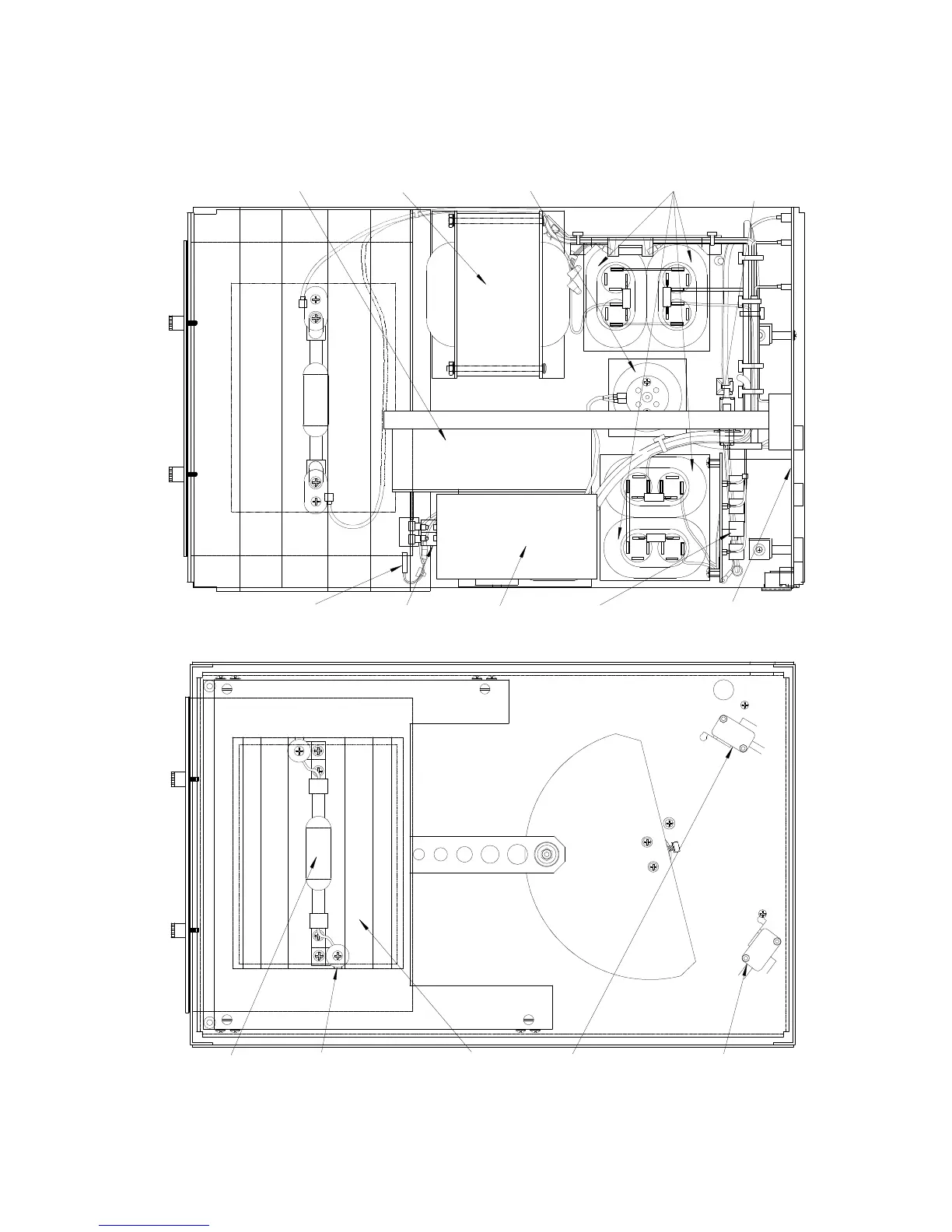

AL 9, AL 9-PLUS Component Layout
34CAP15-S
Capacitor
31MOT11
Shutter Motor
32BAL09
Ballast
39BLO03
Blower
56THM03
Thermostat
55SW02
Safety Interlock
Switches
64MV461V00
Resistor Board
64MV427-T for AL 9
Control Board
63D0142B02
Lamp Support
Assembly
L900 ONLY
Lamp
90RF13
Reflector
55SW02
Shutter Position
Switch
64CT474-T
Shutter Drive Board
(AL 9 Plus Only)
18D718-W
Photocell Rod
64MV427-Plus for AL 9-Plus
55SW02
Shutter Position
Switch (AL9-Pus Only)
