Olec OLITE - AL84-480 Ballast Wiring; AL 56 Ballast; Tap Switch Wiring

4-2 94MS20 Rev. B4

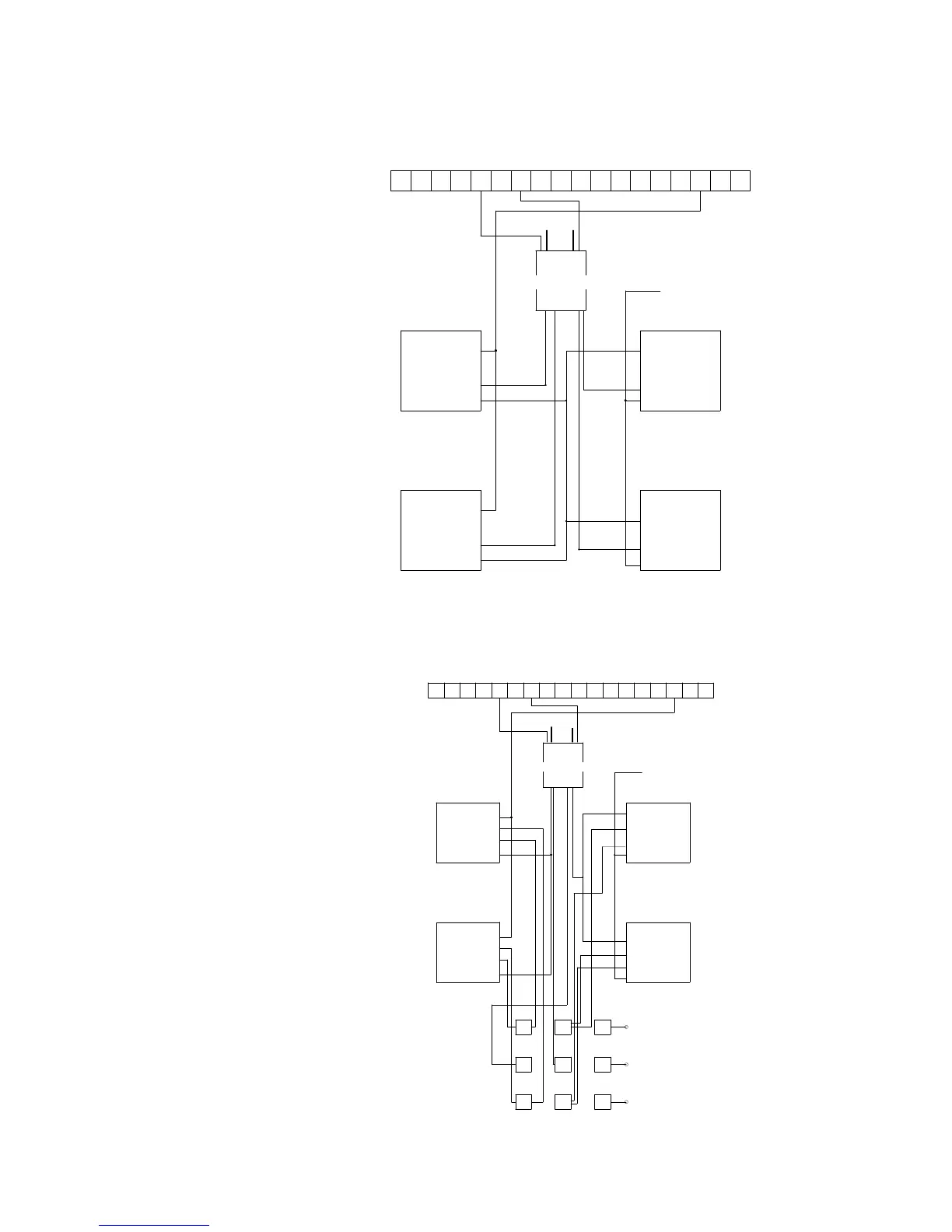

AL84-480 Ballast Wiring
COM
277
CAP
277
CAP
COM
BALLAST
#1
BALLAST
#2
L1 L2
T1 T2
RED
BLK
TERMINAL STRIP
CAP
277
COM
BALLAST
#4
COM
277
CAP
BALLAST
#3
NO. 29 (VIOLET).
NO. 20 (ORANGE
TO CAP. PACK).
AC IN
6 GA.
(BLK) (RED)
1618 17 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
CONTACTOR
AL 56 Ballast / Tap Switch Wiring
COM
208
240
CAP
240
CAP
208
COM
BALLAST
#1
BALLAST
#2
L1
ORANGE TO
CAP. PACK
L2
T1 T2
RED
BLK
CAP
240
208
COM
BALLAST
#4
COM
208
240
CAP
BALLAST
#3
1
2
3
4
5
6
10
11
12
VOLTAGE SELECTOR SWITCH
YELLOW TO
AUTOFORMER
RED TO FUSE
AUTOFORMER
240 VOLT
AC IN
10 GA
1618 17 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
TERMINAL STRIP
CONTACTOR
